BATTEN CC

(This product is now obsolete)

Batten with CCTK Selector

Where to Buy

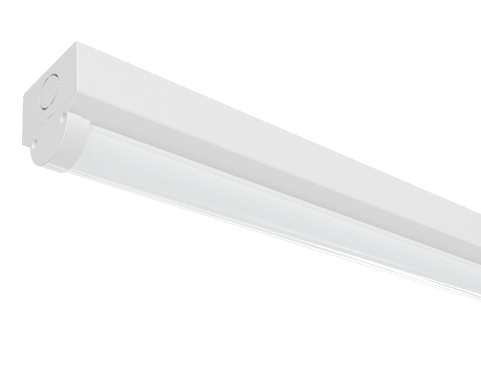

  • xcite batten cc
  • batten switch
  • xcite batten pir
  • xcite batten cc
  • batten switch
  • xcite batten pir
  • Ideal for replacement of linear fluorescent fixtures
  • Suitable for general domestic and commercial use
  • CCT [3000K/4000K/6000K] adjustable via 3-way selector switch
  • Available in 3 lengths
  • Steel body in white finish
  • High quality opal diffuser to reduce glare
  • Integral emergency option available
  • Integral high quality driver and LED module
  • Loop in/out mains connector
  • Conduit and BESA fixing points for end or rear cable entry
  • Up to 141 lumens per watt efficacy
Tri-Colour [3000K, 4000K, 6000K]30,000 Hours5 Years Warranty1 Year On-Site Warranty (T&C`s Apply)Maintained emergency 3hr (Option)
BATTEN CC Product Flyer Icon

Product Flyer
BATTEN CC Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet Light Planner Buy Now
XCSBT417CT 17W - 1200mm Batten CC [3000K/4000K/6000K] View View Buy
XCSBT417CTM3 17W - 1200mm Batten CC [3000K/4000K/6000K] - 3hrs Maintained Emergency View
XCSBT528CT 28W - 1500mm Batten CC [3000K/4000K/6000K] View View Buy
XCSBT528CTM3 28W - 1500mm Batten CC [3000K/4000K/6000K] - 3hrs Maintained Emergency View
XCSBT631CTM3 31W - 1800mm Batten CC [3000K/4000K/6000K] - 3hrs Maintained Emergency View
XCSBT631CT 31W - 1800mm Batten CC [3000K/4000K/6000K] View View Buy
XCSBT435CT 35W - 1200mm Batten CC [3000K/4000K/6000K] View Buy
XCSBT435CTM3 35W - 1200mm Batten CC [3000K/4000K/6000K] - 3hrs Maintained Emergency View
XCSBT555CT 55W - 1500mm Batten CC [3000K/4000K/6000K] View View
XCSBT555CTM3 55W - 1500mm Batten CC [3000K/4000K/6000K] - 3hrs Maintained Emergency View
XCSBT660CTM3 60W - 1800mm Batten CC [3000K/4000K/6000K] - 3hrs Maintained Emergency View
XCSBT660CT 60W - 1800mm Batten CC [3000K/4000K/6000K] View View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet Light Planner Buy Now
XCSBT417CT 17W - 1200mm Batten CC [3000K/4000K/6000K] 17 2400 141 View View Buy
XCSBT417CTM3 17W - 1200mm Batten CC [3000K/4000K/6000K] - 3hrs Maintained Emergency 17 2400 141 View
XCSBT528CT 28W - 1500mm Batten CC [3000K/4000K/6000K] 28 3700 132 View View Buy
XCSBT528CTM3 28W - 1500mm Batten CC [3000K/4000K/6000K] - 3hrs Maintained Emergency 28 3700 132 View
XCSBT631CTM3 31W - 1800mm Batten CC [3000K/4000K/6000K] - 3hrs Maintained Emergency 31 4200 135 View
XCSBT631CT 31W - 1800mm Batten CC [3000K/4000K/6000K] 31 4200 135 View View Buy
XCSBT435CT 35W - 1200mm Batten CC [3000K/4000K/6000K] 35 4300 123 View Buy
XCSBT435CTM3 35W - 1200mm Batten CC [3000K/4000K/6000K] - 3hrs Maintained Emergency 35 4300 123 View
XCSBT555CT 55W - 1500mm Batten CC [3000K/4000K/6000K] 55 6600 120 View View
XCSBT555CTM3 55W - 1500mm Batten CC [3000K/4000K/6000K] - 3hrs Maintained Emergency 55 6600 120 View
XCSBT660CTM3 60W - 1800mm Batten CC [3000K/4000K/6000K] - 3hrs Maintained Emergency 60 7400 123 View
XCSBT660CT 60W - 1800mm Batten CC [3000K/4000K/6000K] 60 7400 123 View View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description A
(mm)		 B
(mm)		 C
(mm)		 Fix Data sheet Light Planner Buy Now
XCSBT417CT 17W - 1200mm Batten CC [3000K/4000K/6000K] 1200 55 58 610 View View Buy
XCSBT417CTM3 17W - 1200mm Batten CC [3000K/4000K/6000K] - 3hrs Maintained Emergency 1200 55 58 610 View
XCSBT528CT 28W - 1500mm Batten CC [3000K/4000K/6000K] 1500 55 58 610 View View Buy
XCSBT528CTM3 28W - 1500mm Batten CC [3000K/4000K/6000K] - 3hrs Maintained Emergency 1500 55 58 610 View
XCSBT631CTM3 31W - 1800mm Batten CC [3000K/4000K/6000K] - 3hrs Maintained Emergency 1800 55 58 610 View
XCSBT631CT 31W - 1800mm Batten CC [3000K/4000K/6000K] 1800 55 58 610 View View Buy
XCSBT435CT 35W - 1200mm Batten CC [3000K/4000K/6000K] 1200 55 58 610 View Buy
XCSBT435CTM3 35W - 1200mm Batten CC [3000K/4000K/6000K] - 3hrs Maintained Emergency 1200 55 58 610 View
XCSBT555CT 55W - 1500mm Batten CC [3000K/4000K/6000K] 1500 55 58 610 View View
XCSBT555CTM3 55W - 1500mm Batten CC [3000K/4000K/6000K] - 3hrs Maintained Emergency 1500 55 58 610 View
XCSBT660CTM3 60W - 1800mm Batten CC [3000K/4000K/6000K] - 3hrs Maintained Emergency 1800 55 58 610 View
XCSBT660CT 60W - 1800mm Batten CC [3000K/4000K/6000K] 1800 55 58 610 View View Buy
BATTEN CC Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCSBT417CT 17W - 1200mm Batten CC [3000K/4000K/6000K] Energy Class B View Visit
XCSBT417CTM3 17W - 1200mm Batten CC [3000K/4000K/6000K] - 3hrs Maintained Emergency Energy Class B View Visit
XCSBT528CT 28W - 1500mm Batten CC [3000K/4000K/6000K] Energy Class B View Visit
XCSBT528CTM3 28W - 1500mm Batten CC [3000K/4000K/6000K] - 3hrs Maintained Emergency Energy Class B View Visit
XCSBT631CTM3 31W - 1800mm Batten CC [3000K/4000K/6000K] - 3hrs Maintained Emergency Energy Class B View Visit
XCSBT631CT 31W - 1800mm Batten CC [3000K/4000K/6000K] Energy Class B View Visit
XCSBT435CT 35W - 1200mm Batten CC [3000K/4000K/6000K] Energy Class B View Visit
XCSBT435CTM3 35W - 1200mm Batten CC [3000K/4000K/6000K] - 3hrs Maintained Emergency Energy Class B View Visit
XCSBT555CT 55W - 1500mm Batten CC [3000K/4000K/6000K] Energy Class B View Visit
XCSBT555CTM3 55W - 1500mm Batten CC [3000K/4000K/6000K] - 3hrs Maintained Emergency Energy Class B View Visit
XCSBT660CTM3 60W - 1800mm Batten CC [3000K/4000K/6000K] - 3hrs Maintained Emergency Energy Class B View Visit
XCSBT660CT 60W - 1800mm Batten CC [3000K/4000K/6000K] Energy Class B View Visit

BATTEN CC Line Drawing
