BULKHEAD CC

Circular Bulkhead with CCTK Selector

Where to Buy

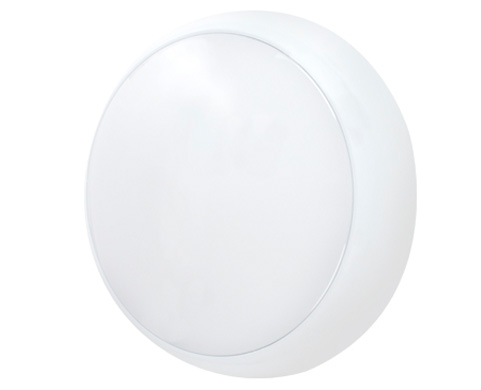

  • xcite bulkhead cc

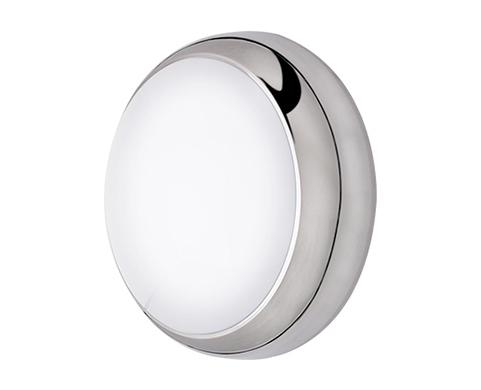

  • xcite bulkhead chrome
  • xcite bulkhead cc
  • xcite bulkhead chrome
  • Ideal for retrofit of existing 2D fixtures
  • Suitable for bathrooms or storerooms
  • CCT [3000K/4000K/6000K] adjustable via 3-way selector switch
  • Microwave movement sensor available
  • Polished Chrome finish available
  • Opal polycarbonate diffuser - TP[a]
  • Polycarbonate body
  • Integral emergency option available
  • Up to 92 lumens per watt efficacy
Tri-Colour [3000K, 4000K, 6000K]30,000 Hours5 Years Warranty1 Year On-Site Warranty (T&C`s Apply)IP65IK08Maintained emergency 3hr (Option)Microwave Sensor
BULKHEAD CC Product Flyer Icon

Product Flyer
BULKHEAD CC Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet Light Planner Buy Now
XCBH12CT 12W - Circular Bulkhead - IP65 - [3000K/4000K/6000K] - White View View Buy
XCBH12CTPC 12W - Circular Bulkhead - IP65 - [3000K/4000K/6000K] - Polished Chrome View Buy
XCBH12CTM3 12W - Circular Bulkhead - IP65 - 3hrs Maintained Emergency - [3000K/4000K/6000K] - White View Buy
XCBH12CTHFS 12W - Circular Bulkhead - IP65 - Microwave Sensor - [3000K/4000K/6000K] - White View Buy
XCBH12CTM3HFSPC 12W - Circular Bulkhead - IP65 - Microwave Sensor - 3hrs Maintained Emergency - [3000K/4000K/6000K] - Polished Chrome View
XCBH12CTM3PC 12W - Circular Bulkhead - IP65 - 3hrs Maintained Emergency - [3000K/4000K/6000K] - Polished Chrome View Buy
XCBH12CTM3HFS 12W - Circular Bulkhead - IP65 - Microwave Sensor - 3hrs Maintained Emergency - [3000K/4000K/6000K] - White View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet Light Planner Buy Now
XCBH12CT 12W - Circular Bulkhead - IP65 - [3000K/4000K/6000K] - White 12 1000-1100 92 View View Buy
XCBH12CTPC 12W - Circular Bulkhead - IP65 - [3000K/4000K/6000K] - Polished Chrome 12 1000-1100 92 View Buy
XCBH12CTM3 12W - Circular Bulkhead - IP65 - 3hrs Maintained Emergency - [3000K/4000K/6000K] - White 12 1000-1100 92 View Buy
XCBH12CTHFS 12W - Circular Bulkhead - IP65 - Microwave Sensor - [3000K/4000K/6000K] - White 12 1000-1100 92 View Buy
XCBH12CTM3HFSPC 12W - Circular Bulkhead - IP65 - Microwave Sensor - 3hrs Maintained Emergency - [3000K/4000K/6000K] - Polished Chrome 12 1000-1100 92 View
XCBH12CTM3PC 12W - Circular Bulkhead - IP65 - 3hrs Maintained Emergency - [3000K/4000K/6000K] - Polished Chrome 12 1000-1100 92 View Buy
XCBH12CTM3HFS 12W - Circular Bulkhead - IP65 - Microwave Sensor - 3hrs Maintained Emergency - [3000K/4000K/6000K] - White 12 1000-1100 92 View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description C
(mm)		 Dia.
(mm)		 Data sheet Light Planner Buy Now
XCBH12CT 12W - Circular Bulkhead - IP65 - [3000K/4000K/6000K] - White 110 330 View View Buy
XCBH12CTPC 12W - Circular Bulkhead - IP65 - [3000K/4000K/6000K] - Polished Chrome 110 330 View Buy
XCBH12CTM3 12W - Circular Bulkhead - IP65 - 3hrs Maintained Emergency - [3000K/4000K/6000K] - White 110 330 View Buy
XCBH12CTHFS 12W - Circular Bulkhead - IP65 - Microwave Sensor - [3000K/4000K/6000K] - White 110 330 View Buy
XCBH12CTM3HFSPC 12W - Circular Bulkhead - IP65 - Microwave Sensor - 3hrs Maintained Emergency - [3000K/4000K/6000K] - Polished Chrome 110 330 View
XCBH12CTM3PC 12W - Circular Bulkhead - IP65 - 3hrs Maintained Emergency - [3000K/4000K/6000K] - Polished Chrome 110 330 View Buy
XCBH12CTM3HFS 12W - Circular Bulkhead - IP65 - Microwave Sensor - 3hrs Maintained Emergency - [3000K/4000K/6000K] - White 110 330 View Buy

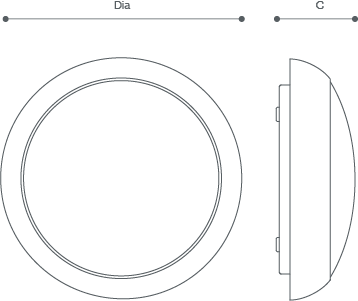

BULKHEAD CC Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCBH12CT 12W - Circular Bulkhead - IP65 - [3000K/4000K/6000K] - White Energy Class E View Visit
XCBH12CTPC 12W - Circular Bulkhead - IP65 - [3000K/4000K/6000K] - Polished Chrome Energy Class E View Visit
XCBH12CTM3 12W - Circular Bulkhead - IP65 - 3hrs Maintained Emergency - [3000K/4000K/6000K] - White Energy Class E View Visit
XCBH12CTHFS 12W - Circular Bulkhead - IP65 - Microwave Sensor - [3000K/4000K/6000K] - White Energy Class E View Visit
XCBH12CTM3HFSPC 12W - Circular Bulkhead - IP65 - Microwave Sensor - 3hrs Maintained Emergency - [3000K/4000K/6000K] - Polished Chrome Energy Class E View Visit
XCBH12CTM3PC 12W - Circular Bulkhead - IP65 - 3hrs Maintained Emergency - [3000K/4000K/6000K] - Polished Chrome Energy Class E View Visit
XCBH12CTM3HFS 12W - Circular Bulkhead - IP65 - Microwave Sensor - 3hrs Maintained Emergency - [3000K/4000K/6000K] - White Energy Class E View Visit

BULKHEAD CC Line Drawing
