CIRCULAR CABINET LIGHT

Circular Under Cabinet Downlight

  • LED circular under cabinet downlight
  • Suitable for kitchen or wardrobe applications
  • Can be surface or flush/recessed mounted
  • Complete with 0.5m of mains, 2 core cable
  • Pressed steel body
  • Frosted polycarbonate diffuser
  • Integral driver circuitry with mains input
  • Up to 67 lumens per watt efficacy

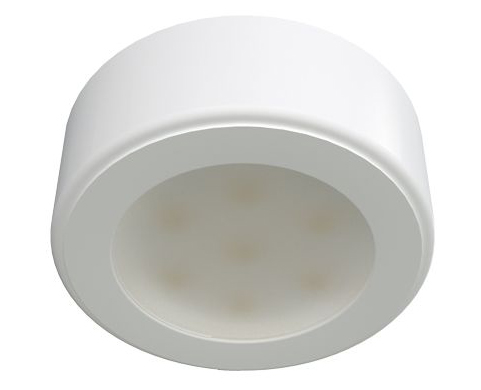

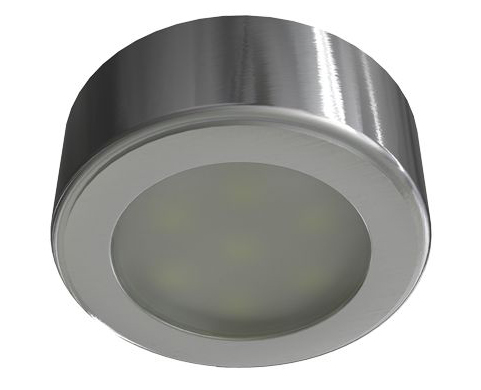

  • Available in white or satin nickel colour trims
  • Available in warm white [3000K] or neutral white [4000K]

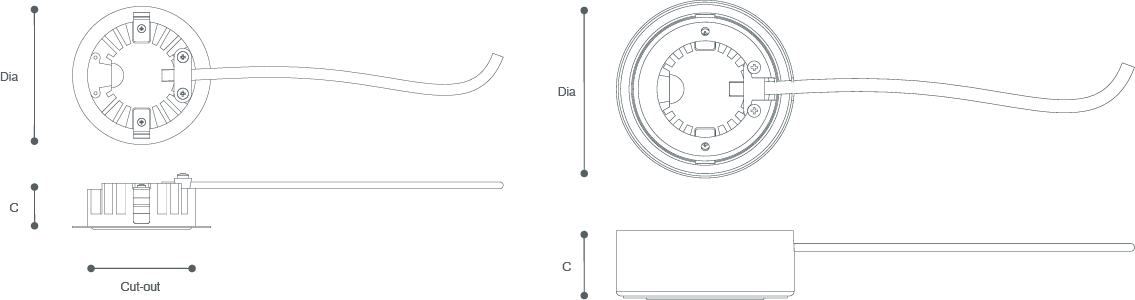

Note: Please note dimensions relate to the 'surface' fitting [WITH TRIM]. The dimensions [WITHOUT TRIM] for recessed install are [Cut-out. 60mm] [Dia. 68mm] [C. 23mm]

3000K - WW4000K - NW30,000 Hours3 Years Warranty
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":4000}
Order Code Description Data sheet Buy Now
XCCDL3NWW 3W - Circular Cabinet Downlight - IP20 - 4000K - White View
XCCDL3NWSN 3W - Circular Cabinet Downlight - IP20 - 4000K - Satin Nickel View Buy
XCCDL3WWW 3W - Circular Cabinet Downlight - IP20 - 3000K - White View
XCCDL3WWSN 3W - Circular Cabinet Downlight - IP20 - 3000K - Satin Nickel View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":4000}
Order Code Description W lm lm/W Data sheet Buy Now
XCCDL3NWW 3W - Circular Cabinet Downlight - IP20 - 4000K - White 3 200 67 View
XCCDL3NWSN 3W - Circular Cabinet Downlight - IP20 - 4000K - Satin Nickel 3 200 67 View Buy
XCCDL3WWW 3W - Circular Cabinet Downlight - IP20 - 3000K - White 3 200 67 View
XCCDL3WWSN 3W - Circular Cabinet Downlight - IP20 - 3000K - Satin Nickel 3 200 67 View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":4000}
Order Code Description C
(mm)
Cut Out
(mm)
Dia.
(mm)
Data sheet Buy Now
XCCDL3NWW 3W - Circular Cabinet Downlight - IP20 - 4000K - White 23 68 74 View
XCCDL3NWSN 3W - Circular Cabinet Downlight - IP20 - 4000K - Satin Nickel 23 68 74 View Buy
XCCDL3WWW 3W - Circular Cabinet Downlight - IP20 - 3000K - White 23 68 74 View
XCCDL3WWSN 3W - Circular Cabinet Downlight - IP20 - 3000K - Satin Nickel 23 68 74 View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":4000}
Order Code Description Energy Class ERP
Instructions
EPREL Site
XCCDL3NWW 3W - Circular Cabinet Downlight - IP20 - 4000K - White Energy Class F View Visit
XCCDL3NWSN 3W - Circular Cabinet Downlight - IP20 - 4000K - Satin Nickel Energy Class F View Visit
XCCDL3WWW 3W - Circular Cabinet Downlight - IP20 - 3000K - White Energy Class F View Visit
XCCDL3WWSN 3W - Circular Cabinet Downlight - IP20 - 3000K - Satin Nickel Energy Class F View Visit
