TRIANGLE CABINET LIGHT

Triangular Under Cabinet Downlight

  • LED Triangular under cabinet downlight suitable for kitchen areas
  • Surface mounted
  • Complete with 0.5m of mains, 2 core cable
  • Pressed steel body
  • Frosted polycarbonate diffuser
  • Integral driver circuitry with mains input

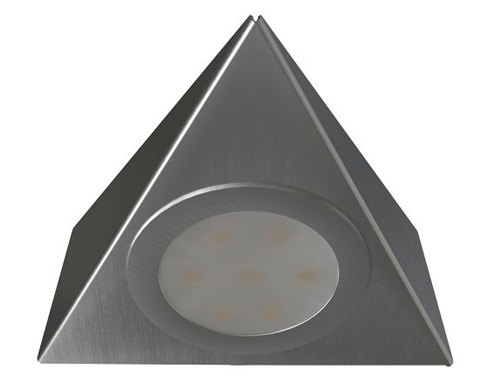

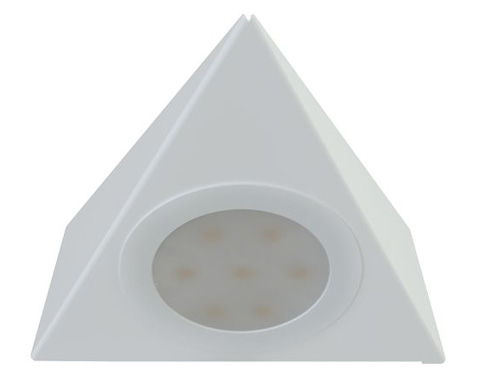

  • Available in white or satin nickel colour trims
  • Available in warm white [3000K] or neutral white [4000K]
3000K - WW4000K - NW30,000 Hours3 Years Warranty
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":4000}
Order Code Description Data sheet Buy Now
XCTDL3NWW 3W - Triangular Cabinet Light - IP20 - White - 4000K View Buy
XCTDL3NWSN 3W - Triangular Cabinet Light - IP20 - Satin Nickel - 4000K View Buy
XCTDL3WWW 3W - Triangular Cabinet Light - IP20 - White - 3000K View
XCTDL3WWSN 3W - Triangular Cabinet Light - IP20 - Satin Nickel - 3000K View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":4000}
Order Code Description W lm lm/W Data sheet Buy Now
XCTDL3NWW 3W - Triangular Cabinet Light - IP20 - White - 4000K 3 200 67 View Buy
XCTDL3NWSN 3W - Triangular Cabinet Light - IP20 - Satin Nickel - 4000K 3 200 67 View Buy
XCTDL3WWW 3W - Triangular Cabinet Light - IP20 - White - 3000K 3 200 67 View
XCTDL3WWSN 3W - Triangular Cabinet Light - IP20 - Satin Nickel - 3000K 3 200 67 View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":4000}

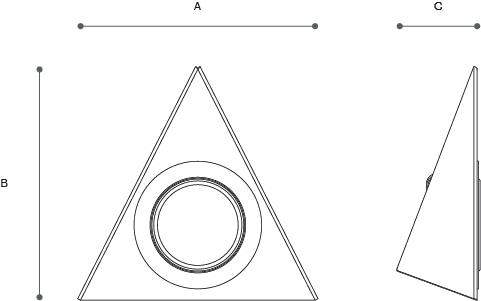

Order Code Description A
(mm)
B
(mm)
C
(mm)
Data sheet Buy Now
XCTDL3NWW 3W - Triangular Cabinet Light - IP20 - White - 4000K 124 124 40 View Buy
XCTDL3NWSN 3W - Triangular Cabinet Light - IP20 - Satin Nickel - 4000K 124 124 40 View Buy
XCTDL3WWW 3W - Triangular Cabinet Light - IP20 - White - 3000K 124 124 40 View
XCTDL3WWSN 3W - Triangular Cabinet Light - IP20 - Satin Nickel - 3000K 124 124 40 View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":4000}
Order Code Description Energy Class ERP
Instructions
EPREL Site
XCTDL3NWW 3W - Triangular Cabinet Light - IP20 - White - 4000K Energy Class F View Visit
XCTDL3NWSN 3W - Triangular Cabinet Light - IP20 - Satin Nickel - 4000K Energy Class F View Visit
XCTDL3WWW 3W - Triangular Cabinet Light - IP20 - White - 3000K Energy Class F View Visit
XCTDL3WWSN 3W - Triangular Cabinet Light - IP20 - Satin Nickel - 3000K Energy Class F View Visit
