DECO BH

Exterior Decorative Compact Circular Bulkhead

Where to Buy

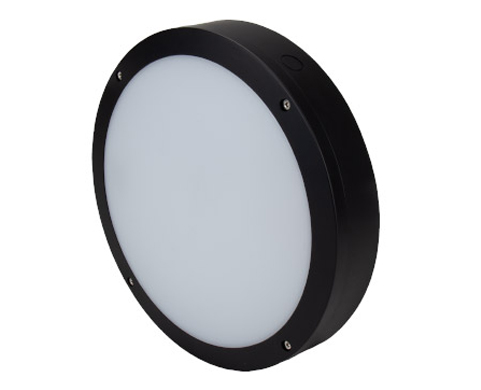

  • xcite deco bh

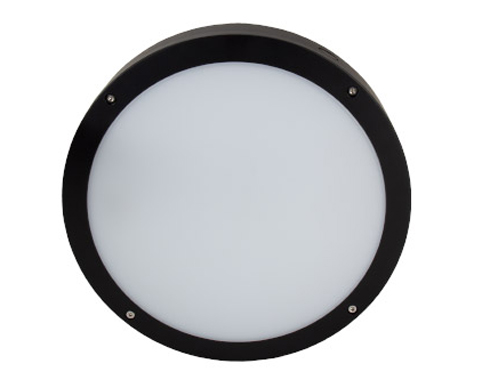

  • xcite deco bh front
  • xcite deco bh
  • xcite deco bh front
  • Ideal for retrofit of existing 2D fixtures
  • Suitable for exterior use, outdoor or walkways
  • Choice of plain or eyelid optic
  • Polycarbonate body
  • Opal diffuser
  • Integral emergency option available
  • Up to 109 lumens per watt efficacy
  • Supplied as standard with neutral white [4000K] LED
4000K - NW30,000 Hours3 Years WarrantyIP65IK10Maintained emergency 3hr (Option)Photocell
DECO BH Product Flyer Icon

Product Flyer
DECO BH Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet Light Planner Buy Now
XCBD11NWPC 11W - Decorative Circular Bulkhead IP65 - Opal Diffuser - 4000K View View
XCBD11NWM3 11W - Decorative Circular Bulkhead IP65 - Opal Diffuser - 3hrs Maintained Emergency - 4000K View Buy
XCBD11NW 11W - Decorative Circular Bulkhead IP65 - Opal Diffuser - 4000K View View Buy
XCBD11NWM3PC 11W - Decorative Circular Bulkhead IP65 - Opal Diffuser - Photocell - 3hrs Maintained Emergency - 4000K View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet Light Planner Buy Now
XCBD11NWPC 11W - Decorative Circular Bulkhead IP65 - Opal Diffuser - 4000K 11 1200 109 View View
XCBD11NWM3 11W - Decorative Circular Bulkhead IP65 - Opal Diffuser - 3hrs Maintained Emergency - 4000K 11 1200 109 View Buy
XCBD11NW 11W - Decorative Circular Bulkhead IP65 - Opal Diffuser - 4000K 11 1200 109 View View Buy
XCBD11NWM3PC 11W - Decorative Circular Bulkhead IP65 - Opal Diffuser - Photocell - 3hrs Maintained Emergency - 4000K 11 1200 109 View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description C
(mm)		 Dia.
(mm)		 Data sheet Light Planner Buy Now
XCBD11NWPC 11W - Decorative Circular Bulkhead IP65 - Opal Diffuser - 4000K 60 275 View View
XCBD11NWM3 11W - Decorative Circular Bulkhead IP65 - Opal Diffuser - 3hrs Maintained Emergency - 4000K 60 275 View Buy
XCBD11NW 11W - Decorative Circular Bulkhead IP65 - Opal Diffuser - 4000K 60 275 View View Buy
XCBD11NWM3PC 11W - Decorative Circular Bulkhead IP65 - Opal Diffuser - Photocell - 3hrs Maintained Emergency - 4000K 60 275 View

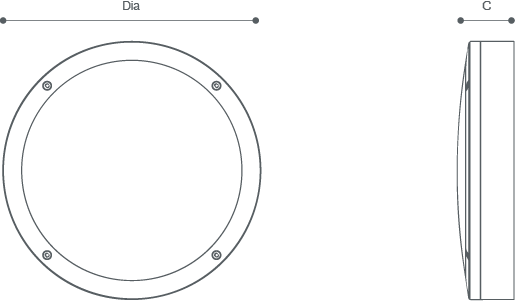

DECO BH Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCBD11NWPC 11W - Decorative Circular Bulkhead IP65 - Opal Diffuser - 4000K Energy Class C View Visit
XCBD11NWM3 11W - Decorative Circular Bulkhead IP65 - Opal Diffuser - 3hrs Maintained Emergency - 4000K Energy Class C View Visit
XCBD11NW 11W - Decorative Circular Bulkhead IP65 - Opal Diffuser - 4000K Energy Class C View Visit
XCBD11NWM3PC 11W - Decorative Circular Bulkhead IP65 - Opal Diffuser - Photocell - 3hrs Maintained Emergency - 4000K Energy Class C View Visit

DECO BH Line Drawing
