DOWNLIGHT BL

Recessed Backlit Downlight

Where to Buy

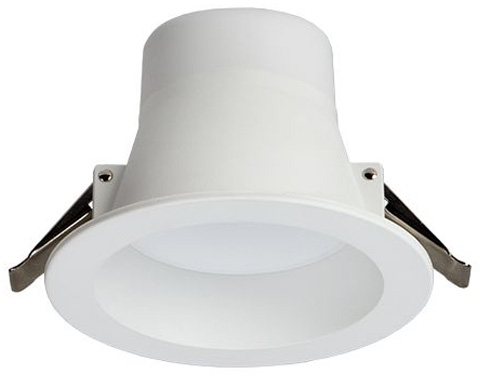

  • xcite downlight bl

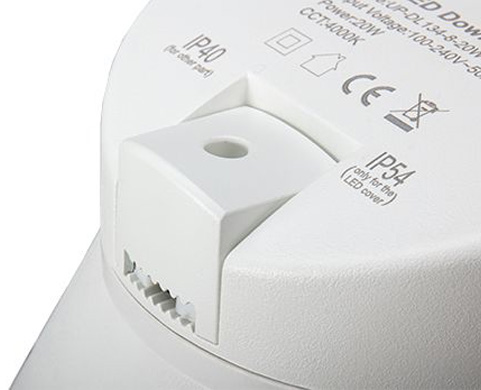

  • xcite downlight bl top

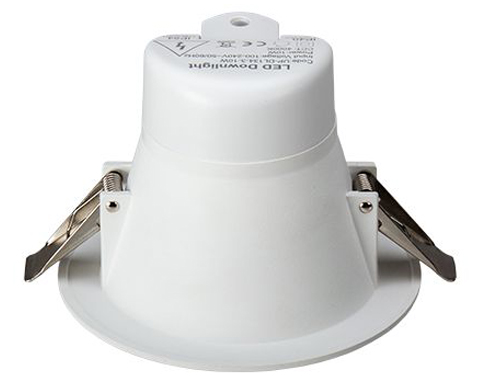

  • xcite downlight bl 10w top

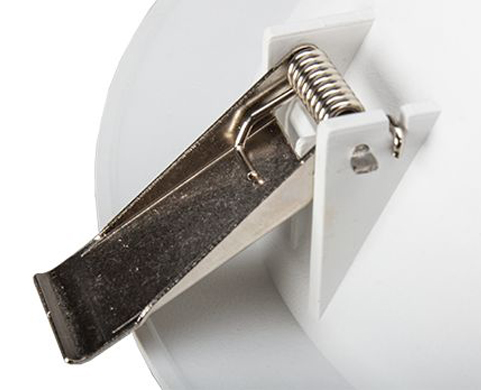

  • xcite downlight bl 20w spring clip
  • xcite downlight bl
  • xcite downlight bl top
  • xcite downlight bl 10w top
  • xcite downlight bl 20w spring clip
  • Suitable for corridors, reception areas, indoor circulation spaces, retail, toilets and shower rooms
  • Available in 2 different outputs
  • More consistent and uniform appearance than traditional edge-lit panels or downlights
  • Plastic housing and reflector
  • Integral driver
  • Loop in/out 2-pole terminal
  • IP54 Rated
  • Up to 100 lumens per watt efficacy
  • Available in warm white [3000K] or neutral white [4000K]
3000K - WW4000K - NW30,000 Hours3 Years WarrantyIP54IK03
DOWNLIGHT BL Product Flyer Icon

Product Flyer
DOWNLIGHT BL Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":4000}
Order Code Description Data sheet Light Planner Buy Now
XCBDL10WW 10W - Recessed Backlit Downlight - 3000K View View Buy
XCBDL10NW 10W - Recessed Backlit Downlight - 4000K View View Buy
XCBDL20WW 20W - Recessed Backlit Downlight - 3000K View View Buy
XCBDL20NW 20W - Recessed Backlit Downlight - 4000K View View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":4000}
Order Code Description W lm lm/W Data sheet Light Planner Buy Now
XCBDL10WW 10W - Recessed Backlit Downlight - 3000K 10 700 70 View View Buy
XCBDL10NW 10W - Recessed Backlit Downlight - 4000K 10 850 85 View View Buy
XCBDL20WW 20W - Recessed Backlit Downlight - 3000K 20 1900 95 View View Buy
XCBDL20NW 20W - Recessed Backlit Downlight - 4000K 20 2000 100 View View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":4000}
Order Code Description C
(mm)		 Cut Out
(mm)		 Dia.
(mm)		 Data sheet Light Planner Buy Now
XCBDL10WW 10W - Recessed Backlit Downlight - 3000K 82 90 115 View View Buy
XCBDL10NW 10W - Recessed Backlit Downlight - 4000K 82 90 115 View View Buy
XCBDL20WW 20W - Recessed Backlit Downlight - 3000K 130 200 240 View View Buy
XCBDL20NW 20W - Recessed Backlit Downlight - 4000K 130 200 240 View View Buy
DOWNLIGHT BL Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":4000}
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCBDL10WW 10W - Recessed Backlit Downlight - 3000K Energy Class E View Visit
XCBDL10NW 10W - Recessed Backlit Downlight - 4000K Energy Class E View Visit
XCBDL20WW 20W - Recessed Backlit Downlight - 3000K Energy Class D View Visit
XCBDL20NW 20W - Recessed Backlit Downlight - 4000K Energy Class D View Visit

DOWNLIGHT BL Line Drawing
