FLOODLIGHT CC

CCTK Adjustable Floodlight

Where to Buy

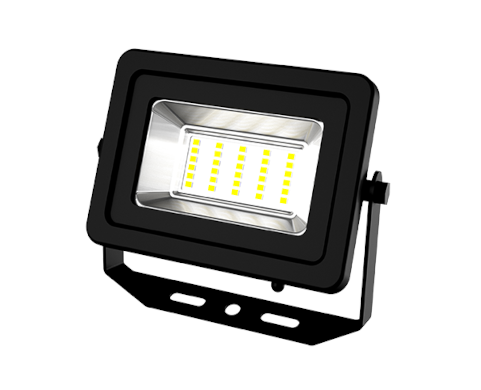

  • xcite floodlight cc 10w black

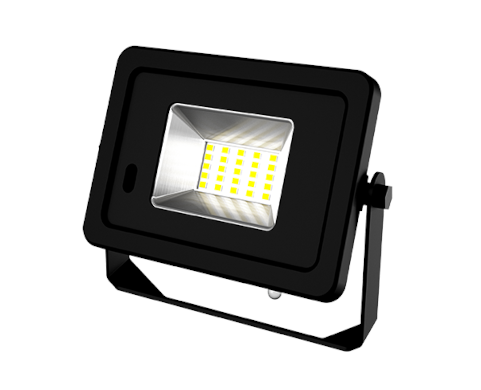

  • xcite floodlight cc 10w black ms

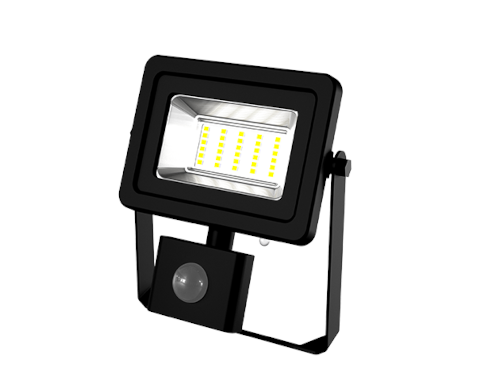

  • xcite floodlight cc 10w black pir

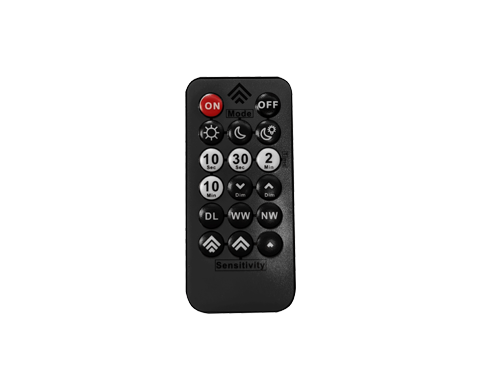

  • xcite floodlight cc remote

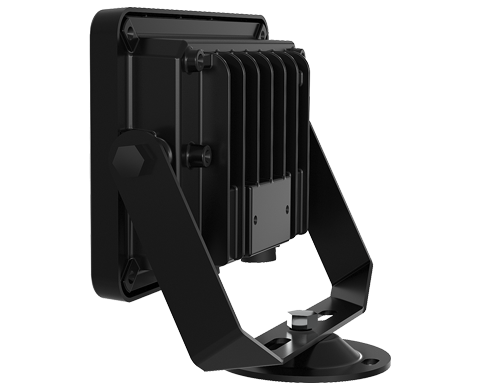

  • xcite floodlight cc bracket rear
  • xcite floodlight cc bracket
  • xcite floodlight cc 10w black
  • xcite floodlight cc 10w black ms
  • xcite floodlight cc 10w black pir
  • xcite floodlight cc remote
  • xcite floodlight cc bracket rear
  • xcite floodlight cc bracket
  • Ideal for retrofit of existing halogen fixtures, lighting buildings, car parks or doorways
  • CCT [3000K/4000K/6000K] adjustable via 3-way selector switch
  • Available in 4 different outputs
  • Available with high performance PIR or microwave detector
  • High quality toughened safety glass
  • Supplied with stirrup and 1m of flex for column, bracket or surface fix
  • Die-cast aluminium body finished with black marine grade paint finish
  • Weatherproof IP65 construction
  • CRI: Ra>80
  • Up to 117 lumens per watt efficacy
Tri-Colour [3000K, 4000K, 6000K]30,000 Hours3 Years WarrantyIP65IK08PIR Sensor
FLOODLIGHT CC Product Flyer Icon

Product Flyer
FLOODLIGHT CC Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet Buy Now
XCFC10CT 10W - Floodlight - [3000K/4000K/6000K] View Buy
XCFC20CT 20W - Floodlight - [3000K/4000K/6000K] View Buy
XCFC30CT 30W - Floodlight - [3000K/4000K/6000K] View Buy
XCFC50CT 50W - Floodlight - [3000K/4000K/6000K] View Buy
XCFC10CTMS 10W - Floodlight - Microwave Sensor - [3000K/4000K/6000K] View Buy
XCFC10CTP 10W - Floodlight - PIR - [3000K/4000K/6000K] View Buy
XCFC20CTMS 20W - Floodlight - Microwave Sensor - [3000K/4000K/6000K] View Buy
XCFC20CTP 20W - Floodlight - PIR - [3000K/4000K/6000K] View Buy
XCFC30CTMS 30W - Floodlight - Microwave Sensor - [3000K/4000K/6000K] View Buy
XCFC30CTP 30W - Floodlight - PIR - [3000K/4000K/6000K] View Buy
XCFC50CTMS 50W - Floodlight - Microwave Sensor - [3000K/4000K/6000K] View Buy
XCFC50CTP 50W - Floodlight - PIR - [3000K/4000K/6000K] View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet Buy Now
XCFC10CT 10W - Floodlight - [3000K/4000K/6000K] 10 1000 100 View Buy
XCFC20CT 20W - Floodlight - [3000K/4000K/6000K] 20 2000 100 View Buy
XCFC30CT 30W - Floodlight - [3000K/4000K/6000K] 30 3500 117 View Buy
XCFC50CT 50W - Floodlight - [3000K/4000K/6000K] 50 5500 110 View Buy
XCFC10CTMS 10W - Floodlight - Microwave Sensor - [3000K/4000K/6000K] 10 1000 100 View Buy
XCFC10CTP 10W - Floodlight - PIR - [3000K/4000K/6000K] 10 1000 100 View Buy
XCFC20CTMS 20W - Floodlight - Microwave Sensor - [3000K/4000K/6000K] 20 2000 100 View Buy
XCFC20CTP 20W - Floodlight - PIR - [3000K/4000K/6000K] 20 2000 100 View Buy
XCFC30CTMS 30W - Floodlight - Microwave Sensor - [3000K/4000K/6000K] 30 3500 117 View Buy
XCFC30CTP 30W - Floodlight - PIR - [3000K/4000K/6000K] 30 3500 117 View Buy
XCFC50CTMS 50W - Floodlight - Microwave Sensor - [3000K/4000K/6000K] 50 5500 110 View Buy
XCFC50CTP 50W - Floodlight - PIR - [3000K/4000K/6000K] 50 5500 110 View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description A
(mm)		 B
(mm)		 C
(mm)		 Data sheet Buy Now
XCFC10CT 10W - Floodlight - [3000K/4000K/6000K] 164 129 39 View Buy
XCFC20CT 20W - Floodlight - [3000K/4000K/6000K] 208 159 39 View Buy
XCFC30CT 30W - Floodlight - [3000K/4000K/6000K] 237 186 39 View Buy
XCFC50CT 50W - Floodlight - [3000K/4000K/6000K] 237 186 39 View Buy
XCFC10CTMS 10W - Floodlight - Microwave Sensor - [3000K/4000K/6000K] 164 129 39 View Buy
XCFC10CTP 10W - Floodlight - PIR - [3000K/4000K/6000K] 164 170 51 View Buy
XCFC20CTMS 20W - Floodlight - Microwave Sensor - [3000K/4000K/6000K] 208 159 39 View Buy
XCFC20CTP 20W - Floodlight - PIR - [3000K/4000K/6000K] 208 207 52 View Buy
XCFC30CTMS 30W - Floodlight - Microwave Sensor - [3000K/4000K/6000K] 237 186 39 View Buy
XCFC30CTP 30W - Floodlight - PIR - [3000K/4000K/6000K] 237 233 53 View Buy
XCFC50CTMS 50W - Floodlight - Microwave Sensor - [3000K/4000K/6000K] 237 186 39 View Buy
XCFC50CTP 50W - Floodlight - PIR - [3000K/4000K/6000K] 237 233 53 View Buy

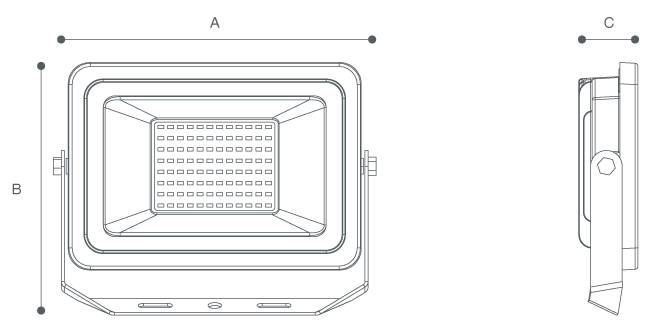

FLOODLIGHT CC Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCFC10CT 10W - Floodlight - [3000K/4000K/6000K] Energy Class E View Visit
XCFC20CT 20W - Floodlight - [3000K/4000K/6000K] Energy Class D View Visit
XCFC30CT 30W - Floodlight - [3000K/4000K/6000K] Energy Class D View Visit
XCFC50CT 50W - Floodlight - [3000K/4000K/6000K] Energy Class D View Visit
XCFC10CTMS 10W - Floodlight - Microwave Sensor - [3000K/4000K/6000K] Energy Class E View Visit
XCFC10CTP 10W - Floodlight - PIR - [3000K/4000K/6000K] Energy Class E View Visit
XCFC20CTMS 20W - Floodlight - Microwave Sensor - [3000K/4000K/6000K] Energy Class D View Visit
XCFC20CTP 20W - Floodlight - PIR - [3000K/4000K/6000K] Energy Class D View Visit
XCFC30CTMS 30W - Floodlight - Microwave Sensor - [3000K/4000K/6000K] Energy Class D View Visit
XCFC30CTP 30W - Floodlight - PIR - [3000K/4000K/6000K] Energy Class D View Visit
XCFC50CTMS 50W - Floodlight - Microwave Sensor - [3000K/4000K/6000K] Energy Class D View Visit
XCFC50CTP 50W - Floodlight - PIR - [3000K/4000K/6000K] Energy Class D View Visit

FLOODLIGHT CC Line Drawing
