FRD MINI

Recessed Mini Fire Rated Downlight

Where to Buy

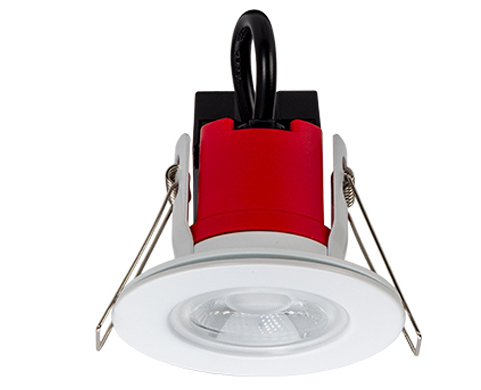

  • xcite frd mini w
  • xcite frd mini sn

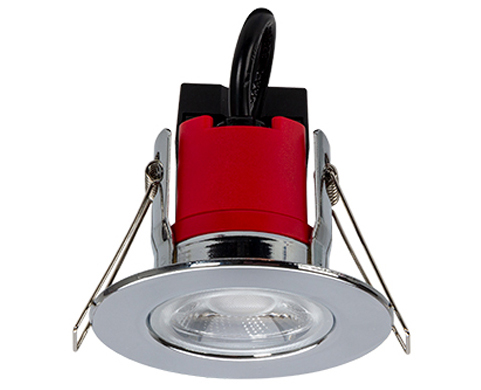

  • xcite frd mini pc
  • xcite frd mini w
  • xcite frd mini sn
  • xcite frd mini pc
  • Compact fire rated downlight with AC on board driver technology
  • Dimmable as standard
  • Loop in/out mains connections with integrated driver
  • Convert to larger sized cut outs with the Conversion Plates
  • 30, 60 & 90 minute fire rating with solid timber joists
  • 30 minute fire rating with Staircraft I-Joist and METAL WEB Joist [Compatibility Matrix]
  • Steel body providing a high level of fire protection in accordance with Building Regulations Part B
  • White, Matt White, Satin Nickel or Polished Chrome Finish
  • Up to 90 lumens per watt efficacy
  • Available in warm white [3000K] or neutral white [4000K]
3000K - WW4000K - NW30,000 Hours3 Years WarrantyIP65IK03Fire Rated [30,60,90 minute fire rating with solid timber joists]Fire Rated I-Joist [30 minute fire rating]Fire Rated Metal Web I-Joist [30 minute fire rating]Dimmable
FRD MINI Product Flyer Icon

Product Flyer
FRD MINI Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":4000}
Order Code Description Data sheet Light Planner Buy Now
XCFRA5WWW 5W - Fire Rated Recessed Mini Downlight - 3000K - White View View
XCFRA5NWW 5W - Fire Rated Recessed Mini Downlight - 4000K - White View View
XCFRA5WWSN 5W - Fire Rated Recessed Mini Downlight - 3000K - Satin Nickel View View
XCFRA5NWSN 5W - Fire Rated Recessed Mini Downlight - 4000K - Satin Nickel View View
XCFRA5WWMW 5W - Fire Rated Recessed Mini Downlight - 3000K - Matt White View Buy
XCFRA5NWMW 5W - Fire Rated Recessed Mini Downlight - 4000K - Matt White View Buy
XCFRA5WWPC 5W - Fire Rated Recessed Mini Downlight - 3000K - Polished Chrome View View Buy
XCFRA5NWPC 5W - Fire Rated Recessed Mini Downlight - 4000K - Polished Chrome View View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":4000}
Order Code Description W lm lm/W Data sheet Light Planner Buy Now
XCFRA5WWW 5W - Fire Rated Recessed Mini Downlight - 3000K - White 5 400 80 View View
XCFRA5NWW 5W - Fire Rated Recessed Mini Downlight - 4000K - White 5 450 90 View View
XCFRA5WWSN 5W - Fire Rated Recessed Mini Downlight - 3000K - Satin Nickel 5 400 80 View View
XCFRA5NWSN 5W - Fire Rated Recessed Mini Downlight - 4000K - Satin Nickel 5 450 90 View View
XCFRA5WWMW 5W - Fire Rated Recessed Mini Downlight - 3000K - Matt White 5 400 80 View Buy
XCFRA5NWMW 5W - Fire Rated Recessed Mini Downlight - 4000K - Matt White 5 450 90 View Buy
XCFRA5WWPC 5W - Fire Rated Recessed Mini Downlight - 3000K - Polished Chrome 5 400 80 View View Buy
XCFRA5NWPC 5W - Fire Rated Recessed Mini Downlight - 4000K - Polished Chrome 5 450 90 View View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":4000}
Order Code Description C
(mm)		 Cut Out
(mm)		 Dia.
(mm)		 Data sheet Light Planner Buy Now
XCFRA5WWW 5W - Fire Rated Recessed Mini Downlight - 3000K - White 80 60 80 View View
XCFRA5NWW 5W - Fire Rated Recessed Mini Downlight - 4000K - White 80 60 80 View View
XCFRA5WWSN 5W - Fire Rated Recessed Mini Downlight - 3000K - Satin Nickel 80 60 80 View View
XCFRA5NWSN 5W - Fire Rated Recessed Mini Downlight - 4000K - Satin Nickel 80 60 80 View View
XCFRA5WWMW 5W - Fire Rated Recessed Mini Downlight - 3000K - Matt White 80 60 80 View Buy
XCFRA5NWMW 5W - Fire Rated Recessed Mini Downlight - 4000K - Matt White 80 60 80 View Buy
XCFRA5WWPC 5W - Fire Rated Recessed Mini Downlight - 3000K - Polished Chrome 80 60 80 View View Buy
XCFRA5NWPC 5W - Fire Rated Recessed Mini Downlight - 4000K - Polished Chrome 80 60 80 View View

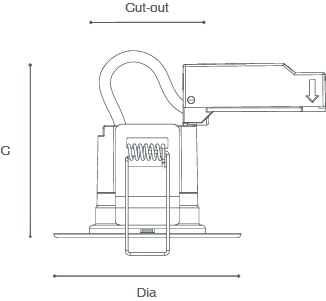

FRD MINI Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":4000}
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCFRA5WWW 5W - Fire Rated Recessed Mini Downlight - 3000K - White Energy Class D View Visit
XCFRA5NWW 5W - Fire Rated Recessed Mini Downlight - 4000K - White Energy Class D View Visit
XCFRA5WWSN 5W - Fire Rated Recessed Mini Downlight - 3000K - Satin Nickel Energy Class D View Visit
XCFRA5NWSN 5W - Fire Rated Recessed Mini Downlight - 4000K - Satin Nickel Energy Class D View Visit
XCFRA5WWMW 5W - Fire Rated Recessed Mini Downlight - 3000K - Matt White Energy Class D View Visit
XCFRA5NWMW 5W - Fire Rated Recessed Mini Downlight - 4000K - Matt White Energy Class D View Visit
XCFRA5WWPC 5W - Fire Rated Recessed Mini Downlight - 3000K - Polished Chrome Energy Class D View Visit
XCFRA5NWPC 5W - Fire Rated Recessed Mini Downlight - 4000K - Polished Chrome Energy Class D View Visit

FRD MINI Line Drawing
