FRD MINI CC
(This product is now obsolete)

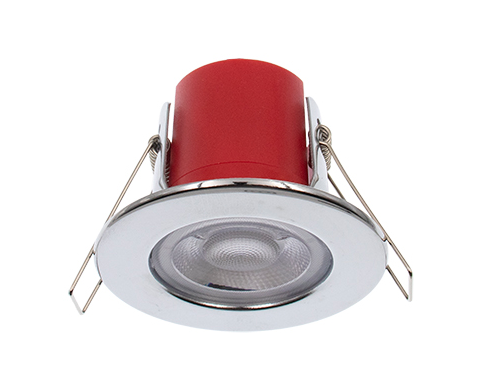

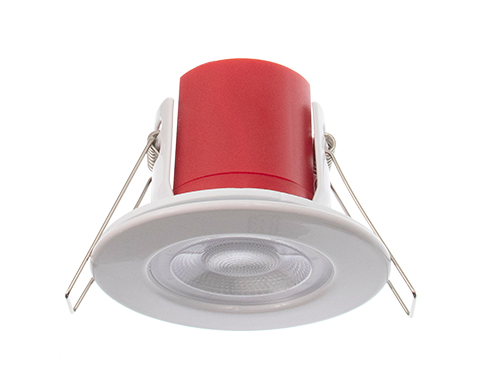

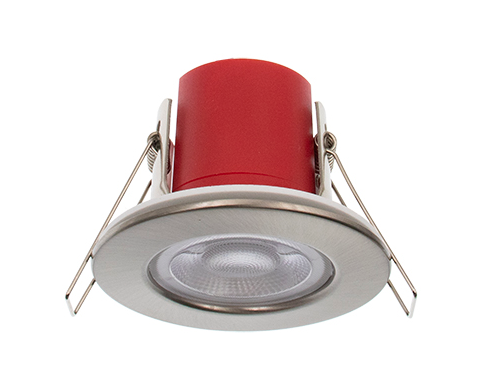

Recessed Fire Rated Downlight with CCTK Selector
- Compact fire rated downlight with AC on board driver technology

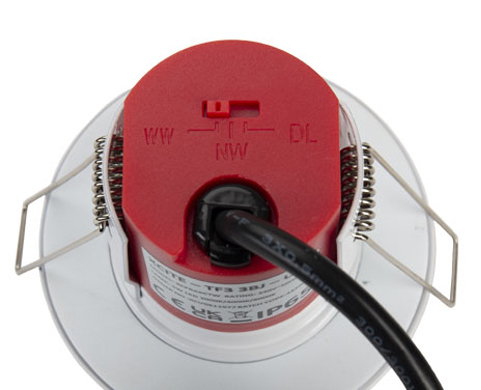

- CCT adjustable via 3-way selector switch [3000K/4000K/6000K]
- Dimmable as standard
- Loop in/out mains connections with easy-fit connector
- Convert to larger sized cut outs with the Conversion Plates
- 30, 60 & 90 minute fire rating with solid timber joists
- 30 minute fire rating with Staircraft I-Joist and METAL WEB Joist [Compatibility Matrix]
- Steel body providing a high level of fire protection in accordance with Building Regulations Part B
- White, Satin Nickel or Polished Chrome Finish
- Up to 90 lumens per watt efficacy
![Tri-Colour [3000K, 4000K, 6000K]](/assets/images/icons_xcite/tri346.png "Tri-Colour [3000K, 4000K, 6000K]"){kind=icon}
![Fire Rated [30,60,90 minute fire rating with solid timber joists]](/assets/images/icons_xcite/306090minutes.png "Fire Rated [30,60,90 minute fire rating with solid timber joists]"){kind=icon}
![Fire Rated I-Joist [30 minute fire rating]](/assets/images/icons_xcite/30minsstair.png "Fire Rated I-Joist [30 minute fire rating]"){kind=icon}
![Fire Rated Metal Web I-Joist [30 minute fire rating]](/assets/images/icons_xcite/30minsmetalweb.png "Fire Rated Metal Web I-Joist [30 minute fire rating]"){kind=icon}
No
No
| Order Code | Description | Data sheet | Light Planner | Buy Now |
|---|---|---|---|---|
| XCFRA5CTW | 5W - Fire Rated Recessed Mini Downlight - [3000K/4000K/6000K] - White | View | View | |
| XCFRA5CTPC | 5W - Fire Rated Recessed Mini Downlight - [3000K/4000K/6000K] - Polished Chrome | View | View | |
| XCFRA5CTSN | 5W - Fire Rated Recessed Mini Downlight - [3000K/4000K/6000K] - Satin Nickel | View | View | Buy |
No
No
| Order Code | Description | W | lm | lm/W | Data sheet | Light Planner | Buy Now |
|---|---|---|---|---|---|---|---|
| XCFRA5CTW | 5W - Fire Rated Recessed Mini Downlight - [3000K/4000K/6000K] - White | 5 | 400 to 500 | 90 | View | View | |
| XCFRA5CTPC | 5W - Fire Rated Recessed Mini Downlight - [3000K/4000K/6000K] - Polished Chrome | 5 | 400 to 500 | 90 | View | View | |
| XCFRA5CTSN | 5W - Fire Rated Recessed Mini Downlight - [3000K/4000K/6000K] - Satin Nickel | 5 | 400 to 500 | 90 | View | View | Buy |
No
No
| Order Code | Description | C (mm) |
Cut Out (mm) |
Dia. (mm) |
Data sheet | Light Planner | Buy Now |
|---|---|---|---|---|---|---|---|
| XCFRA5CTW | 5W - Fire Rated Recessed Mini Downlight - [3000K/4000K/6000K] - White | 57 | 60 | 80 | View | View | |
| XCFRA5CTPC | 5W - Fire Rated Recessed Mini Downlight - [3000K/4000K/6000K] - Polished Chrome | 57 | 60 | 80 | View | View | |
| XCFRA5CTSN | 5W - Fire Rated Recessed Mini Downlight - [3000K/4000K/6000K] - Satin Nickel | 57 | 60 | 80 | View | View | Buy |
No
No
| Order Code | Description | Energy Class | ERP Instructions |
EPREL Site |
|---|---|---|---|---|
| XCFRA5CTW | 5W - Fire Rated Recessed Mini Downlight - [3000K/4000K/6000K] - White |
|
View | Visit |
| XCFRA5CTPC | 5W - Fire Rated Recessed Mini Downlight - [3000K/4000K/6000K] - Polished Chrome |
|
View | Visit |
| XCFRA5CTSN | 5W - Fire Rated Recessed Mini Downlight - [3000K/4000K/6000K] - Satin Nickel |
|
View | Visit |
