FRD TILT

(This product is now obsolete)

Recessed Fire Rated Tilt Downlight

  • Ideal for retrofit of existing halogen downlight fixtures
  • Available in 5 different coloured bezels
  • Fully adjustable tilted lens
  • Dimmable as standard
  • Chip-on-board LED source replicates Halogen appearance
  • 30 minute fire rating with Staircraft I-Joist [Compatibility Matrix]
  • Steel body providing a high level of fire protection in accordance with Building Regulations Part B
  • Loop in/out mains connections with integrated driver
  • 3 hours emergency maintained with compatible conversion pack Emergency Pack
  • Up to 93 lumens per watt efficacy
  • Available in warm white [3000K] or neutral white [4000K]
3000K - WW4000K - NW30,000 Hours3 Years WarrantyIK03Fire Rated [30,60,90 minute fire rating with solid timber joists]Fire Rated I-Joist [30 minute fire rating]Dimmable
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":4000}
Order Code Description Data sheet Light Planner Buy Now
XCFRDT76WW 7W - Fire Rated Tilt Downlight - 60 Degree Beam Angle - 3000K View View
XCFRDT76NW 7W - Fire Rated Tilt Downlight - 60 Degree Beam Angle - 4000K View View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":4000}
Order Code Description W lm lm/W Data sheet Light Planner Buy Now
XCFRDT76WW 7W - Fire Rated Tilt Downlight - 60 Degree Beam Angle - 3000K 7 600 86 View View
XCFRDT76NW 7W - Fire Rated Tilt Downlight - 60 Degree Beam Angle - 4000K 7 650 93 View View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":4000}

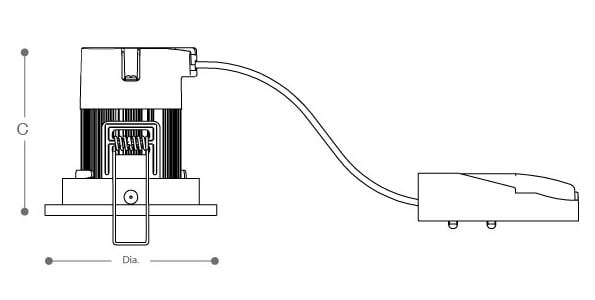

Order Code Description C
(mm)
Cut Out
(mm)
Dia.
(mm)
Data sheet Light Planner Buy Now
XCFRDT76WW 7W - Fire Rated Tilt Downlight - 60 Degree Beam Angle - 3000K 82 70 82 View View
XCFRDT76NW 7W - Fire Rated Tilt Downlight - 60 Degree Beam Angle - 4000K 82 70 82 View View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":4000}
Order Code Description
XCFRDT76WW 7W - Fire Rated Tilt Downlight - 60 Degree Beam Angle - 3000K
XCFRDT76NW 7W - Fire Rated Tilt Downlight - 60 Degree Beam Angle - 4000K
