HIGH BAY

LED High Bay

Where to Buy

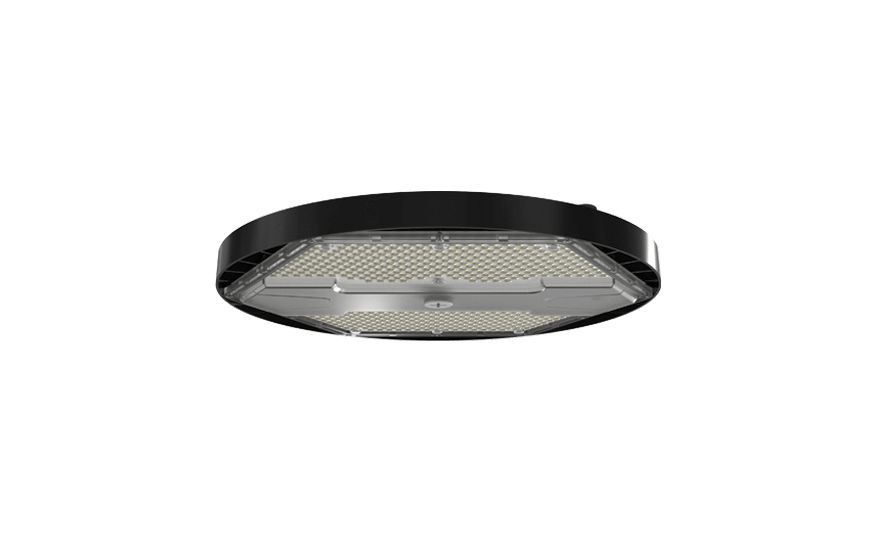

  • hi bay main

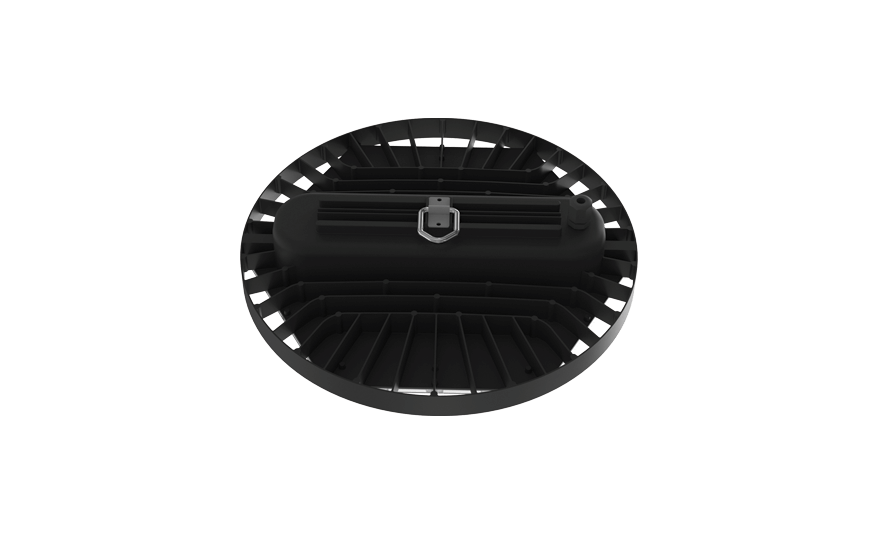

  • hi bay top

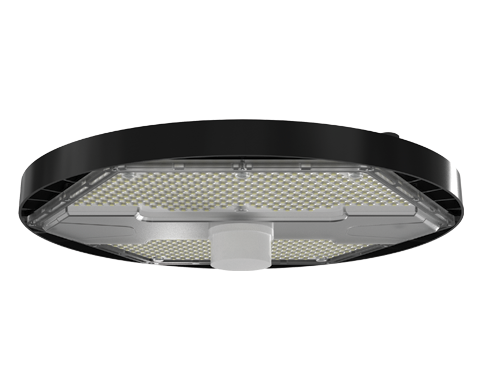

  • hi bay sensor
  • hi bay main
  • hi bay top
  • hi bay sensor
  • Ideal for retro-fit of SON or Metal Halide high bays
  • Available in 2 sizes and 3 outputs
  • Suspension via chain or wire suspension
  • Extra-long 1.5m pre-wired cable
  • Suitable for mounting heights between 5m and 12m
  • Microwave dimming sensor option available
  • Up to 133 lumens per Watt efficacy
  • Die-cast aluminium body finished in black
  • Integral driver
  • Supplied as standard with neutral white [4000K] LED
  • Hand held programmer available
4000K - NW3 Years WarrantyIP65IK08Microwave sensor
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet Light Planner Buy Now
XCHBA100NW 100W - High Bay - 4000K View View Buy
XCHBA100NWMS 100W - High Bay - Microwave sensor - 4000K View Buy
XCHBA150NW 150W - High Bay - 4000K View View Buy
XCHBA150NWMS 150W - High Bay - Microwave sensor - 4000K View Buy
XCHBA200NW 200W - High Bay - 4000K View View Buy
XCHBA200NWMS 200W - High Bay - Microwave sensor - 4000K View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet Light Planner Buy Now
XCHBA100NW 100W - High Bay - 4000K 100 13000 130 View View Buy
XCHBA100NWMS 100W - High Bay - Microwave sensor - 4000K 100 13000 130 View Buy
XCHBA150NW 150W - High Bay - 4000K 150 20000 133 View View Buy
XCHBA150NWMS 150W - High Bay - Microwave sensor - 4000K 150 20000 133 View Buy
XCHBA200NW 200W - High Bay - 4000K 200 26000 130 View View Buy
XCHBA200NWMS 200W - High Bay - Microwave sensor - 4000K 200 26000 130 View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description C
(mm)		 Dia.
(mm)		 Data sheet Light Planner Buy Now
XCHBA100NW 100W - High Bay - 4000K 112 301 View View Buy
XCHBA100NWMS 100W - High Bay - Microwave sensor - 4000K 140 301 View Buy
XCHBA150NW 150W - High Bay - 4000K 112 361 View View Buy
XCHBA150NWMS 150W - High Bay - Microwave sensor - 4000K 140 361 View Buy
XCHBA200NW 200W - High Bay - 4000K 112 361 View View Buy
XCHBA200NWMS 200W - High Bay - Microwave sensor - 4000K 140 361 View Buy

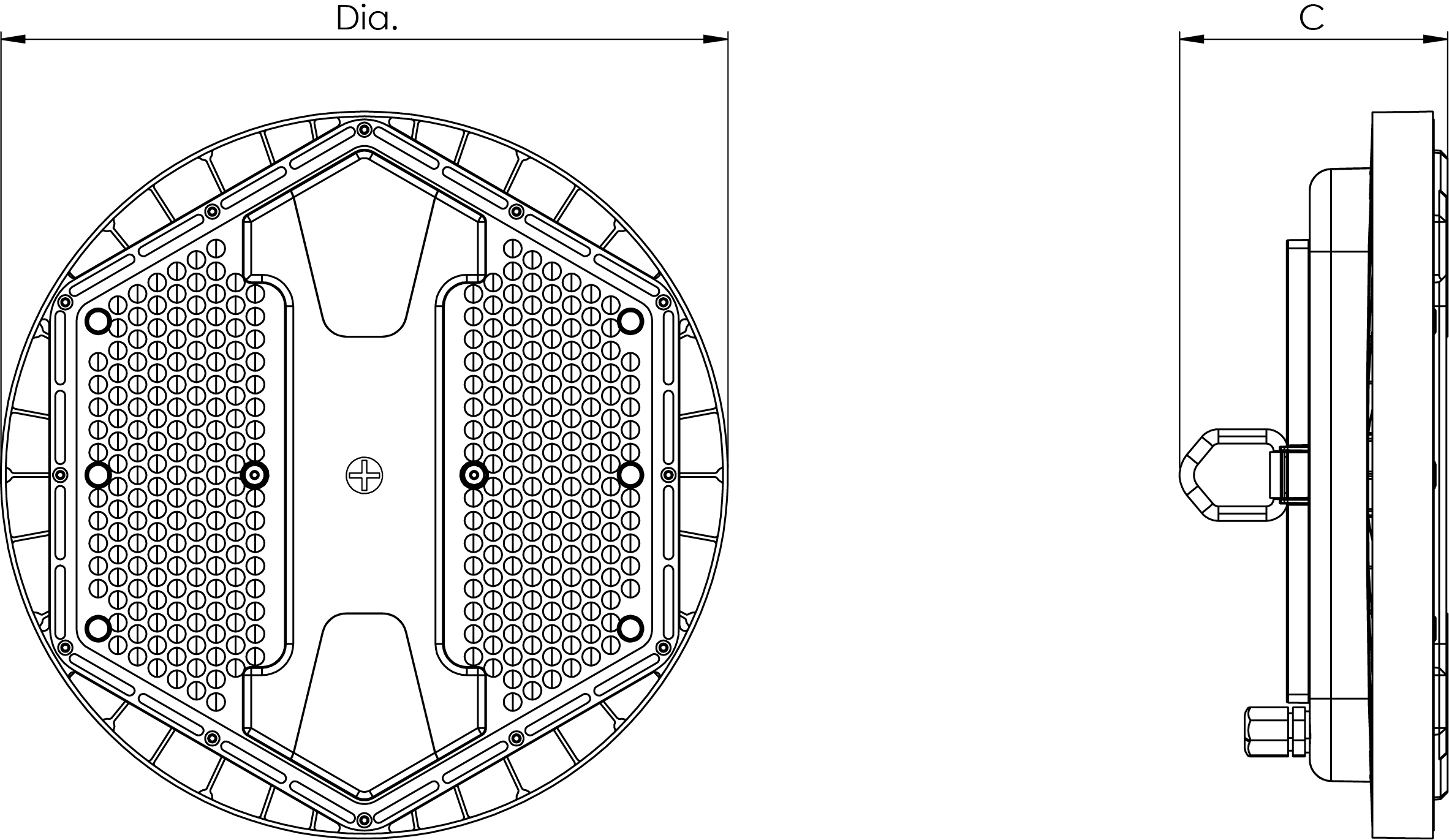

HIGH BAY Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCHBA100NW 100W - High Bay - 4000K Energy Class C View Visit
XCHBA100NWMS 100W - High Bay - Microwave sensor - 4000K Energy Class C View Visit
XCHBA150NW 150W - High Bay - 4000K Energy Class C View Visit
XCHBA150NWMS 150W - High Bay - Microwave sensor - 4000K Energy Class C View Visit
XCHBA200NW 200W - High Bay - 4000K Energy Class C View Visit
XCHBA200NWMS 200W - High Bay - Microwave sensor - 4000K Energy Class C View Visit

HIGH BAY Line Drawing
