LINEAR SUSPENDED

Suspended Linear Luminaire with CCT Selector

Where to Buy

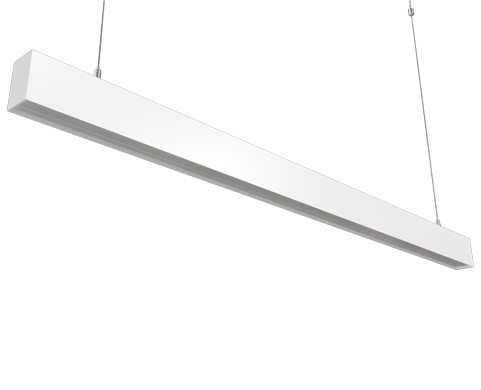

  • linearsuspended white

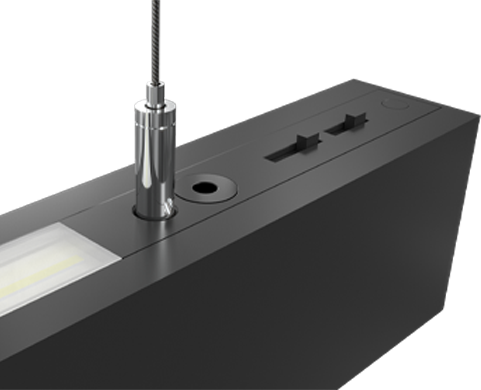

  • linearsuspended switch

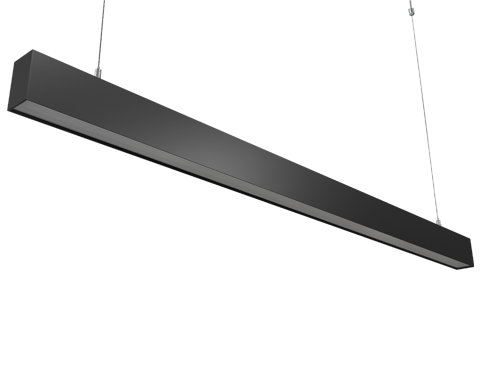

  • linearsuspended black

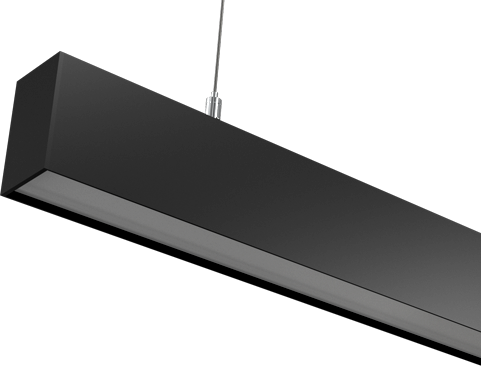

  • linearsuspended main

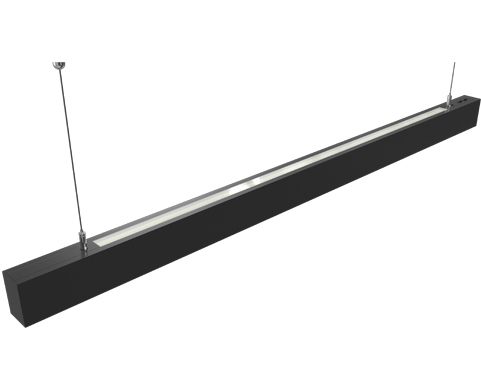

  • linearsuspended top
  • linearsuspended white
  • linearsuspended switch
  • linearsuspended black
  • linearsuspended main
  • linearsuspended top
  • Suitable for offices and schools
  • Independently switchable up/down modes with adjustable CCT [3000K/4000K/5000K]
  • DALI and push switch dimmable as standard
  • Complete with adjustable 1.5m wire suspension and 1.8m power feed
  • Opal polycarbonate diffuser
  • Emergency option available
  • Extruded aluminium body finished in black or white
  • Fitted polycarbonate end caps
  • Up to 123 lumens per watt efficacy
Tri-Colour [3000K, 4000K, 5000K]30,000 Hours5 Years Warranty1 Year On-Site Warranty (T&C`s Apply)Maintained emergency 3hr (Option)Dimmable DALI gear
LINEAR SUSPENDED Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet Buy Now
XCLS429CTBDM3 29W - Dimmable - Emergency - 3000K/4000K/5000K - Opal diffuser - Black View
XCLS429CTBD 29W - Dimmable - 3000K/4000K/5000K - Opal diffuser - Black View
XCLS429CTWDM3 29W - Dimmable - Emergency - 3000K/4000K/5000K - Opal diffuser - White View
XCLS429CTWD 29W - Dimmable - 3000K/4000K/5000K - Opal diffuser - White View
XCLS547CTBDM3 47W - Dimmable - Emergency - 3000K/4000K/5000K - Opal diffuser - Black View
XCLS547CTBD 47W - Dimmable - 3000K/4000K/5000K - Opal diffuser - Black View
XCLS547CTWDM3 47W - Dimmable - Emergency - 3000K/4000K/5000K - Opal diffuser - White View
XCLS547CTWD 47W - Dimmable - 3000K/4000K/5000K - Opal diffuser - White View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet Buy Now
XCLS429CTBDM3 29W - Dimmable - Emergency - 3000K/4000K/5000K - Opal diffuser - Black 29 3200 109 View
XCLS429CTBD 29W - Dimmable - 3000K/4000K/5000K - Opal diffuser - Black 29 3200 109 View
XCLS429CTWDM3 29W - Dimmable - Emergency - 3000K/4000K/5000K - Opal diffuser - White 29 3200 109 View
XCLS429CTWD 29W - Dimmable - 3000K/4000K/5000K - Opal diffuser - White 29 3200 109 View
XCLS547CTBDM3 47W - Dimmable - Emergency - 3000K/4000K/5000K - Opal diffuser - Black 47 5800 123 View
XCLS547CTBD 47W - Dimmable - 3000K/4000K/5000K - Opal diffuser - Black 47 5800 123 View
XCLS547CTWDM3 47W - Dimmable - Emergency - 3000K/4000K/5000K - Opal diffuser - White 47 5800 123 View
XCLS547CTWD 47W - Dimmable - 3000K/4000K/5000K - Opal diffuser - White 47 5800 123 View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description A
(mm)		 B
(mm)		 C
(mm)		 Fix Data sheet Buy Now
XCLS429CTBDM3 29W - Dimmable - Emergency - 3000K/4000K/5000K - Opal diffuser - Black 1200 45 70 975 View
XCLS429CTBD 29W - Dimmable - 3000K/4000K/5000K - Opal diffuser - Black 1200 45 70 975 View
XCLS429CTWDM3 29W - Dimmable - Emergency - 3000K/4000K/5000K - Opal diffuser - White 1200 45 70 975 View
XCLS429CTWD 29W - Dimmable - 3000K/4000K/5000K - Opal diffuser - White 1200 45 70 975 View
XCLS547CTBDM3 47W - Dimmable - Emergency - 3000K/4000K/5000K - Opal diffuser - Black 1500 45 70 1275 View
XCLS547CTBD 47W - Dimmable - 3000K/4000K/5000K - Opal diffuser - Black 1500 45 70 1275 View
XCLS547CTWDM3 47W - Dimmable - Emergency - 3000K/4000K/5000K - Opal diffuser - White 1500 45 70 1275 View
XCLS547CTWD 47W - Dimmable - 3000K/4000K/5000K - Opal diffuser - White 1500 45 70 1275 View
LINEAR SUSPENDED Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCLS429CTBDM3 29W - Dimmable - Emergency - 3000K/4000K/5000K - Opal diffuser - Black Energy Class B View Visit
XCLS429CTBD 29W - Dimmable - 3000K/4000K/5000K - Opal diffuser - Black Energy Class B View Visit
XCLS429CTWDM3 29W - Dimmable - Emergency - 3000K/4000K/5000K - Opal diffuser - White Energy Class B View Visit
XCLS429CTWD 29W - Dimmable - 3000K/4000K/5000K - Opal diffuser - White Energy Class B View Visit
XCLS547CTBDM3 47W - Dimmable - Emergency - 3000K/4000K/5000K - Opal diffuser - Black Energy Class B View Visit
XCLS547CTBD 47W - Dimmable - 3000K/4000K/5000K - Opal diffuser - Black Energy Class B View Visit
XCLS547CTWDM3 47W - Dimmable - Emergency - 3000K/4000K/5000K - Opal diffuser - White Energy Class B View Visit
XCLS547CTWD 47W - Dimmable - 3000K/4000K/5000K - Opal diffuser - White Energy Class B View Visit

LINEAR SUSPENDED Line Drawing
