PANEL LG

Recessed Low Glare Panel

Where to Buy

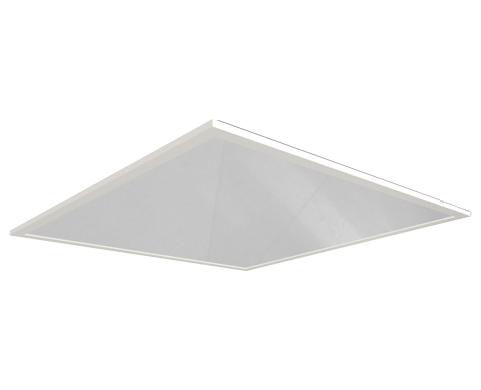

  • xcite panel lg 2
  • Suitable for office and schools with UGR<19
  • Backlit recessed module
  • More consistent and uniform appearance than traditional edge-lit panels or downlights
  • Compatible with Panel Frame and Surface Panel Frame
  • Extruded aluminium frame
  • Dimmable (switch-DIM) versions available in neutral white (4000K) or daylight (6000K)
  • High performance microprismatic TP[b] diffuser
  • Plug and play driver
  • Supplied in warm white [3000K], neutral white [4000K], cool white [5000K] or daylight [6000K]
  • 3 hours emergency maintained with compatible conversion box Emergency Kit
  • Up to 100 lumens per watt efficacy
3000K - WW4000K - NW5000K - CW6000K - DL30,000 Hours5 Years Warranty1 Year On-Site Warranty (T&C`s Apply)IK03Dimmable DALI gear
PANEL LG Product Flyer Icon

Product Flyer
PANEL LG Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"33%":4000,"66%":5000,"max":6000}
Order Code Description Data sheet Light Planner Buy Now
XCLGP6630DLD 30W - Recessed Low Glare Panel - 600m x 600m - Dimmable - 6000K View
XCLGP6630DL 30W - Recessed Low Glare Panel - 600m x 600m - 6000K View View Buy
XCLGP6630NWD 30W - Recessed Low Glare Panel - 600m x 600m - Dimmable - 4000K View
XCLGP6630CW 30W - Recessed Low Glare Panel - 600m x 600m - 5000K View View Buy
XCLGP6630WW 30W - Recessed Low Glare Panel - 600m x 600m - 3000K View View Buy
XCLGP6630NW 30W - Recessed Low Glare Panel - 600m x 600m - 4000K View View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"33%":4000,"66%":5000,"max":6000}
Order Code Description W lm lm/W Data sheet Light Planner Buy Now
XCLGP6630DLD 30W - Recessed Low Glare Panel - 600m x 600m - Dimmable - 6000K 30 3000 100 View
XCLGP6630DL 30W - Recessed Low Glare Panel - 600m x 600m - 6000K 30 3000 100 View View Buy
XCLGP6630NWD 30W - Recessed Low Glare Panel - 600m x 600m - Dimmable - 4000K 30 3000 100 View
XCLGP6630CW 30W - Recessed Low Glare Panel - 600m x 600m - 5000K 30 3000 100 View View Buy
XCLGP6630WW 30W - Recessed Low Glare Panel - 600m x 600m - 3000K 30 3000 100 View View Buy
XCLGP6630NW 30W - Recessed Low Glare Panel - 600m x 600m - 4000K 30 3000 100 View View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"33%":4000,"66%":5000,"max":6000}
Order Code Description A
(mm)		 B
(mm)		 C
(mm)		 Data sheet Light Planner Buy Now
XCLGP6630DLD 30W - Recessed Low Glare Panel - 600m x 600m - Dimmable - 6000K 595 595 35 View
XCLGP6630DL 30W - Recessed Low Glare Panel - 600m x 600m - 6000K 595 595 35 View View Buy
XCLGP6630NWD 30W - Recessed Low Glare Panel - 600m x 600m - Dimmable - 4000K 595 595 35 View
XCLGP6630CW 30W - Recessed Low Glare Panel - 600m x 600m - 5000K 595 595 35 View View Buy
XCLGP6630WW 30W - Recessed Low Glare Panel - 600m x 600m - 3000K 595 595 35 View View Buy
XCLGP6630NW 30W - Recessed Low Glare Panel - 600m x 600m - 4000K 595 595 35 View View Buy

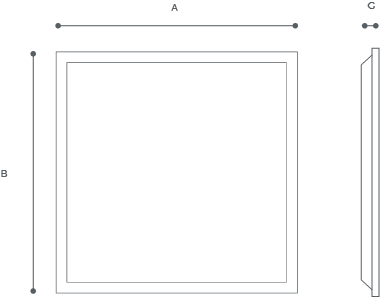

PANEL LG Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"33%":4000,"66%":5000,"max":6000}
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCLGP6630DLD 30W - Recessed Low Glare Panel - 600m x 600m - Dimmable - 6000K Energy Class E View Visit
XCLGP6630DL 30W - Recessed Low Glare Panel - 600m x 600m - 6000K Energy Class E View Visit
XCLGP6630NWD 30W - Recessed Low Glare Panel - 600m x 600m - Dimmable - 4000K Energy Class E View Visit
XCLGP6630CW 30W - Recessed Low Glare Panel - 600m x 600m - 5000K Energy Class E View Visit
XCLGP6630WW 30W - Recessed Low Glare Panel - 600m x 600m - 3000K Energy Class E View Visit
XCLGP6630NW 30W - Recessed Low Glare Panel - 600m x 600m - 4000K Energy Class E View Visit

PANEL LG Line Drawing
