UNI DOWNLIGHT

Universal Downlight with CCTK Selector

Where to Buy

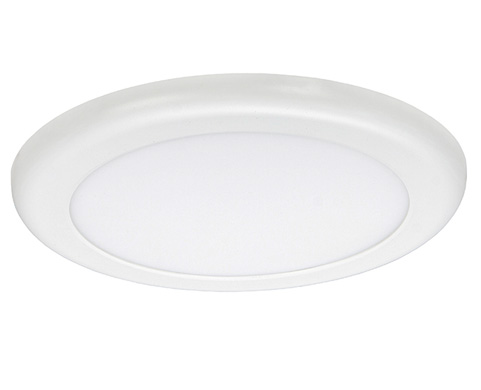

  • xcite uni downlight
  • xcite uni downlight closeup 3
  • xcite uni downlight closeup 1
  • xcite uni downlight bracket 2
  • xcite uni downlight 2
  • xcite uni downlight closeup 2
  • xcite uni downlight bracket 3
  • xcite uni downlight bracket
  • xcite uni downlight
  • xcite uni downlight closeup 3
  • xcite uni downlight closeup 1
  • xcite uni downlight bracket 2
  • xcite uni downlight 2
  • xcite uni downlight closeup 2
  • xcite uni downlight bracket 3
  • xcite uni downlight bracket
Where to Buy

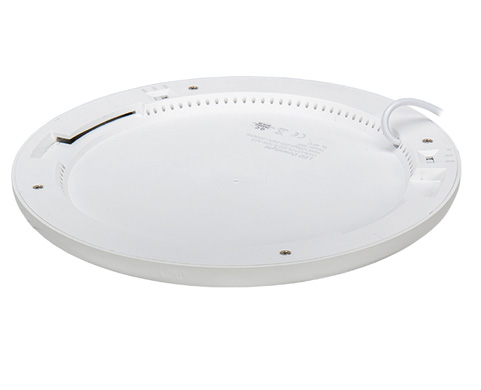

  • Universal downlight for retrofitting into wide range of cut-outs

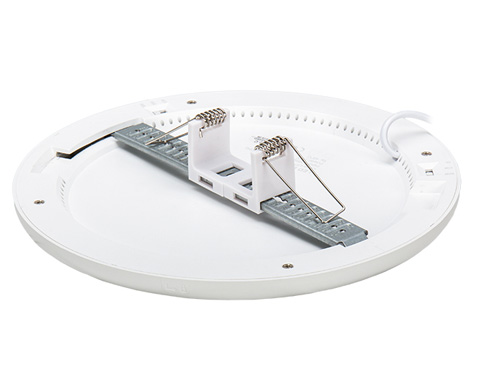

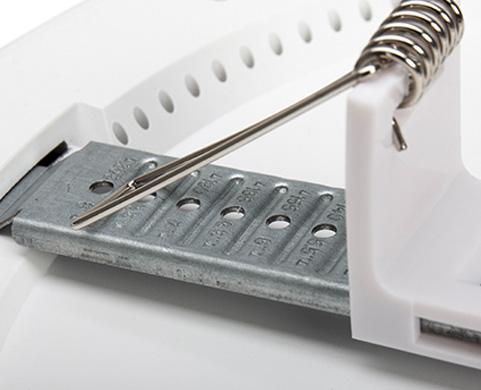

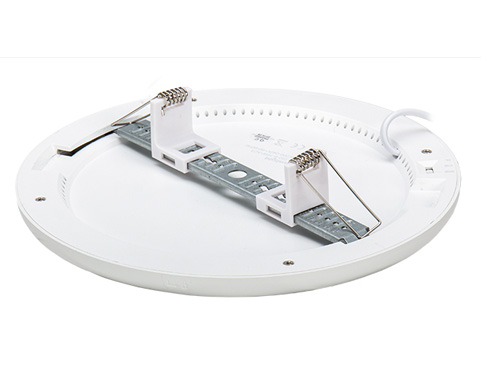

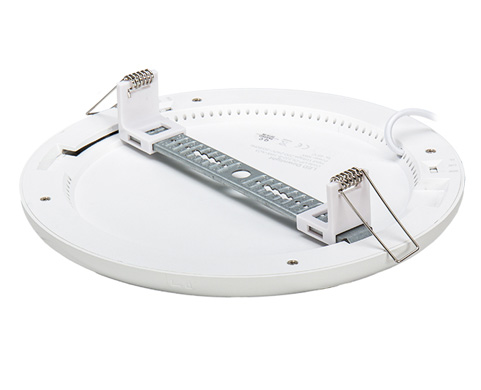

  • Adjustable bracket allows retrofitting into existing cut-out of 65mm to 205mm

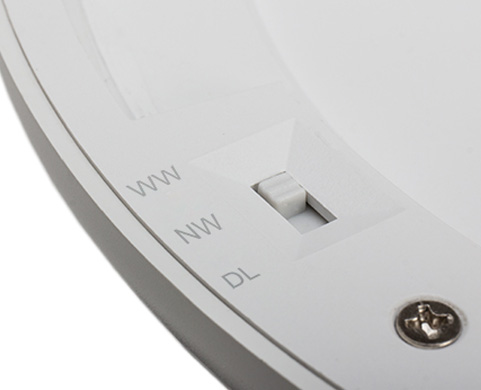

  • CCT adjustable via 3-way selector switch [3000K/4000K/6000K]

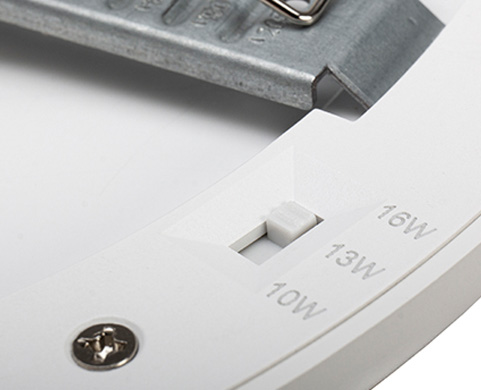

  • A choice of wattages selectable via switch [10W, 13W, 16W]
  • Ideal solution when cut-out and colour temperature requirements are not known
  • Polycarbonate body
  • Opal polystyrene diffuser
  • Integral driver
  • Up to 90 lumens per watt efficacy
Tri-Colour [3000K, 4000K, 6000K]30,000 Hours3 Years Warranty
UNI DOWNLIGHT Product Flyer Icon

Product Flyer
UNI DOWNLIGHT Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet Light Planner Buy Now
XCDLUCT 10-16W - Universal Downlight - [3000K/4000K/6000K] - White View View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet Light Planner Buy Now
XCDLUCT 10-16W - Universal Downlight - [3000K/4000K/6000K] - White 10-16 900 to 1500 90 View View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description C
(mm)		 Cut Out
(mm)		 Dia.
(mm)		 Data sheet Light Planner Buy Now
XCDLUCT 10-16W - Universal Downlight - [3000K/4000K/6000K] - White 17 65-205 235 View View Buy

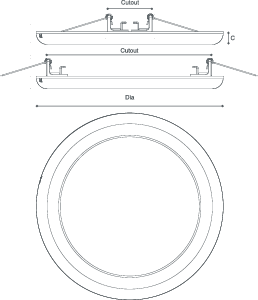

UNI DOWNLIGHT Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCDLUCT 10-16W - Universal Downlight - [3000K/4000K/6000K] - White Energy Class E View Visit

UNI DOWNLIGHT Line Drawing
