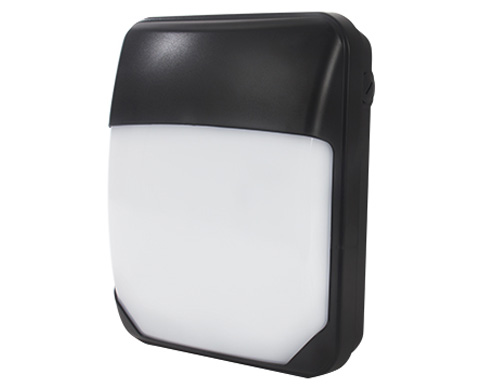

WALLPACK CC

High Output Wall Light with CCTK Selector

Where to Buy
  • xcite wallpack
  • xcite wallpack ccswitch2
  • xcite wallpack side
  • xcite wallpack ccswitch
  • xcite wallpack
  • xcite wallpack ccswitch2
  • xcite wallpack side
  • xcite wallpack ccswitch
  • Ideal for retrofit of HID discharge wallpacks
  • Suitable for exterior walls and entrance areas
  • Sensor options available

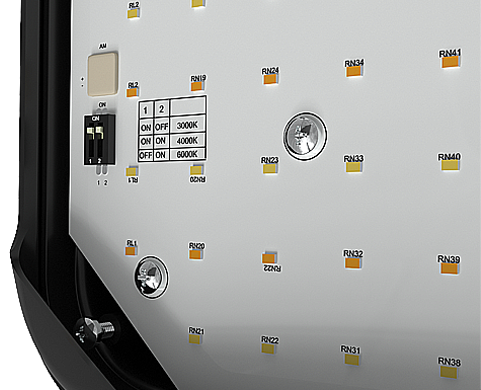

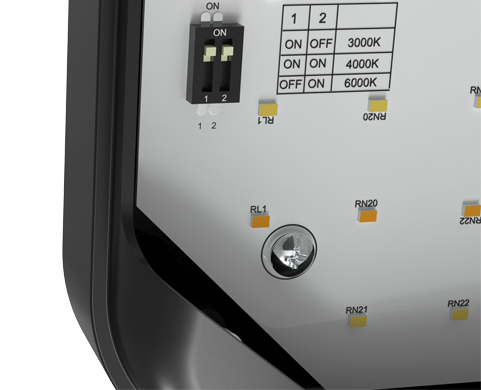

  • CCT [3000K/4000K/6000K] adjustable via 2-way dip switch
  • Photocell option available
  • Polycarbonate body and diffuser
  • Integral emergency option available
  • CRI: Ra>80
  • Up to 70 lumens per watt efficacy
Tri-Colour [3000K, 4000K, 6000K]30,000 Hours5 Years Warranty1 Year On-Site Warranty (T&C`s Apply)IP65IK08Maintained emergency 3hr (Option)Microwave SensorPhotocell
WALLPACK CC Product Flyer Icon

Product Flyer
WALLPACK CC Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet Buy Now
XCWL23CTM3HFS 23W - Wallpack CC - IP65 - [3000K/4000K/6000K] - 3hrs Maintained Emergency - Microwave sensor View
XCWL23CTM3HFSPC 23W - Wallpack CC - IP65 - [3000K/4000K/6000K] - 3hrs Maintained Emergency - Microwave sensor & Photocell View
XCWL23CTM3 23W - Wallpack CC - IP65 - [3000K/4000K/6000K] - 3hrs Maintained Emergency View Buy
XCWL23CT 23W - Wallpack CC - IP65 - [3000K/4000K/6000K] View Buy
XCWL23CTHFS 23W - Wallpack CC - IP65 - [3000K/4000K/6000K] - Microwave sensor View Buy
XCWL23CTHFSPC 23W - Wallpack CC - IP65 - [3000K/4000K/6000K] - Microwave sensor & Photocell View
XCWL23CTPC 23W - Wallpack CC - IP65 - [3000K/4000K/6000K] - Photocell View Buy
XCWL23CTM3PC 23W - Wallpack CC - IP65 - [3000K/4000K/6000K] - 3hrs Maintained Emergency - Photocell View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet Buy Now
XCWL23CTM3HFS 23W - Wallpack CC - IP65 - [3000K/4000K/6000K] - 3hrs Maintained Emergency - Microwave sensor 23 1600-1900 70 View
XCWL23CTM3HFSPC 23W - Wallpack CC - IP65 - [3000K/4000K/6000K] - 3hrs Maintained Emergency - Microwave sensor & Photocell 23 1600-1900 70 View
XCWL23CTM3 23W - Wallpack CC - IP65 - [3000K/4000K/6000K] - 3hrs Maintained Emergency 23 1600-1900 70 View Buy
XCWL23CT 23W - Wallpack CC - IP65 - [3000K/4000K/6000K] 23 1600-1900 70 View Buy
XCWL23CTHFS 23W - Wallpack CC - IP65 - [3000K/4000K/6000K] - Microwave sensor 23 1600-1900 70 View Buy
XCWL23CTHFSPC 23W - Wallpack CC - IP65 - [3000K/4000K/6000K] - Microwave sensor & Photocell 23 1600-1900 70 View
XCWL23CTPC 23W - Wallpack CC - IP65 - [3000K/4000K/6000K] - Photocell 23 1600-1900 70 View Buy
XCWL23CTM3PC 23W - Wallpack CC - IP65 - [3000K/4000K/6000K] - 3hrs Maintained Emergency - Photocell 23 1600-1900 70 View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description A
(mm)		 B
(mm)		 C
(mm)		 Data sheet Buy Now
XCWL23CTM3HFS 23W - Wallpack CC - IP65 - [3000K/4000K/6000K] - 3hrs Maintained Emergency - Microwave sensor 307 257 105 View
XCWL23CTM3HFSPC 23W - Wallpack CC - IP65 - [3000K/4000K/6000K] - 3hrs Maintained Emergency - Microwave sensor & Photocell 307 257 105 View
XCWL23CTM3 23W - Wallpack CC - IP65 - [3000K/4000K/6000K] - 3hrs Maintained Emergency 307 257 105 View Buy
XCWL23CT 23W - Wallpack CC - IP65 - [3000K/4000K/6000K] 307 257 105 View Buy
XCWL23CTHFS 23W - Wallpack CC - IP65 - [3000K/4000K/6000K] - Microwave sensor 307 257 105 View Buy
XCWL23CTHFSPC 23W - Wallpack CC - IP65 - [3000K/4000K/6000K] - Microwave sensor & Photocell 307 257 105 View
XCWL23CTPC 23W - Wallpack CC - IP65 - [3000K/4000K/6000K] - Photocell 307 257 105 View Buy
XCWL23CTM3PC 23W - Wallpack CC - IP65 - [3000K/4000K/6000K] - 3hrs Maintained Emergency - Photocell 307 257 105 View

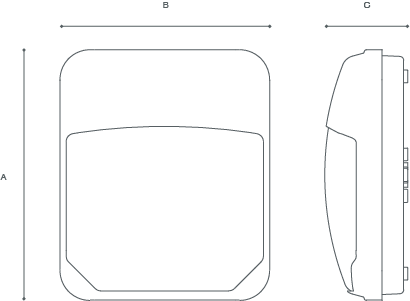

WALLPACK CC Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description
XCWL23CTM3HFS 23W - Wallpack CC - IP65 - [3000K/4000K/6000K] - 3hrs Maintained Emergency - Microwave sensor
XCWL23CTM3HFSPC 23W - Wallpack CC - IP65 - [3000K/4000K/6000K] - 3hrs Maintained Emergency - Microwave sensor & Photocell
XCWL23CTM3 23W - Wallpack CC - IP65 - [3000K/4000K/6000K] - 3hrs Maintained Emergency
XCWL23CT 23W - Wallpack CC - IP65 - [3000K/4000K/6000K]
XCWL23CTHFS 23W - Wallpack CC - IP65 - [3000K/4000K/6000K] - Microwave sensor
XCWL23CTHFSPC 23W - Wallpack CC - IP65 - [3000K/4000K/6000K] - Microwave sensor & Photocell
XCWL23CTPC 23W - Wallpack CC - IP65 - [3000K/4000K/6000K] - Photocell
XCWL23CTM3PC 23W - Wallpack CC - IP65 - [3000K/4000K/6000K] - 3hrs Maintained Emergency - Photocell

WALLPACK CC Line Drawing
