WP BULKHEAD C

Exterior Circular Polycarbonate Bulkhead

Where to Buy

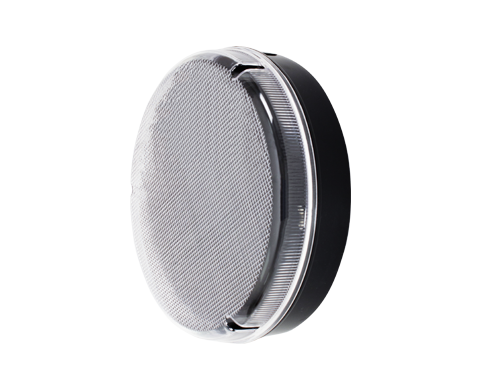

  • xcite wp bulkhead c black pris

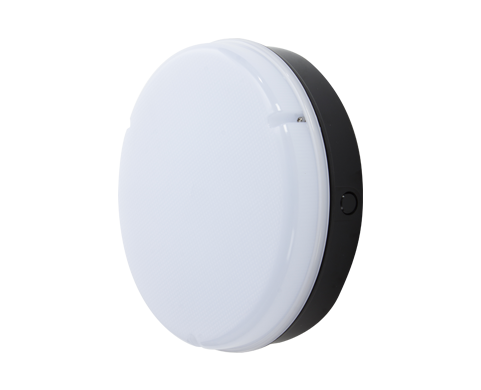

  • xcite wp bulkhead c black opal

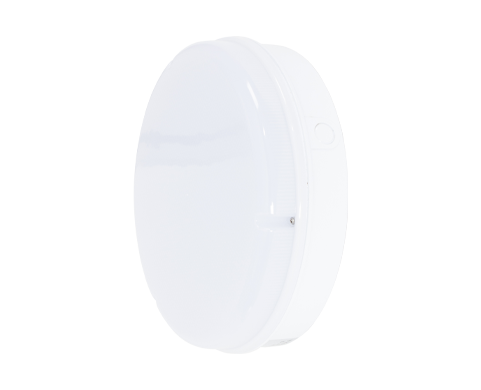

  • xcite wp bulkhead c white opal

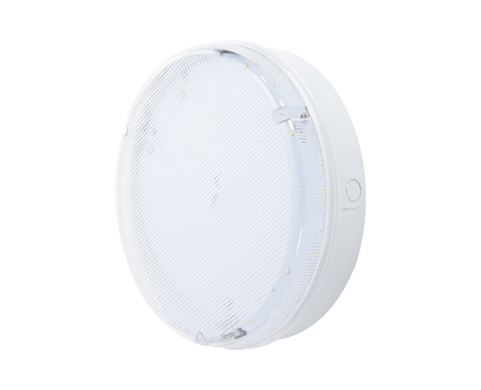

  • xcite wp bulkhead c white pris
  • xcite wp bulkhead c black pris
  • xcite wp bulkhead c black opal
  • xcite wp bulkhead c white opal
  • xcite wp bulkhead c white pris
  • Suitable for general interior or exterior use
  • 20mm conduit side cable entries for wall or ceiling fix
  • High quality polycarbonate construction
  • Polycarbonate body
  • White base or black base available
  • Opal or prismatic diffuser available
  • Integral emergency option available
  • Supplied as standard with neutral white [4000K] LED
  • Up to 113 lumens per watt efficacy
4000K - NW30,000 Hours3 Years WarrantyIP65IK08Maintained emergency 3hr (Option)Microwave Sensor
WP BULKHEAD C Product Flyer Icon

Product Flyer
WP BULKHEAD C Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet Light Planner Buy Now
XCBHWPCWO 16W - Circular Bulkhead - Opal diffuser - IP65 - 4000K - White Base View View Buy
XCBHWPCBO 16W - Circular Bulkhead - Opal diffuser - IP65 - 4000K - Black base View View Buy
XCBHWPCWP 16W - Circular Bulkhead - Prismatic diffuser - IP65 - 4000K - White Base View View Buy
XCBHWPCBP 16W - Circular Bulkhead - Prismatic diffuser - IP65 - 4000K - Black base View View Buy
XCBHWPCWOM3 16W - Circular Bulkhead - Opal diffuser - IP65 - White base - 3hrs Maintained Emergency - White Base View Buy
XCBHWPCBOM3 16W - Circular Bulkhead - Opal diffuser - IP65 - 3hrs Maintained Emergency - 4000K - Black base View Buy
XCBHWPCWPM3 16W - Circular Bulkhead - Prismatic diffuser - IP65 - White base - 3hrs Maintained Emergency - White Base View Buy
XCBHWPCBPM3 16W - Circular Bulkhead - Prismatic diffuser - IP65 - 3hrs Maintained Emergency - 4000K - Black base View Buy
XCBHWPCBOHFS 16W - Circular Bulkhead - Opal diffuser - IP65 - 4000K - Black base - Microwave Sensor View
XCBHWPCWOHFS 16W - Circular Bulkhead - Opal diffuser - IP65 - 4000K - White Base - Microwave Sensor View
XCBHWPCBOM3HFS 16W - Circular Bulkhead - Opal diffuser - IP65 - 3hrs Maintained Emergency - 4000K - Black base - Microwave Sensor - Microwave Sensor View
XCBHWPCWOM3HFS 16W - Circular Bulkhead - Opal diffuser - IP65 - White base - 3hrs Maintained Emergency - White Base - Microwave Sensor View
XCBHWPCBPHFS 16W - Circular Bulkhead - Prismatic diffuser - IP65 - 4000K - Black base - Microwave Sensor View
XCBHWPCWPHFS 16W - Circular Bulkhead - Prismatic diffuser - IP65 - 4000K - White Base - Microwave Sensor View
XCBHWPCBPM3HFS 16W - Circular Bulkhead - Prismatic diffuser - IP65 - 3hrs Maintained Emergency - 4000K - Black base - Microwave Sensor View
XCBHWPCWPM3HFS 16W - Circular Bulkhead - Prismatic diffuser - IP65 - White base - 3hrs Maintained Emergency - White Base - Microwave Sensor View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet Light Planner Buy Now
XCBHWPCWO 16W - Circular Bulkhead - Opal diffuser - IP65 - 4000K - White Base 16 1500 94 View View Buy
XCBHWPCBO 16W - Circular Bulkhead - Opal diffuser - IP65 - 4000K - Black base 16 1500 94 View View Buy
XCBHWPCWP 16W - Circular Bulkhead - Prismatic diffuser - IP65 - 4000K - White Base 16 1800 113 View View Buy
XCBHWPCBP 16W - Circular Bulkhead - Prismatic diffuser - IP65 - 4000K - Black base 16 1800 113 View View Buy
XCBHWPCWOM3 16W - Circular Bulkhead - Opal diffuser - IP65 - White base - 3hrs Maintained Emergency - White Base 16 1500 94 View Buy
XCBHWPCBOM3 16W - Circular Bulkhead - Opal diffuser - IP65 - 3hrs Maintained Emergency - 4000K - Black base 16 1500 94 View Buy
XCBHWPCWPM3 16W - Circular Bulkhead - Prismatic diffuser - IP65 - White base - 3hrs Maintained Emergency - White Base 16 1800 113 View Buy
XCBHWPCBPM3 16W - Circular Bulkhead - Prismatic diffuser - IP65 - 3hrs Maintained Emergency - 4000K - Black base 16 1800 113 View Buy
XCBHWPCBOHFS 16W - Circular Bulkhead - Opal diffuser - IP65 - 4000K - Black base - Microwave Sensor 16 1500 94 View
XCBHWPCWOHFS 16W - Circular Bulkhead - Opal diffuser - IP65 - 4000K - White Base - Microwave Sensor 16 1500 94 View
XCBHWPCBOM3HFS 16W - Circular Bulkhead - Opal diffuser - IP65 - 3hrs Maintained Emergency - 4000K - Black base - Microwave Sensor - Microwave Sensor 16 1500 94 View
XCBHWPCWOM3HFS 16W - Circular Bulkhead - Opal diffuser - IP65 - White base - 3hrs Maintained Emergency - White Base - Microwave Sensor 16 1500 94 View
XCBHWPCBPHFS 16W - Circular Bulkhead - Prismatic diffuser - IP65 - 4000K - Black base - Microwave Sensor 16 1800 113 View
XCBHWPCWPHFS 16W - Circular Bulkhead - Prismatic diffuser - IP65 - 4000K - White Base - Microwave Sensor 16 1800 113 View
XCBHWPCBPM3HFS 16W - Circular Bulkhead - Prismatic diffuser - IP65 - 3hrs Maintained Emergency - 4000K - Black base - Microwave Sensor 16 1800 113 View
XCBHWPCWPM3HFS 16W - Circular Bulkhead - Prismatic diffuser - IP65 - White base - 3hrs Maintained Emergency - White Base - Microwave Sensor 16 1800 113 View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description C
(mm)		 Dia.
(mm)		 Data sheet Light Planner Buy Now
XCBHWPCWO 16W - Circular Bulkhead - Opal diffuser - IP65 - 4000K - White Base 85 282 View View Buy
XCBHWPCBO 16W - Circular Bulkhead - Opal diffuser - IP65 - 4000K - Black base 85 282 View View Buy
XCBHWPCWP 16W - Circular Bulkhead - Prismatic diffuser - IP65 - 4000K - White Base 85 282 View View Buy
XCBHWPCBP 16W - Circular Bulkhead - Prismatic diffuser - IP65 - 4000K - Black base 85 282 View View Buy
XCBHWPCWOM3 16W - Circular Bulkhead - Opal diffuser - IP65 - White base - 3hrs Maintained Emergency - White Base 85 282 View Buy
XCBHWPCBOM3 16W - Circular Bulkhead - Opal diffuser - IP65 - 3hrs Maintained Emergency - 4000K - Black base 85 282 View Buy
XCBHWPCWPM3 16W - Circular Bulkhead - Prismatic diffuser - IP65 - White base - 3hrs Maintained Emergency - White Base 85 282 View Buy
XCBHWPCBPM3 16W - Circular Bulkhead - Prismatic diffuser - IP65 - 3hrs Maintained Emergency - 4000K - Black base 85 282 View Buy
XCBHWPCBOHFS 16W - Circular Bulkhead - Opal diffuser - IP65 - 4000K - Black base - Microwave Sensor 85 282 View
XCBHWPCWOHFS 16W - Circular Bulkhead - Opal diffuser - IP65 - 4000K - White Base - Microwave Sensor 85 282 View
XCBHWPCBOM3HFS 16W - Circular Bulkhead - Opal diffuser - IP65 - 3hrs Maintained Emergency - 4000K - Black base - Microwave Sensor - Microwave Sensor 85 282 View
XCBHWPCWOM3HFS 16W - Circular Bulkhead - Opal diffuser - IP65 - White base - 3hrs Maintained Emergency - White Base - Microwave Sensor 85 282 View
XCBHWPCBPHFS 16W - Circular Bulkhead - Prismatic diffuser - IP65 - 4000K - Black base - Microwave Sensor 85 282 View
XCBHWPCWPHFS 16W - Circular Bulkhead - Prismatic diffuser - IP65 - 4000K - White Base - Microwave Sensor 85 282 View
XCBHWPCBPM3HFS 16W - Circular Bulkhead - Prismatic diffuser - IP65 - 3hrs Maintained Emergency - 4000K - Black base - Microwave Sensor 85 282 View
XCBHWPCWPM3HFS 16W - Circular Bulkhead - Prismatic diffuser - IP65 - White base - 3hrs Maintained Emergency - White Base - Microwave Sensor 85 282 View

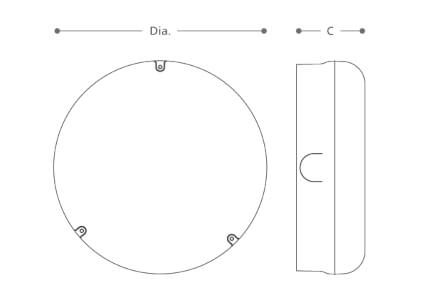

WP BULKHEAD C Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCBHWPCWO 16W - Circular Bulkhead - Opal diffuser - IP65 - 4000K - White Base Energy Class D View Visit
XCBHWPCBO 16W - Circular Bulkhead - Opal diffuser - IP65 - 4000K - Black base Energy Class D View Visit
XCBHWPCWP 16W - Circular Bulkhead - Prismatic diffuser - IP65 - 4000K - White Base Energy Class D View Visit
XCBHWPCBP 16W - Circular Bulkhead - Prismatic diffuser - IP65 - 4000K - Black base Energy Class D View Visit
XCBHWPCWOM3 16W - Circular Bulkhead - Opal diffuser - IP65 - White base - 3hrs Maintained Emergency - White Base Energy Class D View Visit
XCBHWPCBOM3 16W - Circular Bulkhead - Opal diffuser - IP65 - 3hrs Maintained Emergency - 4000K - Black base Energy Class D View Visit
XCBHWPCWPM3 16W - Circular Bulkhead - Prismatic diffuser - IP65 - White base - 3hrs Maintained Emergency - White Base Energy Class D View Visit
XCBHWPCBPM3 16W - Circular Bulkhead - Prismatic diffuser - IP65 - 3hrs Maintained Emergency - 4000K - Black base Energy Class D View Visit
XCBHWPCBOHFS 16W - Circular Bulkhead - Opal diffuser - IP65 - 4000K - Black base - Microwave Sensor Energy Class D Visit
XCBHWPCWOHFS 16W - Circular Bulkhead - Opal diffuser - IP65 - 4000K - White Base - Microwave Sensor
XCBHWPCBOM3HFS 16W - Circular Bulkhead - Opal diffuser - IP65 - 3hrs Maintained Emergency - 4000K - Black base - Microwave Sensor - Microwave Sensor
XCBHWPCWOM3HFS 16W - Circular Bulkhead - Opal diffuser - IP65 - White base - 3hrs Maintained Emergency - White Base - Microwave Sensor
XCBHWPCBPHFS 16W - Circular Bulkhead - Prismatic diffuser - IP65 - 4000K - Black base - Microwave Sensor Energy Class D Visit
XCBHWPCWPHFS 16W - Circular Bulkhead - Prismatic diffuser - IP65 - 4000K - White Base - Microwave Sensor
XCBHWPCBPM3HFS 16W - Circular Bulkhead - Prismatic diffuser - IP65 - 3hrs Maintained Emergency - 4000K - Black base - Microwave Sensor
XCBHWPCWPM3HFS 16W - Circular Bulkhead - Prismatic diffuser - IP65 - White base - 3hrs Maintained Emergency - White Base - Microwave Sensor

WP BULKHEAD C Line Drawing
