WP BULKHEAD S

Exterior Square Polycarbonate Bulkhead

Where to Buy

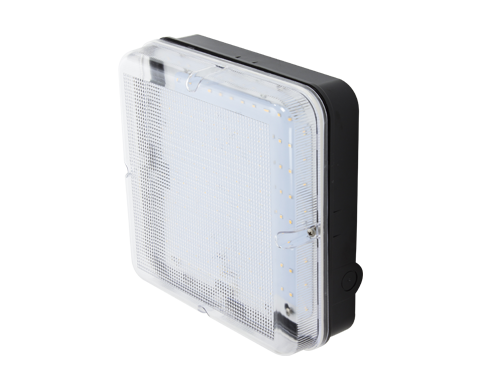

  • xcite wp bulkhead s black pris

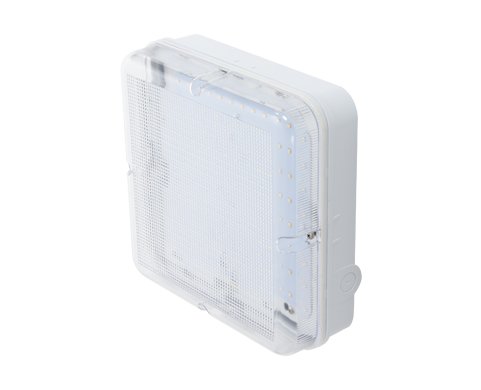

  • xcite wp bulkhead s white pris

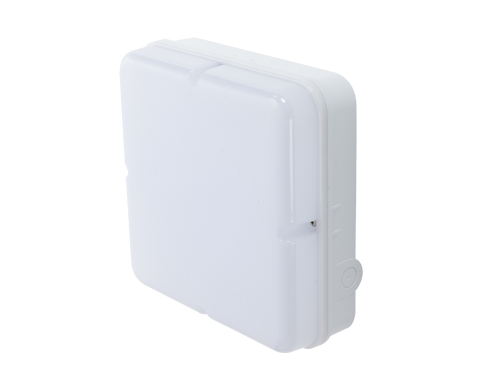

  • xcite wp bulkhead s white opal

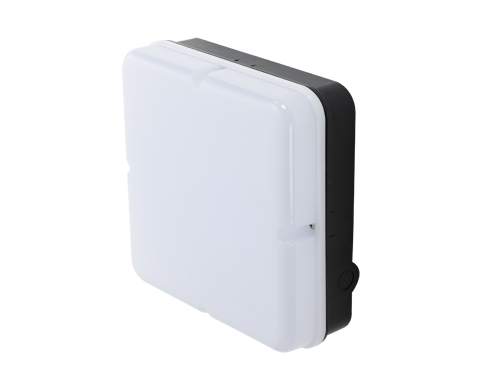

  • xcite wp bulkhead s black opal
  • xcite wp bulkhead s black pris
  • xcite wp bulkhead s white pris
  • xcite wp bulkhead s white opal
  • xcite wp bulkhead s black opal
  • Suitable for general interior or exterior use
  • 20mm conduit side cable entries for wall or ceiling fix
  • High quality polycarbonate construction
  • Polycarbonate body
  • White base or black base available
  • Opal or prismatic diffuser available
  • Integral emergency option available
  • Supplied as standard with neutral white [4000K] LED
  • Up to 113 lumens per watt efficacy
4000K - NW30,000 Hours3 Years WarrantyIP65IK08Maintained emergency 3hr (Option)Microwave Sensor
WP BULKHEAD S Product Flyer Icon

Product Flyer
WP BULKHEAD S Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet Light Planner Buy Now
XCBHWPSBOHFS 16W - Square Bulkhead - Opal diffuser - IP65 - 4000K - Black Base - Microwave Sensor View
XCBHWPSWOHFS 16W - Square Bulkhead - Opal diffuser - IP65 - 4000K - White Base - Microwave Sensor View
XCBHWPSBOM3HFS 16W - Square Bulkhead - Opal diffuser - IP65 - 3hrs Maintained Emergency - 4000K - Black Base - Microwave Sensor View
XCBHWPSWOM3HFS 16W - Square Bulkhead - Opal diffuser - IP65 - 3hrs Maintained Emergency - 4000K - White Base - Microwave Sensor View
XCBHWPSBOM3 16W - Square Bulkhead - Opal diffuser - IP65 - 3hrs Maintained Emergency - 4000K - Black Base View Buy
XCBHWPSBO 16W - Square Bulkhead - Opal diffuser - IP65 - 4000K - Black Base View View Buy
XCBHWPSWO 16W - Square Bulkhead - Opal diffuser - IP65 - 4000K - White Base View View Buy
XCBHWPSWOM3 16W - Square Bulkhead - Opal diffuser - IP65 - 3hrs Maintained Emergency - 4000K - White Base View Buy
XCBHWPSBPHFS 16W - Square Bulkhead - Prismatic diffuser - IP65 - 4000K - Black Base - Microwave Sensor View
XCBHWPSWPHFS 16W - Square Bulkhead - Prismatic diffuser - IP65 - 4000K - White Base - Microwave Sensor View
XCBHWPSBPM3HFS 16W - Square Bulkhead - Prismatic diffuser - IP65 - 3hrs Maintained Emergency - 4000K - Black Base - Microwave Sensor View
XCBHWPSWPM3HFS 16W - Square Bulkhead - Prismatic diffuser - IP65 - 3hrs Maintained Emergency - 4000K - White Base - Microwave Sensor View
XCBHWPSBP 16W - Square Bulkhead - Prismatic diffuser - IP65 - 4000K - Black Base View View Buy
XCBHWPSBPM3 16W - Square Bulkhead - Prismatic diffuser - IP65 - 3hrs Maintained Emergency - 4000K - Black Base View Buy
XCBHWPSWPM3 16W - Square Bulkhead - Prismatic diffuser - IP65 - 3hrs Maintained Emergency - 4000K - White Base View Buy
XCBHWPSWP 16W - Square Bulkhead - Prismatic diffuser - IP65 - 4000K - White Base View View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet Light Planner Buy Now
XCBHWPSBOHFS 16W - Square Bulkhead - Opal diffuser - IP65 - 4000K - Black Base - Microwave Sensor 16 1500 94 View
XCBHWPSWOHFS 16W - Square Bulkhead - Opal diffuser - IP65 - 4000K - White Base - Microwave Sensor 16 1500 94 View
XCBHWPSBOM3HFS 16W - Square Bulkhead - Opal diffuser - IP65 - 3hrs Maintained Emergency - 4000K - Black Base - Microwave Sensor 16 1500 94 View
XCBHWPSWOM3HFS 16W - Square Bulkhead - Opal diffuser - IP65 - 3hrs Maintained Emergency - 4000K - White Base - Microwave Sensor 16 1500 94 View
XCBHWPSBOM3 16W - Square Bulkhead - Opal diffuser - IP65 - 3hrs Maintained Emergency - 4000K - Black Base 16 1500 94 View Buy
XCBHWPSBO 16W - Square Bulkhead - Opal diffuser - IP65 - 4000K - Black Base 16 1500 94 View View Buy
XCBHWPSWO 16W - Square Bulkhead - Opal diffuser - IP65 - 4000K - White Base 16 1500 94 View View Buy
XCBHWPSWOM3 16W - Square Bulkhead - Opal diffuser - IP65 - 3hrs Maintained Emergency - 4000K - White Base 16 1500 94 View Buy
XCBHWPSBPHFS 16W - Square Bulkhead - Prismatic diffuser - IP65 - 4000K - Black Base - Microwave Sensor 16 1800 113 View
XCBHWPSWPHFS 16W - Square Bulkhead - Prismatic diffuser - IP65 - 4000K - White Base - Microwave Sensor 16 1800 113 View
XCBHWPSBPM3HFS 16W - Square Bulkhead - Prismatic diffuser - IP65 - 3hrs Maintained Emergency - 4000K - Black Base - Microwave Sensor 16 1800 113 View
XCBHWPSWPM3HFS 16W - Square Bulkhead - Prismatic diffuser - IP65 - 3hrs Maintained Emergency - 4000K - White Base - Microwave Sensor 16 1800 113 View
XCBHWPSBP 16W - Square Bulkhead - Prismatic diffuser - IP65 - 4000K - Black Base 16 1800 113 View View Buy
XCBHWPSBPM3 16W - Square Bulkhead - Prismatic diffuser - IP65 - 3hrs Maintained Emergency - 4000K - Black Base 16 1800 113 View Buy
XCBHWPSWPM3 16W - Square Bulkhead - Prismatic diffuser - IP65 - 3hrs Maintained Emergency - 4000K - White Base 16 1800 113 View Buy
XCBHWPSWP 16W - Square Bulkhead - Prismatic diffuser - IP65 - 4000K - White Base 16 1800 113 View View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description A
(mm)		 B
(mm)		 C
(mm)		 Data sheet Light Planner Buy Now
XCBHWPSBOHFS 16W - Square Bulkhead - Opal diffuser - IP65 - 4000K - Black Base - Microwave Sensor 256 256 91 View
XCBHWPSWOHFS 16W - Square Bulkhead - Opal diffuser - IP65 - 4000K - White Base - Microwave Sensor 256 256 91 View
XCBHWPSBOM3HFS 16W - Square Bulkhead - Opal diffuser - IP65 - 3hrs Maintained Emergency - 4000K - Black Base - Microwave Sensor 256 256 91 View
XCBHWPSWOM3HFS 16W - Square Bulkhead - Opal diffuser - IP65 - 3hrs Maintained Emergency - 4000K - White Base - Microwave Sensor 256 256 91 View
XCBHWPSBOM3 16W - Square Bulkhead - Opal diffuser - IP65 - 3hrs Maintained Emergency - 4000K - Black Base 256 256 93 View Buy
XCBHWPSBO 16W - Square Bulkhead - Opal diffuser - IP65 - 4000K - Black Base 256 256 93 View View Buy
XCBHWPSWO 16W - Square Bulkhead - Opal diffuser - IP65 - 4000K - White Base 256 256 93 View View Buy
XCBHWPSWOM3 16W - Square Bulkhead - Opal diffuser - IP65 - 3hrs Maintained Emergency - 4000K - White Base 256 256 93 View Buy
XCBHWPSBPHFS 16W - Square Bulkhead - Prismatic diffuser - IP65 - 4000K - Black Base - Microwave Sensor 256 256 91 View
XCBHWPSWPHFS 16W - Square Bulkhead - Prismatic diffuser - IP65 - 4000K - White Base - Microwave Sensor 256 256 91 View
XCBHWPSBPM3HFS 16W - Square Bulkhead - Prismatic diffuser - IP65 - 3hrs Maintained Emergency - 4000K - Black Base - Microwave Sensor 256 256 91 View
XCBHWPSWPM3HFS 16W - Square Bulkhead - Prismatic diffuser - IP65 - 3hrs Maintained Emergency - 4000K - White Base - Microwave Sensor 256 256 91 View
XCBHWPSBP 16W - Square Bulkhead - Prismatic diffuser - IP65 - 4000K - Black Base 256 256 93 View View Buy
XCBHWPSBPM3 16W - Square Bulkhead - Prismatic diffuser - IP65 - 3hrs Maintained Emergency - 4000K - Black Base 256 256 93 View Buy
XCBHWPSWPM3 16W - Square Bulkhead - Prismatic diffuser - IP65 - 3hrs Maintained Emergency - 4000K - White Base 256 256 93 View Buy
XCBHWPSWP 16W - Square Bulkhead - Prismatic diffuser - IP65 - 4000K - White Base 256 256 93 View View Buy

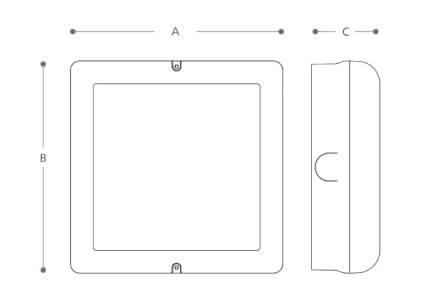

WP BULKHEAD S Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCBHWPSBOHFS 16W - Square Bulkhead - Opal diffuser - IP65 - 4000K - Black Base - Microwave Sensor Energy Class D Visit
XCBHWPSWOHFS 16W - Square Bulkhead - Opal diffuser - IP65 - 4000K - White Base - Microwave Sensor Energy Class D Visit
XCBHWPSBOM3HFS 16W - Square Bulkhead - Opal diffuser - IP65 - 3hrs Maintained Emergency - 4000K - Black Base - Microwave Sensor Energy Class D Visit
XCBHWPSWOM3HFS 16W - Square Bulkhead - Opal diffuser - IP65 - 3hrs Maintained Emergency - 4000K - White Base - Microwave Sensor Energy Class D Visit
XCBHWPSBOM3 16W - Square Bulkhead - Opal diffuser - IP65 - 3hrs Maintained Emergency - 4000K - Black Base Energy Class D View Visit
XCBHWPSBO 16W - Square Bulkhead - Opal diffuser - IP65 - 4000K - Black Base Energy Class D View Visit
XCBHWPSWO 16W - Square Bulkhead - Opal diffuser - IP65 - 4000K - White Base Energy Class D View Visit
XCBHWPSWOM3 16W - Square Bulkhead - Opal diffuser - IP65 - 3hrs Maintained Emergency - 4000K - White Base Energy Class D View Visit
XCBHWPSBPHFS 16W - Square Bulkhead - Prismatic diffuser - IP65 - 4000K - Black Base - Microwave Sensor Energy Class D Visit
XCBHWPSWPHFS 16W - Square Bulkhead - Prismatic diffuser - IP65 - 4000K - White Base - Microwave Sensor Energy Class D Visit
XCBHWPSBPM3HFS 16W - Square Bulkhead - Prismatic diffuser - IP65 - 3hrs Maintained Emergency - 4000K - Black Base - Microwave Sensor Energy Class D Visit
XCBHWPSWPM3HFS 16W - Square Bulkhead - Prismatic diffuser - IP65 - 3hrs Maintained Emergency - 4000K - White Base - Microwave Sensor
XCBHWPSBP 16W - Square Bulkhead - Prismatic diffuser - IP65 - 4000K - Black Base Energy Class D View Visit
XCBHWPSBPM3 16W - Square Bulkhead - Prismatic diffuser - IP65 - 3hrs Maintained Emergency - 4000K - Black Base Energy Class D View Visit
XCBHWPSWPM3 16W - Square Bulkhead - Prismatic diffuser - IP65 - 3hrs Maintained Emergency - 4000K - White Base Energy Class D View Visit
XCBHWPSWP 16W - Square Bulkhead - Prismatic diffuser - IP65 - 4000K - White Base Energy Class D View Visit

WP BULKHEAD S Line Drawing
