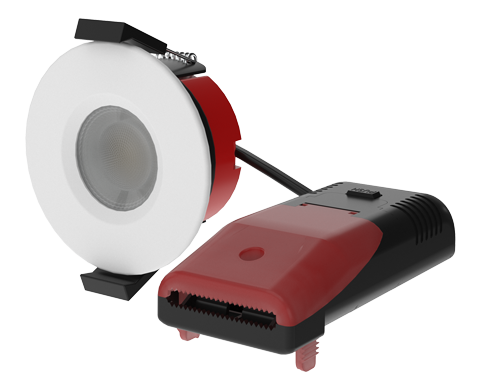

X1 FRD

Fire Rated, Recessed Colour and Wattage Selectable Downlight, with Interchangeable Magnetic Bezels

  • Suitable for domestic applications
  • Ideal for retrofit of existing halogen downlight fixtures
  • CCT [2700K,3000K,4000K,6000K] adjustable via 4-way selector switch
  • Wattage [4W,6W] adjustable via 2-way selector switch

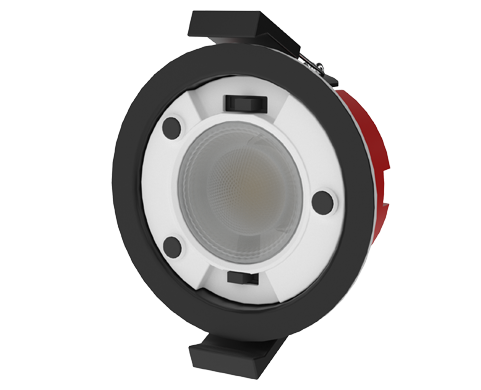

  • Easy accessible CCT and Wattage switches beneath magnetic fix bezel for quick and simple adjustment
  • 30, 60 & 90 minute fire rating with solid timber joists
  • 30 minute fire rating with Staircraft I-Joist and METAL WEB Joist [Compatibility Matrix]

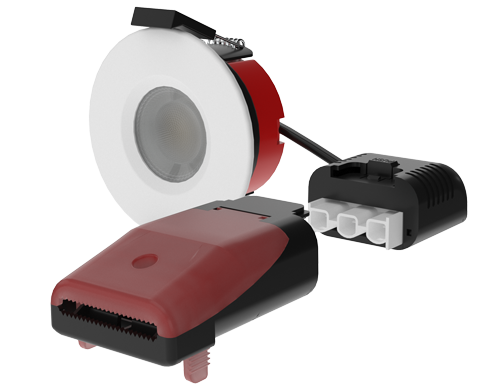

  • 2-part loop in/out push-fit terminal block for quick installation
  • Screwless terminals for quick & easy installation

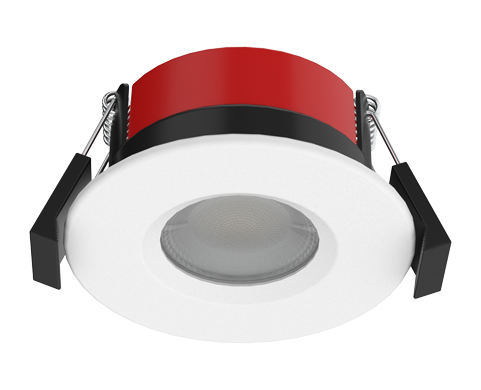

  • Supplied with white magnetic bezel as standard

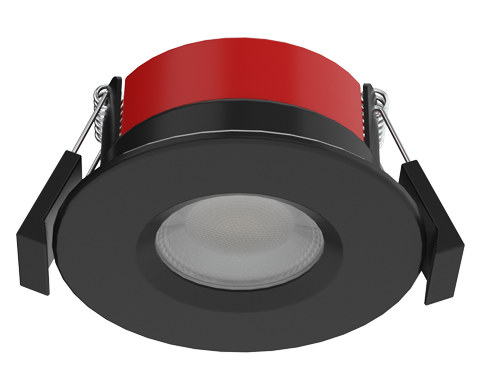

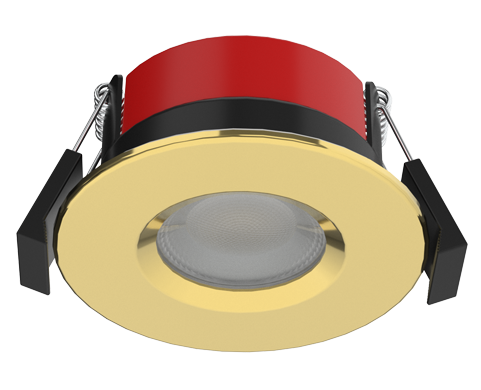

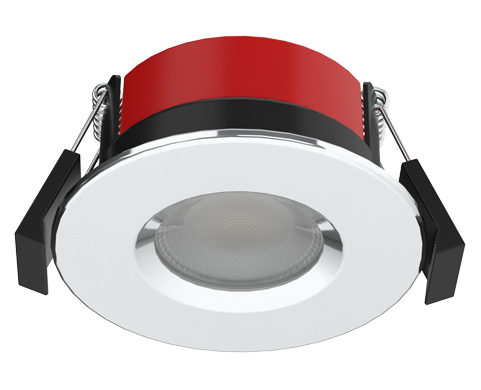

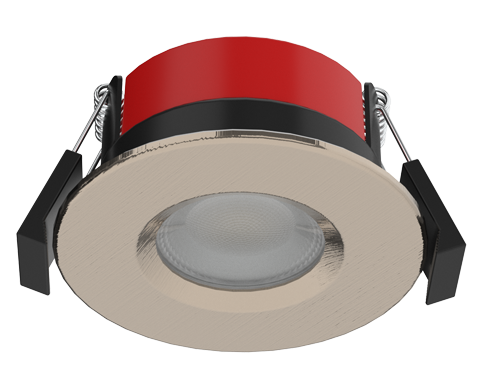

  • Interchangeable X1 Bezels and X1 Conversion plates [Sold Separately]
  • Thermally-insulating material coverable
5 Years Warranty1 Year On-Site Warranty (T&C`s Apply)IP65Fire Rated [30,60,90 minute fire rating with solid timber joists]Fire Rated I-Joist [30 minute fire rating]Fire Rated Metal Web I-Joist [30 minute fire rating]Dimmable InverseWattage SwitchableColour Switchable
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet Light Planner Buy Now
XCFRAX1W X1 FRD - 2700K-6000K + Wattage Selectable - White View View Buy
XCFRAX1W10 X1 FRD - 2700K-6000K + Wattage Selectable - White - 10 Pack View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet Light Planner Buy Now
XCFRAX1W X1 FRD - 2700K-6000K + Wattage Selectable - White 4 to 6 340 to 610 93 View View Buy
XCFRAX1W10 X1 FRD - 2700K-6000K + Wattage Selectable - White - 10 Pack 4 to 6 340 to 610 93 View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No

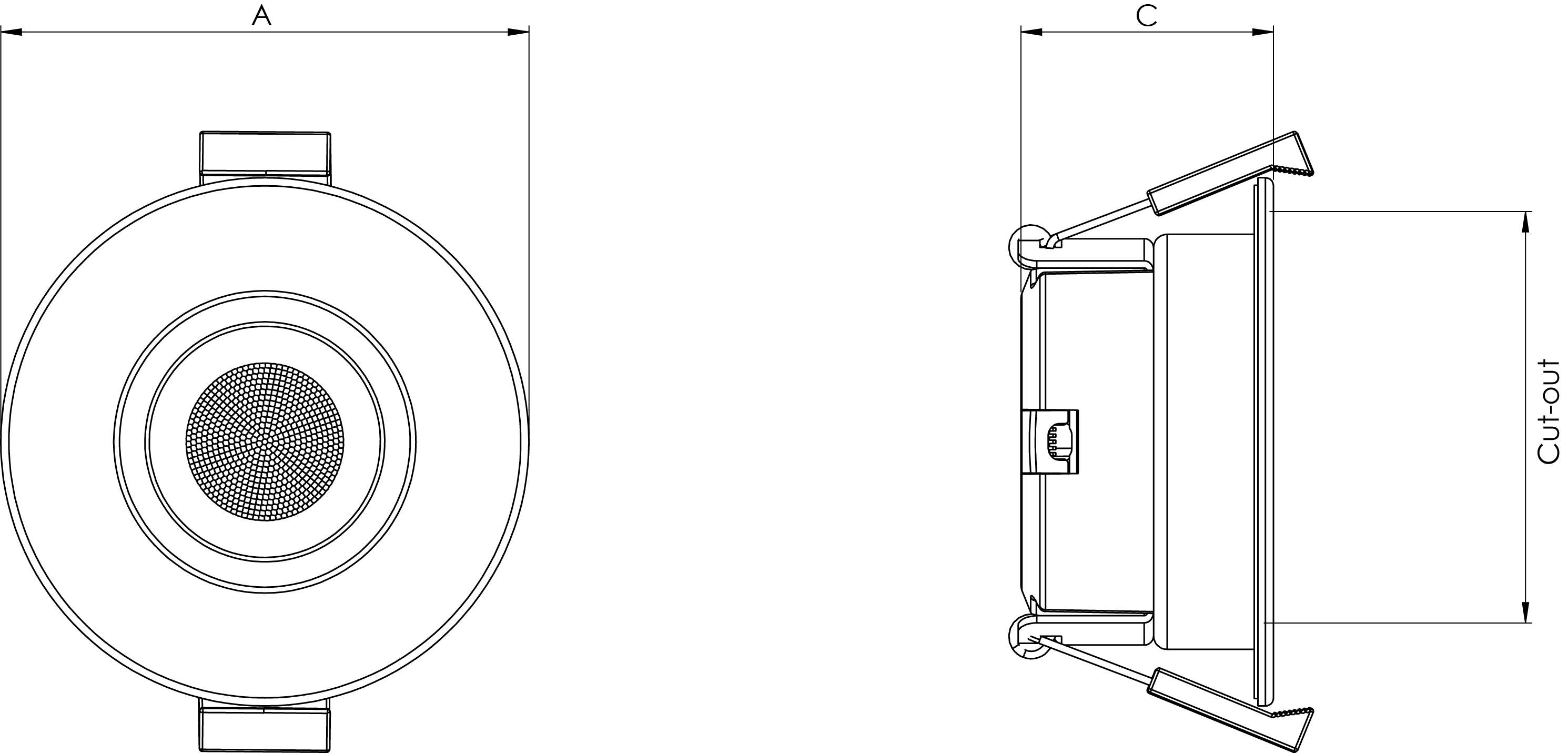

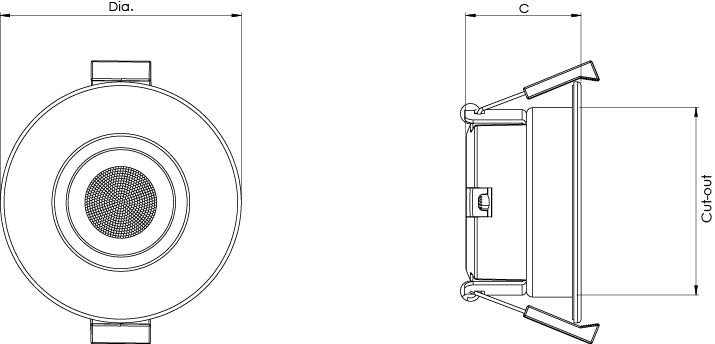

Order Code Description B
(mm)
Cut Out
(mm)
Dia.
(mm)
Data sheet Light Planner Buy Now
XCFRAX1W X1 FRD - 2700K-6000K + Wattage Selectable - White 45 70 85 View View Buy
XCFRAX1W10 X1 FRD - 2700K-6000K + Wattage Selectable - White - 10 Pack 45 70 85 View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description
XCFRAX1W X1 FRD - 2700K-6000K + Wattage Selectable - White
XCFRAX1W10 X1 FRD - 2700K-6000K + Wattage Selectable - White - 10 Pack
