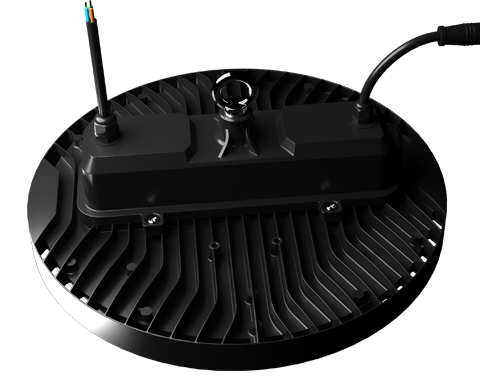

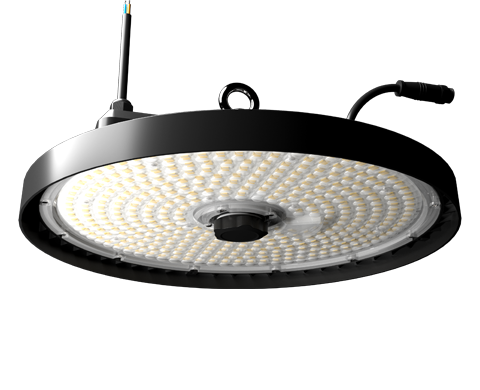

X1 HIGHBAY
Versatile cast aluminium high bay with selectable wattage, switchable CCT, and adjustable beam angles for a wide range of commercial and industrial applications.

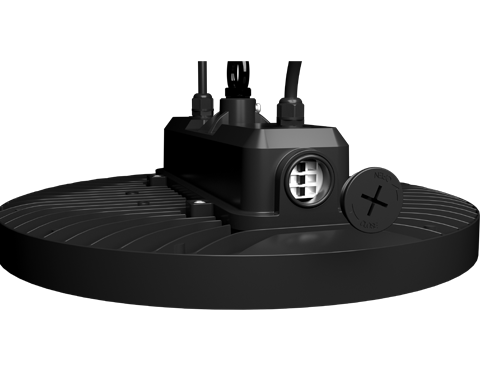

- 100W/150W/200W Selectable Wattage
Allows the light output to be tailored to suit different ceiling heights and brightness requirements. - 3000K/4000K/5000K Switchable CCT
Enables warm, neutral, or cool white lighting to be selected to suit the environment and application. - 60°/ 90°/110° Adjustable Beam Angles
Provides optimal light distribution for both open areas and narrower aisle applications. - Up To 164 lm/W Efficacy
Delivers high performance illumination whilst helping to reduce energy consumption and running costs. - Cast Aluminium Construction
Provides a hard wearing and durable solution suitable for demanding commercial and industrial environments. - Prismatic Or Aluminium Reflector Options
Allows the luminaire to be tailored for different lighting distributions and visual comfort requirements. - Eye Bolt & Stirrup Bracket Mounting Options
Offers flexible installation methods to suit a wide range of application requirements. - Sensor Options Available
Helps reduce energy consumption by automatically controlling lighting based on occupancy or daylight levels. - Emergency Options Available
Provides continued illumination during power failure to support occupant safety and safe exit.
| Order Code | Description | Data sheet | Buy Now |
|---|---|---|---|
| XCHBAX1 | X1 - 100W/150W/200W - 3000K/4000K/5000K | View |
| Order Code | Description | W | lm | lm/W | Data sheet | Buy Now |
|---|---|---|---|---|---|---|
| XCHBAX1 | X1 - 100W/150W/200W - 3000K/4000K/5000K | 100 / 150 / 200 | 15700/22900/29400 | 164 | View |
| Order Code | Description | B (mm) |
Dia. (mm) |
Data sheet | Buy Now |
|---|---|---|---|---|---|
| XCHBAX1 | X1 - 100W/150W/200W - 3000K/4000K/5000K | 140 | 330 | View |
| Order Code | Description | Energy Class | ERP Instructions |
EPREL Site |
|---|---|---|---|---|
| XCHBAX1 | X1 - 100W/150W/200W - 3000K/4000K/5000K |
|
Visit |
