X1 NON CORROSIVE

Robust, Weatherproof, Colour and Wattage Selectable Industrial Luminaire

Where to Buy

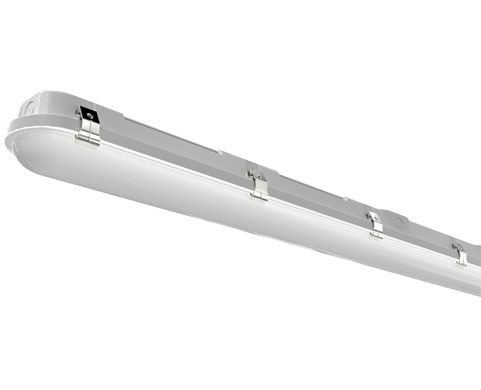

  • non corrosive main web

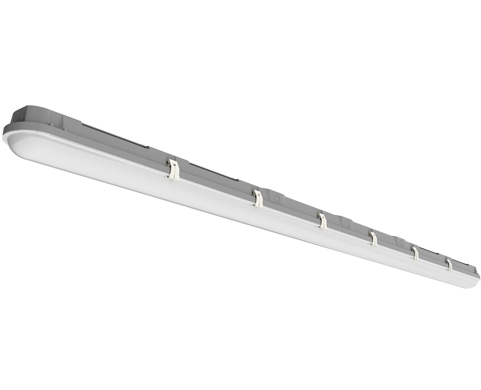

  • non corrosive main fullength

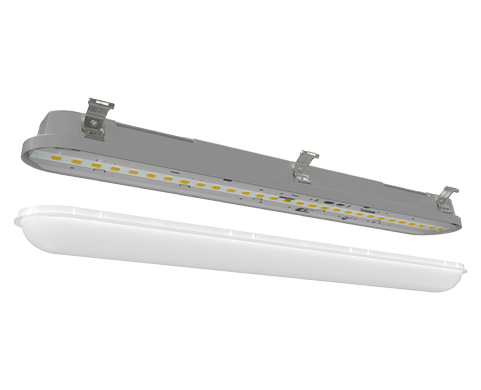

  • non corrosive open

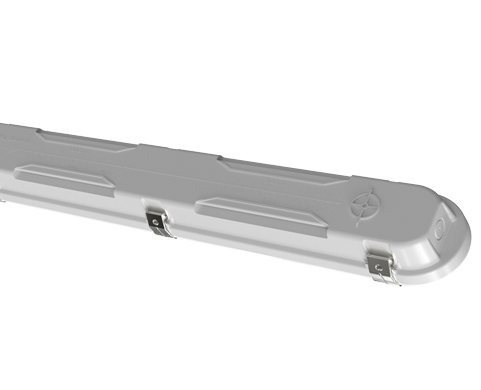

  • rear fixingpoints entrypoints

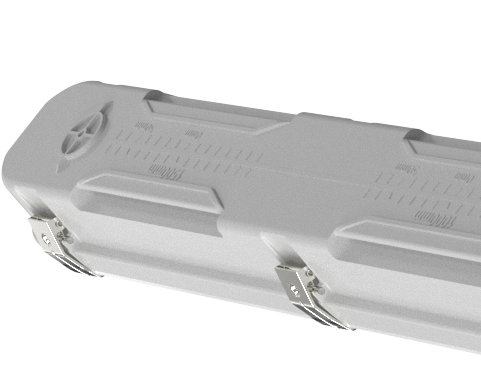

  • rear fixingpoints entrypoints2

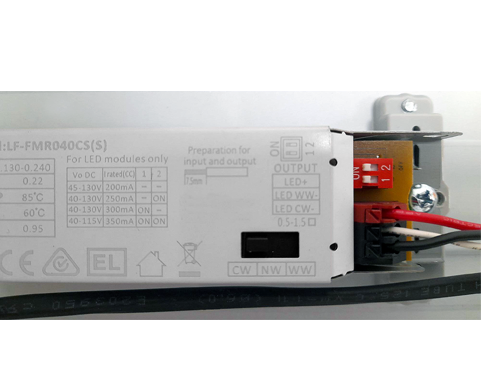

  • 3cctwattagecontrols

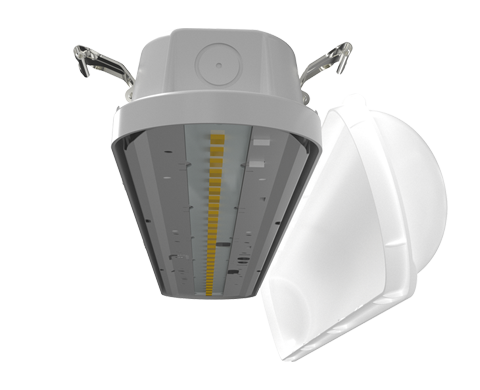

  • xcite x1 non corrosive open web
  • non corrosive main web
  • non corrosive main fullength
  • non corrosive open
  • rear fixingpoints entrypoints
  • rear fixingpoints entrypoints2
  • 3cctwattagecontrols
  • xcite x1 non corrosive open web
  • Suitable for a range of commercial and industrial applications
  • Available in 4 lengths [2ft, 4ft, 5ft, and 6ft]
  • CCT [3000K/4000K/6000K] adjustable via 3-way selector switch
  • Wattage [11 to 64] adjustable via 2-way dip switch
  • Grey polycarbonate body
  • Weatherproof IP65 construction
  • Modular microwave sensor for quick and easy conversion available
  • Position adjustable mounting clips
  • Pre-assembled emergency and sensor luminaires available
  • Conduit and BESA fixing points for end or rear cable entry
  • Stainless steel retainer clips for diffuser with anti-tamper screw
  • Loop in/out push-fit terminal block for quick installation

Note: This luminaire is not suitable for all chemical environments, please contact us for advice if this luminaire may be exposed to, oil, grease, solvents, acids, alkaline or any similar chemicals.

Tri-Colour [3000K, 4000K, 6000K]5 Years Warranty1 Year On-Site Warranty (T&C`s Apply)IP65IK08Maintained emergency 3hr (Option)Microwave sensorWattage SwitchableColour Switchable
X1 NON CORROSIVE Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet Light Planner Buy Now
XCNC2X1M3MS 600mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency - Microwave sensor View
XCNC2X1M3 600mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency View
XCNC2X1MS 600mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Microwave sensor View Buy
XCNC2X1 600mm - CCT [3000K/4000K/6000K] + Wattage Selectable View View Buy
XCNC4X1M3MS 1200mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency - Microwave sensor View Buy
XCNC4X1M3 1200mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency View Buy
XCNC4X1MS 1200mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Microwave sensor View Buy
XCNC4X1 1200mm - CCT [3000K/4000K/6000K] + Wattage Selectable View View Buy
XCNC5X1M3MS 1500mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency - Microwave sensor View Buy
XCNC5X1M3 1500mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency View Buy
XCNC5X1MS 1500mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Microwave sensor View Buy
XCNC5X1 1500mm - CCT [3000K/4000K/6000K] + Wattage Selectable View View Buy
XCNC6X1M3MS 1800mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency - Microwave sensor View Buy
XCNC6X1M3 1800mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency View Buy
XCNC6X1MS 1800mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Microwave sensor View Buy
XCNC6X1 1800mm - CCT [3000K/4000K/6000K] + Wattage Selectable View View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet Light Planner Buy Now
XCNC2X1M3MS 600mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency - Microwave sensor 11W/13W/16W/18W 1600 to 2700 151 View
XCNC2X1M3 600mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency 11W/13W/16W/18W 1600 to 2700 151 View
XCNC2X1MS 600mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Microwave sensor 11W/13W/16W/18W 1600 to 2700 151 View Buy
XCNC2X1 600mm - CCT [3000K/4000K/6000K] + Wattage Selectable 11W/13W/16W/18W 1600 to 2700 151 View View Buy
XCNC4X1M3MS 1200mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency - Microwave sensor 21W/26W/31W/36W 3500 to 5900 164 View Buy
XCNC4X1M3 1200mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency 21W/26W/31W/36W 3500 to 5900 164 View Buy
XCNC4X1MS 1200mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Microwave sensor 21W/26W/31W/36W 3500 to 5900 164 View Buy
XCNC4X1 1200mm - CCT [3000K/4000K/6000K] + Wattage Selectable 21W/26W/31W/36W 3500 to 5900 164 View View Buy
XCNC5X1M3MS 1500mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency - Microwave sensor 29W/36W/43W/50W 4700 to 7900 162 View Buy
XCNC5X1M3 1500mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency 29W/36W/43W/50W 4700 to 7900 162 View Buy
XCNC5X1MS 1500mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Microwave sensor 29W/36W/43W/50W 4700 to 7900 162 View Buy
XCNC5X1 1500mm - CCT [3000K/4000K/6000K] + Wattage Selectable 29W/36W/43W/50W 4700 to 7900 162 View View Buy
XCNC6X1M3MS 1800mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency - Microwave sensor 35W/44W/53W/62W 6000 to 10400 170 View Buy
XCNC6X1M3 1800mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency 35W/44W/53W/62W 6000 to 10400 170 View Buy
XCNC6X1MS 1800mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Microwave sensor 35W/44W/53W/62W 6000 to 10400 171 View Buy
XCNC6X1 1800mm - CCT [3000K/4000K/6000K] + Wattage Selectable 35W/44W/53W/62W 6000 to 10400 171 View View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description A
(mm)		 B
(mm)		 C
(mm)		 Fix Data sheet Light Planner Buy Now
XCNC2X1M3MS 600mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency - Microwave sensor 675 80 95 400 View
XCNC2X1M3 600mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency 675 80 95 400 View
XCNC2X1MS 600mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Microwave sensor 675 80 95 400 View Buy
XCNC2X1 600mm - CCT [3000K/4000K/6000K] + Wattage Selectable 675 80 95 400 View View Buy
XCNC4X1M3MS 1200mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency - Microwave sensor 1275 80 95 600 View Buy
XCNC4X1M3 1200mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency 1275 80 95 600 View Buy
XCNC4X1MS 1200mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Microwave sensor 1275 80 95 600 View Buy
XCNC4X1 1200mm - CCT [3000K/4000K/6000K] + Wattage Selectable 1275 80 95 600 View View Buy
XCNC5X1M3MS 1500mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency - Microwave sensor 1570 80 95 600 View Buy
XCNC5X1M3 1500mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency 1570 80 95 600 View Buy
XCNC5X1MS 1500mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Microwave sensor 1570 80 95 600 View Buy
XCNC5X1 1500mm - CCT [3000K/4000K/6000K] + Wattage Selectable 1570 80 95 600 View View Buy
XCNC6X1M3MS 1800mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency - Microwave sensor 1875 80 95 600 View Buy
XCNC6X1M3 1800mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency 1875 80 95 600 View Buy
XCNC6X1MS 1800mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Microwave sensor 1875 80 95 600 View Buy
XCNC6X1 1800mm - CCT [3000K/4000K/6000K] + Wattage Selectable 1875 80 95 600 View View Buy

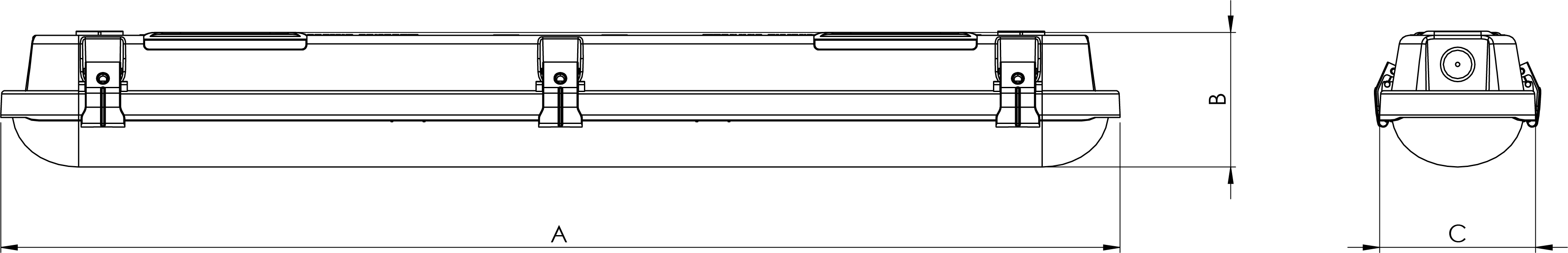

X1 NON CORROSIVE Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCNC2X1M3MS 600mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency - Microwave sensor Energy Class B Visit
XCNC2X1M3 600mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency Energy Class B Visit
XCNC2X1MS 600mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Microwave sensor Energy Class B Visit
XCNC2X1 600mm - CCT [3000K/4000K/6000K] + Wattage Selectable Energy Class B Visit
XCNC4X1M3MS 1200mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency - Microwave sensor Energy Class B Visit
XCNC4X1M3 1200mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency Energy Class B Visit
XCNC4X1MS 1200mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Microwave sensor Energy Class B Visit
XCNC4X1 1200mm - CCT [3000K/4000K/6000K] + Wattage Selectable Energy Class B Visit
XCNC5X1M3MS 1500mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency - Microwave sensor Energy Class B Visit
XCNC5X1M3 1500mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency Energy Class B Visit
XCNC5X1MS 1500mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Microwave sensor Energy Class B Visit
XCNC5X1 1500mm - CCT [3000K/4000K/6000K] + Wattage Selectable Energy Class B Visit
XCNC6X1M3MS 1800mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency - Microwave sensor Energy Class B Visit
XCNC6X1M3 1800mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency Energy Class B Visit
XCNC6X1MS 1800mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Microwave sensor Energy Class B Visit
XCNC6X1 1800mm - CCT [3000K/4000K/6000K] + Wattage Selectable Energy Class B Visit

X1 NON CORROSIVE Line Drawing
