X1 ROAD LANTERN

A colour [CCT] and wattage selectable LED road lantern designed for efficient exterior and area lighting. Hinged lid access supports easy maintenance, while controlled light distribution and durable construction deliver reliable performance.

Where to Buy

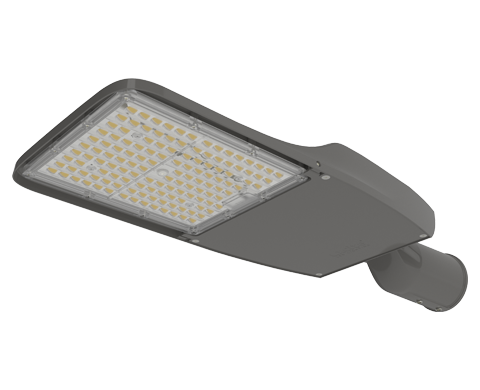

  • x1 roadlantern main

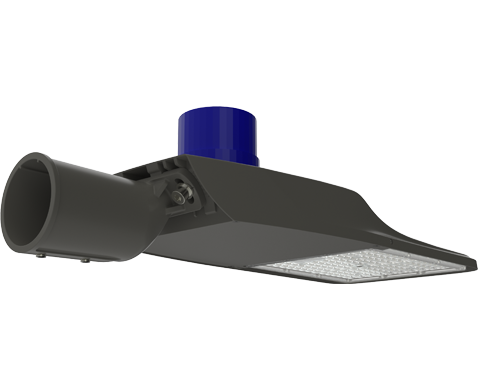

  • x1 roadlantern sensor rear

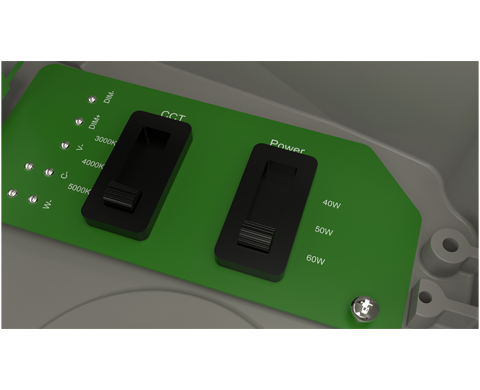

  • x1 roadlantern switch

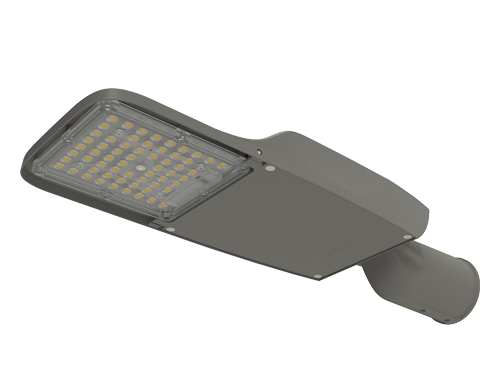

  • x1 roadlantern small main

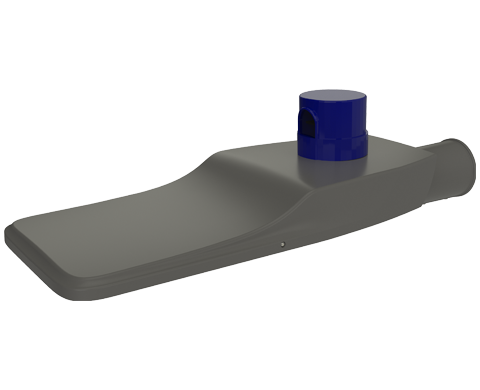

  • roadlantern sensor

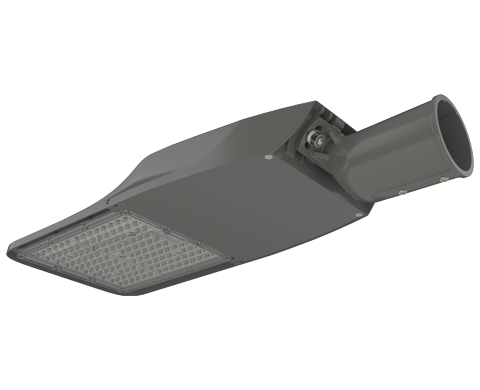

  • x1 roadlantern rear
  • x1 roadlantern main
  • x1 roadlantern sensor rear
  • x1 roadlantern switch
  • x1 roadlantern small main
  • roadlantern sensor
  • x1 roadlantern rear
Where to Buy
  • Available in regular and large sizes for a range of outdoor installations
  • Wattage [40W/50W/60W and 110W/120W/135W] adjustable via 3-way selector switch
  • CCT adjustable via 3-way selector switch [3000K/4000K/5000K]
  • Up to 149 lumens per watt efficacy
  • Clear polycarbonate diffuser
  • Aluminium body finished in grey [RAL 9007]
  • Adjustable bracket for side entry or post-top mounting [42.6mm to 60mm]
  • Wired via screwless connector inside main body
  • Photocell option available
  • Loop in/out push-fit terminal block for quick installation
Tri-Colour [3000K, 4000K, 5000K]5 Years Warranty1 Year On-Site Warranty (T&C`s Apply)IP65IK08PhotocellWattage SwitchableColour Switchable
X1 ROAD LANTERN Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet Light Planner Buy Now
XCRLSX1 CCT [3000K/4000K/5000K] + Wattage Selectable View View Buy
XCRLSX1PC CCT [3000K/4000K/5000K] + Wattage Selectable + Photocell View Buy
XCRLLX1 Large - CCT [3000K/4000K/5000K] + Wattage Selectable View View
XCRLLX1PC Large - CCT [3000K/4000K/5000K] + Wattage Selectable + Photocell View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet Light Planner Buy Now
XCRLSX1 CCT [3000K/4000K/5000K] + Wattage Selectable 40W/50W/60W 6000 to 8700 149 View View Buy
XCRLSX1PC CCT [3000K/4000K/5000K] + Wattage Selectable + Photocell 40W/50W/60W 6000 to 8700 149 View Buy
XCRLLX1 Large - CCT [3000K/4000K/5000K] + Wattage Selectable 110W/120W/135W 15800 to 18300 141 View View
XCRLLX1PC Large - CCT [3000K/4000K/5000K] + Wattage Selectable + Photocell 110W/120W/135W 15800 to 18300 141 View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description A
(mm)		 B
(mm)		 C
(mm)		 Data sheet Light Planner Buy Now
XCRLSX1 CCT [3000K/4000K/5000K] + Wattage Selectable 480 160 90 View View Buy
XCRLSX1PC CCT [3000K/4000K/5000K] + Wattage Selectable + Photocell 480 160 158 View Buy
XCRLLX1 Large - CCT [3000K/4000K/5000K] + Wattage Selectable 555 210 90 View View
XCRLLX1PC Large - CCT [3000K/4000K/5000K] + Wattage Selectable + Photocell 555 210 158 View

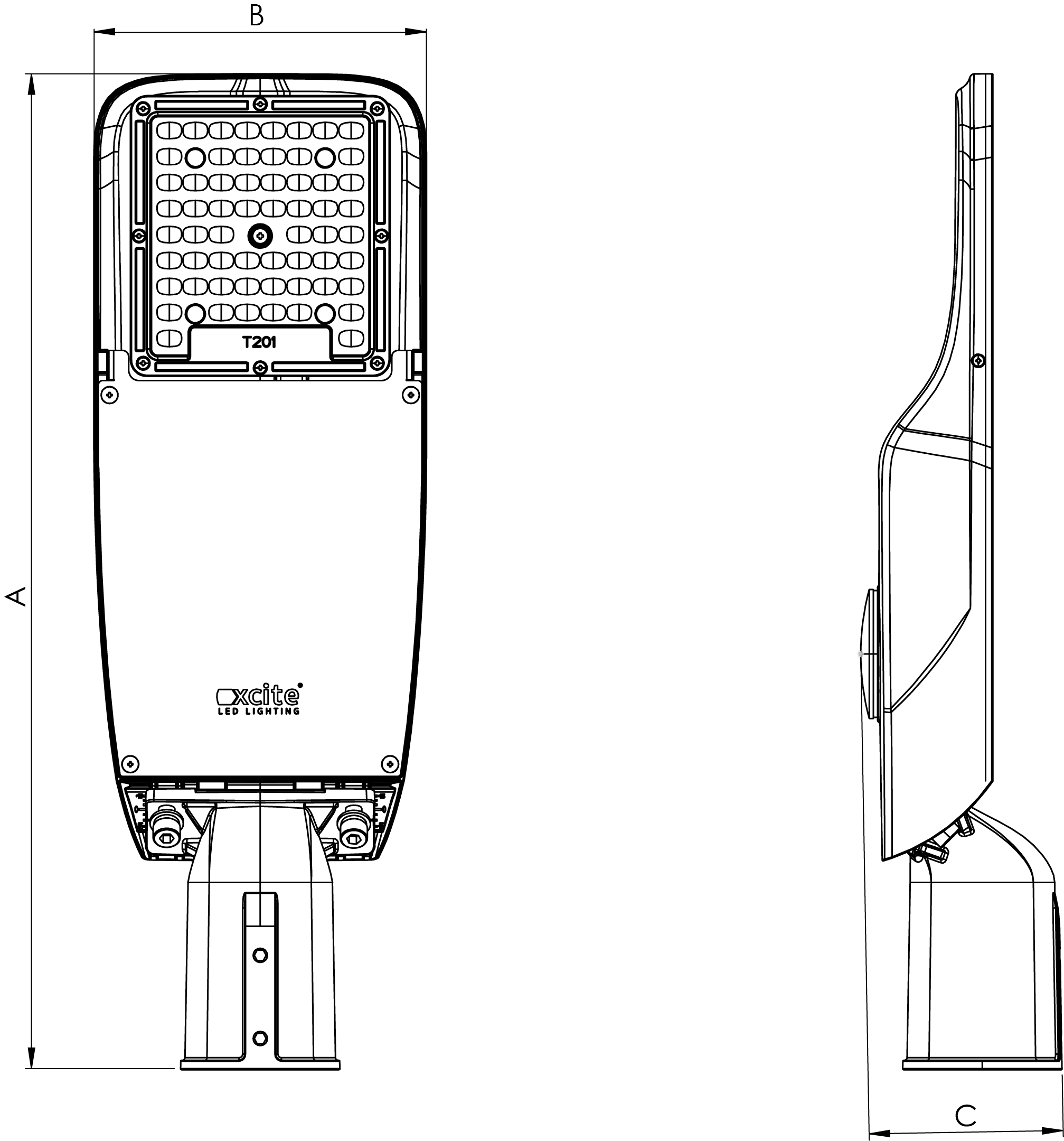

X1 ROAD LANTERN Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCRLSX1 CCT [3000K/4000K/5000K] + Wattage Selectable Energy Class B Visit
XCRLSX1PC CCT [3000K/4000K/5000K] + Wattage Selectable + Photocell Energy Class B Visit
XCRLLX1 Large - CCT [3000K/4000K/5000K] + Wattage Selectable Energy Class B Visit
XCRLLX1PC Large - CCT [3000K/4000K/5000K] + Wattage Selectable + Photocell Energy Class B Visit

X1 ROAD LANTERN Line Drawing
