DECO EBH

Exterior Eyelid Decorative Bulkead

Where to Buy

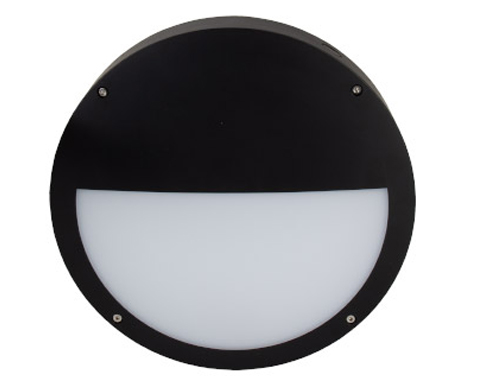

  • xcite deco bh e front

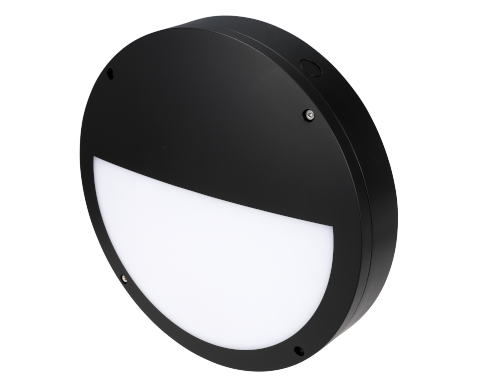

  • xcite deco bh e 2
  • xcite deco bh e front
  • xcite deco bh e 2
  • Ideal for retrofit of existing 2D fixtures
  • Suitable for exterior use, outdoor or walkways
  • Photocell option available
  • Choice of plain or eyelid optic
  • Polycarbonate body
  • Opal diffuser
  • Integral emergency option available
  • Up to 100 lumens per watt efficacy
  • Supplied as standard with neutral white [4000K] LED
4000K - NW30,000 Hours3 Years WarrantyIP65IK10Maintained emergency 3hr (Option)Photocell
DECO EBH Product Flyer Icon

Product Flyer
DECO EBH Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet Light Planner Buy Now
XCBDE11NW 11W - Decorative Eyelid Design Bulkhead - Opal Diffuser - IP65 - 4000K View View Buy
XCBDE11NWPC 11W - Decorative Eyelid Design Bulkhead - Opal Diffuser - IP65 - Photocell - 4000K View View
XCBDE11NWM3 11W - Decorative Eyelid Design Bulkhead - Opal Diffuser - IP65 - 3hrs Maintained Emergency - 4000K View View Buy
XCBDE11NWM3PC 11W - Decorative Eyelid Design Bulkhead - Opal Diffuser - IP65 - Photocell - 3hrs Maintained Emergency - 4000K View View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet Light Planner Buy Now
XCBDE11NW 11W - Decorative Eyelid Design Bulkhead - Opal Diffuser - IP65 - 4000K 11 1100 100 View View Buy
XCBDE11NWPC 11W - Decorative Eyelid Design Bulkhead - Opal Diffuser - IP65 - Photocell - 4000K 11 1100 100 View View
XCBDE11NWM3 11W - Decorative Eyelid Design Bulkhead - Opal Diffuser - IP65 - 3hrs Maintained Emergency - 4000K 11 1100 100 View View Buy
XCBDE11NWM3PC 11W - Decorative Eyelid Design Bulkhead - Opal Diffuser - IP65 - Photocell - 3hrs Maintained Emergency - 4000K 11 1100 100 View View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description C
(mm)		 Dia.
(mm)		 Data sheet Light Planner Buy Now
XCBDE11NW 11W - Decorative Eyelid Design Bulkhead - Opal Diffuser - IP65 - 4000K 60 275 View View Buy
XCBDE11NWPC 11W - Decorative Eyelid Design Bulkhead - Opal Diffuser - IP65 - Photocell - 4000K 60 275 View View
XCBDE11NWM3 11W - Decorative Eyelid Design Bulkhead - Opal Diffuser - IP65 - 3hrs Maintained Emergency - 4000K 60 275 View View Buy
XCBDE11NWM3PC 11W - Decorative Eyelid Design Bulkhead - Opal Diffuser - IP65 - Photocell - 3hrs Maintained Emergency - 4000K 60 275 View View

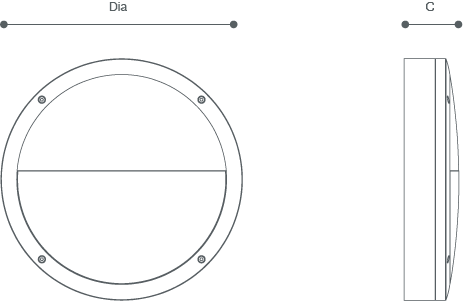

DECO EBH Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCBDE11NW 11W - Decorative Eyelid Design Bulkhead - Opal Diffuser - IP65 - 4000K Energy Class C View Visit
XCBDE11NWPC 11W - Decorative Eyelid Design Bulkhead - Opal Diffuser - IP65 - Photocell - 4000K Energy Class C View Visit
XCBDE11NWM3 11W - Decorative Eyelid Design Bulkhead - Opal Diffuser - IP65 - 3hrs Maintained Emergency - 4000K Energy Class C View Visit
XCBDE11NWM3PC 11W - Decorative Eyelid Design Bulkhead - Opal Diffuser - IP65 - Photocell - 3hrs Maintained Emergency - 4000K Energy Class C View Visit

DECO EBH Line Drawing
