DOWNLIGHT

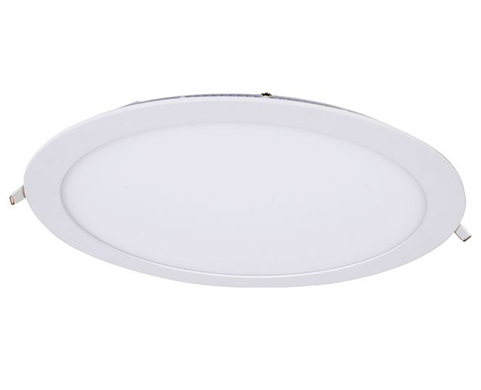

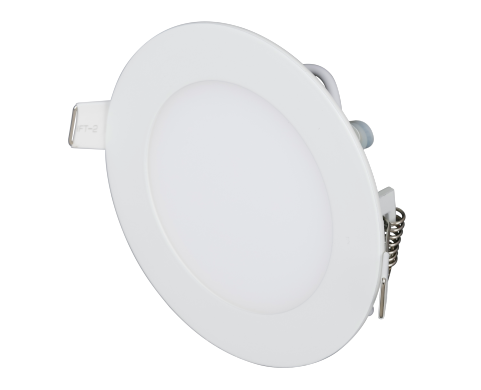

Low Profile Downlight

  • Ideal for retrofit of existing CFL Fixtures
  • Suitable for general circulation areas
  • Available in 6 sizes
  • Edge-lit LED array with ultra slim profile
  • Die-cast aluminium body
  • Opal polystyrene diffuser - TP[b]
  • Plug and play driver
  • 3 hours emergency maintained with compatible conversion box Emergency Kit
  • Up to 104 lumens per watt efficacy
  • Available in warm white [3000K], neutral white [4000K] or daylight [6000K]
3000K - WW4000K - NW6000K - DL30,000 Hours3 Years WarrantyIK03
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"50%":4000,"max":6000}
Order Code Description Data sheet Light Planner Buy Now
XCDL4WW 4W - Downlight Low Profile - IP20 - 3000K View View
XCDL4NW 4W - Downlight Low Profile - IP20 - 4000K View
XCDL4DL 4W - Downlight Low Profile - IP20 - 6000K View View Buy
XCDL8WW 8W - Downlight Low Profile - IP20 - 3000K View View
XCDL8NW 8W - Downlight Low Profile - IP20 - 4000K View Buy
XCDL8DL 8W - Downlight Low Profile - IP20 - 6000K View View
XCDL12WW 12W - Downlight Low Profile - IP20 - 3000K View View
XCDL12DL 12W - Downlight Low Profile - IP20 - 6000K View View Buy
XCDL12NW 12W - Downlight Low Profile - IP20 - 4000K View View
XCDL15WW 15W - Downlight Low Profile - IP20 - 3000K View View
XCDL15DL 15W - Downlight Low Profile - IP20 - 6000K View View
XCDL15NW 15W - Downlight Low Profile - IP20 - 4000K View View
XCDL17WW 17W - Downlight Low Profile - IP20 - 3000K View View
XCDL17NW 17W - Downlight Low Profile - IP20 - 4000K View View
XCDL17DL 17W - Downlight Low Profile - IP20 - 6000K View View
XCDL22WW 22W - Downlight Low Profile - IP20 - 3000K View View Buy
XCDL22DL 22W - Downlight Low Profile - IP20 - 6000K View View
XCDL22NW 22W - Downlight Low Profile - IP20 - 4000K View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"50%":4000,"max":6000}
Order Code Description W lm lm/W Data sheet Light Planner Buy Now
XCDL4WW 4W - Downlight Low Profile - IP20 - 3000K 4 300 75 View View
XCDL4NW 4W - Downlight Low Profile - IP20 - 4000K 4 350 88 View
XCDL4DL 4W - Downlight Low Profile - IP20 - 6000K 4 350 88 View View Buy
XCDL8WW 8W - Downlight Low Profile - IP20 - 3000K 8 600 75 View View
XCDL8NW 8W - Downlight Low Profile - IP20 - 4000K 8 650 81 View Buy
XCDL8DL 8W - Downlight Low Profile - IP20 - 6000K 8 650 81 View View
XCDL12WW 12W - Downlight Low Profile - IP20 - 3000K 12 1050 88 View View
XCDL12DL 12W - Downlight Low Profile - IP20 - 6000K 12 1100 92 View View Buy
XCDL12NW 12W - Downlight Low Profile - IP20 - 4000K 12 1100 92 View View
XCDL15WW 15W - Downlight Low Profile - IP20 - 3000K 15 1300 87 View View
XCDL15DL 15W - Downlight Low Profile - IP20 - 6000K 15 1350 104 View View
XCDL15NW 15W - Downlight Low Profile - IP20 - 4000K 15 1350 90 View View
XCDL17WW 17W - Downlight Low Profile - IP20 - 3000K 17 1450 85 View View
XCDL17NW 17W - Downlight Low Profile - IP20 - 4000K 17 1650 97 View View
XCDL17DL 17W - Downlight Low Profile - IP20 - 6000K 17 1650 97 View View
XCDL22WW 22W - Downlight Low Profile - IP20 - 3000K 22 2050 93 View View Buy
XCDL22DL 22W - Downlight Low Profile - IP20 - 6000K 22 2250 102 View View
XCDL22NW 22W - Downlight Low Profile - IP20 - 4000K 22 2250 102 View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"50%":4000,"max":6000}

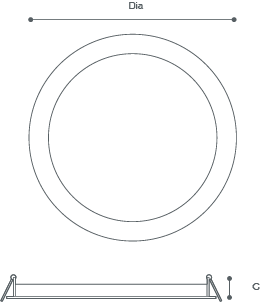

Order Code Description C
(mm)
Cut Out
(mm)
Dia.
(mm)
Data sheet Light Planner Buy Now
XCDL4WW 4W - Downlight Low Profile - IP20 - 3000K 25 72 90 View View
XCDL4NW 4W - Downlight Low Profile - IP20 - 4000K 25 72 90 View
XCDL4DL 4W - Downlight Low Profile - IP20 - 6000K 25 72 90 View View Buy
XCDL8WW 8W - Downlight Low Profile - IP20 - 3000K 25 107 120 View View
XCDL8NW 8W - Downlight Low Profile - IP20 - 4000K 25 107 120 View Buy
XCDL8DL 8W - Downlight Low Profile - IP20 - 6000K 25 107 120 View View
XCDL12WW 12W - Downlight Low Profile - IP20 - 3000K 25 156 170 View View
XCDL12DL 12W - Downlight Low Profile - IP20 - 6000K 25 156 170 View View Buy
XCDL12NW 12W - Downlight Low Profile - IP20 - 4000K 25 156 170 View View
XCDL15WW 15W - Downlight Low Profile - IP20 - 3000K 25 185 200 View View
XCDL15DL 15W - Downlight Low Profile - IP20 - 6000K 25 185 200 View View
XCDL15NW 15W - Downlight Low Profile - IP20 - 4000K 25 185 200 View View
XCDL17WW 17W - Downlight Low Profile - IP20 - 3000K 25 225 238 View View
XCDL17NW 17W - Downlight Low Profile - IP20 - 4000K 25 225 238 View View
XCDL17DL 17W - Downlight Low Profile - IP20 - 6000K 25 225 238 View View
XCDL22WW 22W - Downlight Low Profile - IP20 - 3000K 25 280 296 View View Buy
XCDL22DL 22W - Downlight Low Profile - IP20 - 6000K 25 280 296 View View
XCDL22NW 22W - Downlight Low Profile - IP20 - 4000K 25 280 296 View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"50%":4000,"max":6000}
Order Code Description Energy Class ERP
Instructions
EPREL Site
XCDL4WW 4W - Downlight Low Profile - IP20 - 3000K Energy Class E View Visit
XCDL4NW 4W - Downlight Low Profile - IP20 - 4000K Energy Class D View Visit
XCDL4DL 4W - Downlight Low Profile - IP20 - 6000K Energy Class D View Visit
XCDL8WW 8W - Downlight Low Profile - IP20 - 3000K Energy Class E View Visit
XCDL8NW 8W - Downlight Low Profile - IP20 - 4000K Energy Class E View Visit
XCDL8DL 8W - Downlight Low Profile - IP20 - 6000K Energy Class E View Visit
XCDL12WW 12W - Downlight Low Profile - IP20 - 3000K Energy Class D View Visit
XCDL12DL 12W - Downlight Low Profile - IP20 - 6000K Energy Class D View Visit
XCDL12NW 12W - Downlight Low Profile - IP20 - 4000K Energy Class D View Visit
XCDL15WW 15W - Downlight Low Profile - IP20 - 3000K Energy Class D View Visit
XCDL15DL 15W - Downlight Low Profile - IP20 - 6000K Energy Class D View Visit
XCDL15NW 15W - Downlight Low Profile - IP20 - 4000K Energy Class D View Visit
XCDL17WW 17W - Downlight Low Profile - IP20 - 3000K Energy Class D View Visit
XCDL17NW 17W - Downlight Low Profile - IP20 - 4000K Energy Class C View Visit
XCDL17DL 17W - Downlight Low Profile - IP20 - 6000K Energy Class C View Visit
XCDL22WW 22W - Downlight Low Profile - IP20 - 3000K Energy Class D View Visit
XCDL22DL 22W - Downlight Low Profile - IP20 - 6000K Energy Class C View Visit
XCDL22NW 22W - Downlight Low Profile - IP20 - 4000K Energy Class C View Visit
