PANEL BL

Recessed Backlit Panel

Where to Buy
  • xcite panel bl

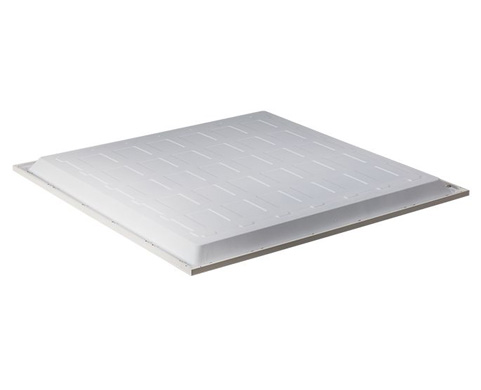

  • xcite panel bl top
  • xcite panel bl
  • xcite panel bl top
  • Ideal for retrofit of existing T5 or T8 fixtures
  • Suitable for offices and schools
  • Backlit recessed module
  • Dimmable (switch dim) versions available
  • Compatible with Panel Frame and Surface Panel Frame
  • More consistent and uniform appearance than traditional edge-lit panels or downlights
  • Extruded aluminium frame
  • High performance opal TP[b] diffuser
  • Plug and play driver
  • Supplied in warm white [3000K], neutral white [4000K], cool white [5000K] or daylight [6000K]
  • Please note daylight [6000K] warm white [3000K] is only available in 600mm x 600mm
  • 3 hours emergency maintained with compatible conversion box Emergency Kit
  • Up to 106 lumens per watt efficacy
3000K - WW4000K - NW5000K - CW6000K - DL30,000 Hours5 Years Warranty1 Year On-Site Warranty (T&C`s Apply)IK03Dimmable DALI gear
PANEL BL Product Flyer Icon

Product Flyer
PANEL BL Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"33%":4000,"66%":5000,"max":6000}
Order Code Description Data sheet Light Planner Buy Now
XCBLP6630DL 30W - Recessed Backlit Panel - 600mm x 600mm - 6000K View View Buy
XCBLP6630CW 30W - Recessed Backlit Panel - 600mm x 600mm - 5000K View View Buy
XCBLP6630WW 30W - Recessed Backlit Panel - 600mm x 600mm - 3000K View View Buy
XCBLP6630NW 30W - Recessed Backlit Panel - 600mm x 600mm - 4000K View View Buy
XCBLP6630NWD 30W - Recessed Backlit Panel - 600mm x 600mm - 4000K - Dimmable View
XCBLP6630DLD 30W - Recessed Backlit Panel - 600mm x 600mm - 6000K - Dimmable View
XCBLP12650CW 50W - Recessed Backlit Panel - 1200mm x 600mm - 5000K View View Buy
XCBLP12650DL 50W - Recessed Backlit Panel - 1200mm x 600mm - 6000K View View Buy
XCBLP12650NW 50W - Recessed Backlit Panel - 1200mm x 600mm - 4000K View View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"33%":4000,"66%":5000,"max":6000}
Order Code Description W lm lm/W Data sheet Light Planner Buy Now
XCBLP6630DL 30W - Recessed Backlit Panel - 600mm x 600mm - 6000K 30 3000 100 View View Buy
XCBLP6630CW 30W - Recessed Backlit Panel - 600mm x 600mm - 5000K 30 3000 100 View View Buy
XCBLP6630WW 30W - Recessed Backlit Panel - 600mm x 600mm - 3000K 30 3000 100 View View Buy
XCBLP6630NW 30W - Recessed Backlit Panel - 600mm x 600mm - 4000K 30 3000 100 View View Buy
XCBLP6630NWD 30W - Recessed Backlit Panel - 600mm x 600mm - 4000K - Dimmable 30 3000 100 View
XCBLP6630DLD 30W - Recessed Backlit Panel - 600mm x 600mm - 6000K - Dimmable 30 3000 100 View
XCBLP12650CW 50W - Recessed Backlit Panel - 1200mm x 600mm - 5000K 50 5300 106 View View Buy
XCBLP12650DL 50W - Recessed Backlit Panel - 1200mm x 600mm - 6000K 50 5300 106 View View Buy
XCBLP12650NW 50W - Recessed Backlit Panel - 1200mm x 600mm - 4000K 50 5300 106 View View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"33%":4000,"66%":5000,"max":6000}
Order Code Description A
(mm)		 B
(mm)		 C
(mm)		 Data sheet Light Planner Buy Now
XCBLP6630DL 30W - Recessed Backlit Panel - 600mm x 600mm - 6000K 595 595 35 View View Buy
XCBLP6630CW 30W - Recessed Backlit Panel - 600mm x 600mm - 5000K 595 595 35 View View Buy
XCBLP6630WW 30W - Recessed Backlit Panel - 600mm x 600mm - 3000K 595 595 35 View View Buy
XCBLP6630NW 30W - Recessed Backlit Panel - 600mm x 600mm - 4000K 595 595 35 View View Buy
XCBLP6630NWD 30W - Recessed Backlit Panel - 600mm x 600mm - 4000K - Dimmable 595 595 35 View
XCBLP6630DLD 30W - Recessed Backlit Panel - 600mm x 600mm - 6000K - Dimmable 595 595 35 View
XCBLP12650CW 50W - Recessed Backlit Panel - 1200mm x 600mm - 5000K 1195 595 35 View View Buy
XCBLP12650DL 50W - Recessed Backlit Panel - 1200mm x 600mm - 6000K 1195 595 35 View View Buy
XCBLP12650NW 50W - Recessed Backlit Panel - 1200mm x 600mm - 4000K 1195 595 35 View View Buy

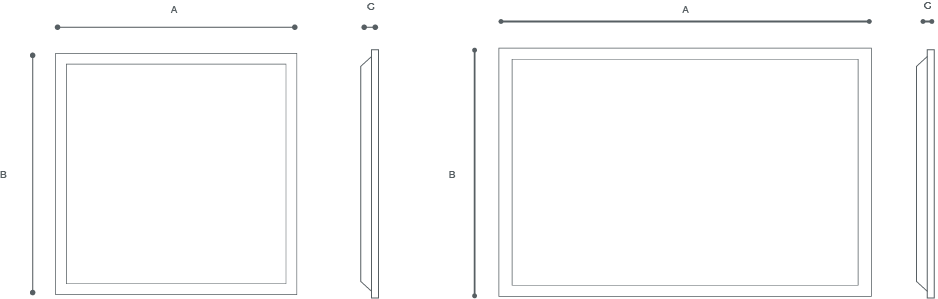

PANEL BL Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"33%":4000,"66%":5000,"max":6000}
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCBLP6630DL 30W - Recessed Backlit Panel - 600mm x 600mm - 6000K Energy Class E View Visit
XCBLP6630CW 30W - Recessed Backlit Panel - 600mm x 600mm - 5000K Energy Class E View Visit
XCBLP6630WW 30W - Recessed Backlit Panel - 600mm x 600mm - 3000K Energy Class E View Visit
XCBLP6630NW 30W - Recessed Backlit Panel - 600mm x 600mm - 4000K Energy Class E View Visit
XCBLP6630NWD 30W - Recessed Backlit Panel - 600mm x 600mm - 4000K - Dimmable Energy Class E View Visit
XCBLP6630DLD 30W - Recessed Backlit Panel - 600mm x 600mm - 6000K - Dimmable Energy Class E View Visit
XCBLP12650CW 50W - Recessed Backlit Panel - 1200mm x 600mm - 5000K Energy Class D View Visit
XCBLP12650DL 50W - Recessed Backlit Panel - 1200mm x 600mm - 6000K Energy Class D View Visit
XCBLP12650NW 50W - Recessed Backlit Panel - 1200mm x 600mm - 4000K Energy Class D View Visit

PANEL BL Line Drawing
