PANEL

Recessed Edge-lit Panel

Where to Buy

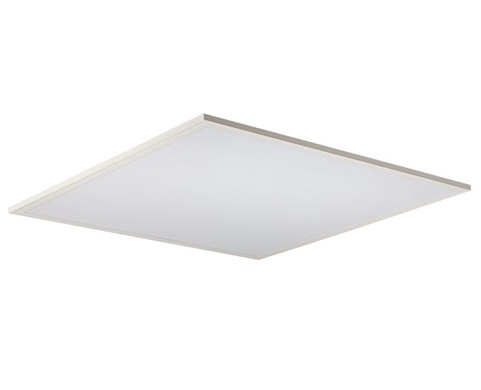

  • xcite panel bl

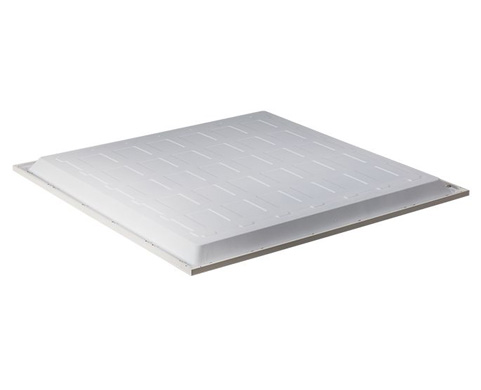

  • xcite panel bl top
  • xcite panel bl
  • xcite panel bl top
  • Ideal for retrofit of existing T5 or T8 fixtures
  • Suitable for offices and schools
  • 2 sizes available with 2.5mm light guide
  • Compatible with Panel Frame and Surface Panel Frame
  • Extruded aluminium frame
  • High performance opal TP[b] diffuser
  • Plug and play driver
  • Emergency option available
  • Supplied in warm white [3000K], neutral white [4000K], cool white [5000K] or daylight [6000K]
  • 3 hours emergency maintained with compatible conversion box Emergency Kit
  • Up to 100 lumens per watt efficacy
3000K - WW4000K - NW5000K - CW6000K - DL30,000 Hours3 Years WarrantyIK03
PANEL Product Flyer Icon

Product Flyer
PANEL Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"33%":4000,"66%":5000,"max":6000}
Order Code Description Data sheet Light Planner Buy Now
XCRP6630DL 30W - Recessed Edge-lit Panel - 600mm x 600mm - 6000K View View
XCRP6630NW 30W - Recessed Edge-lit Panel - 600mm x 600mm - 4000K View View Buy
XCRP6630WW 30W - Recessed Edge-lit Panel - 600mm x 600mm - 3000K View View
XCRP6630CW 30W - Recessed Edge-lit Panel - 600mm x 600mm - 5000K View View
XCRP12650CW 50W - Recessed Edge-lit Panel - 1200mm x 600mm - 5000K View View
XCRP12650DL 50W - Recessed Edge-lit Panel - 1200mm x 600mm - 6000K View View
XCRP12650NW 50W - Recessed Edge-lit Panel - 1200mm x 600mm - 4000K View View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"33%":4000,"66%":5000,"max":6000}
Order Code Description W lm lm/W Data sheet Light Planner Buy Now
XCRP6630DL 30W - Recessed Edge-lit Panel - 600mm x 600mm - 6000K 30 3000 100 View View
XCRP6630NW 30W - Recessed Edge-lit Panel - 600mm x 600mm - 4000K 30 3000 100 View View Buy
XCRP6630WW 30W - Recessed Edge-lit Panel - 600mm x 600mm - 3000K 30 3000 100 View View
XCRP6630CW 30W - Recessed Edge-lit Panel - 600mm x 600mm - 5000K 30 3000 100 View View
XCRP12650CW 50W - Recessed Edge-lit Panel - 1200mm x 600mm - 5000K 50 5000 100 View View
XCRP12650DL 50W - Recessed Edge-lit Panel - 1200mm x 600mm - 6000K 50 5000 100 View View
XCRP12650NW 50W - Recessed Edge-lit Panel - 1200mm x 600mm - 4000K 50 5000 100 View View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"33%":4000,"66%":5000,"max":6000}
Order Code Description A
(mm)		 B
(mm)		 C
(mm)		 Data sheet Light Planner Buy Now
XCRP6630DL 30W - Recessed Edge-lit Panel - 600mm x 600mm - 6000K 595 595 10 View View
XCRP6630NW 30W - Recessed Edge-lit Panel - 600mm x 600mm - 4000K 595 595 10 View View Buy
XCRP6630WW 30W - Recessed Edge-lit Panel - 600mm x 600mm - 3000K 595 595 10 View View
XCRP6630CW 30W - Recessed Edge-lit Panel - 600mm x 600mm - 5000K 595 595 10 View View
XCRP12650CW 50W - Recessed Edge-lit Panel - 1200mm x 600mm - 5000K 1195 595 10 View View
XCRP12650DL 50W - Recessed Edge-lit Panel - 1200mm x 600mm - 6000K 1195 595 10 View View
XCRP12650NW 50W - Recessed Edge-lit Panel - 1200mm x 600mm - 4000K 1195 595 10 View View Buy

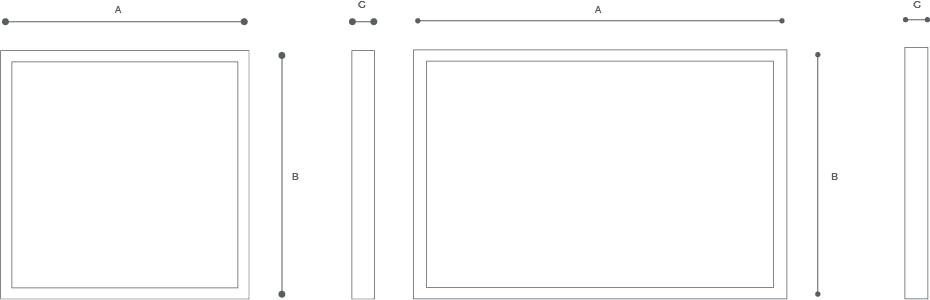

PANEL Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"33%":4000,"66%":5000,"max":6000}
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCRP6630DL 30W - Recessed Edge-lit Panel - 600mm x 600mm - 6000K Energy Class E View Visit
XCRP6630NW 30W - Recessed Edge-lit Panel - 600mm x 600mm - 4000K Energy Class E View Visit
XCRP6630WW 30W - Recessed Edge-lit Panel - 600mm x 600mm - 3000K Energy Class E View Visit
XCRP6630CW 30W - Recessed Edge-lit Panel - 600mm x 600mm - 5000K Energy Class E View Visit
XCRP12650CW 50W - Recessed Edge-lit Panel - 1200mm x 600mm - 5000K Energy Class D View Visit
XCRP12650DL 50W - Recessed Edge-lit Panel - 1200mm x 600mm - 6000K Energy Class D View Visit
XCRP12650NW 50W - Recessed Edge-lit Panel - 1200mm x 600mm - 4000K Energy Class D View Visit

PANEL Line Drawing
