WALLPACK

(This product is now obsolete)

High Output Wall Light

Where to Buy
  • xcite wallpack
  • xcite wallpack side

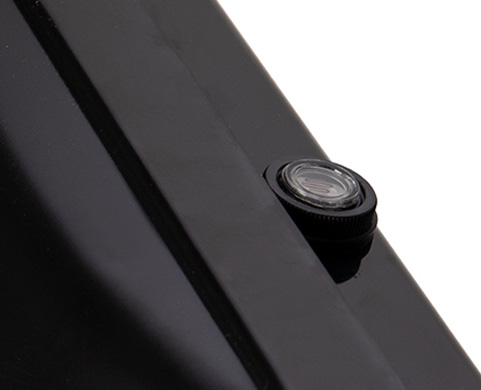

  • xcite wallpack photocell
  • xcite wallpack
  • xcite wallpack side
  • xcite wallpack photocell
  • Ideal for retrofit of HID discharge wallpacks
  • Suitable for exterior walls and entrance areas
  • Sensor options available
  • Photocell option available
  • Polycarbonate body and diffuser
  • Integral emergency option available
  • Up to 70 lumens per watt efficacy
  • Supplied as standard with neutral white [4000K] LED
4000K - NW30,000 Hours5 Years Warranty1 Year On-Site Warranty (T&C`s Apply)IP65IK08Maintained emergency 3hr (Option)Microwave SensorPhotocell
WALLPACK Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet Buy Now
XCWL23NWHFSM3 23W - Bulkhead High Output Wall Pack - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K View
XCWL23NWPCM3 23W - Bulkhead High Output Wall Pack - IP65 - Photocell - 3hrs Maintained Emergency - 4000K View
XCWL23NWHFSPCM3 23W - Bulkhead High Output Wall Pack - IP65 - Microwave Sensor - Photocell - 3hrs Maintained Emergency - 4000K View
XCWL23NWPC 23W - Bulkhead High Output Wall Pack - IP65 - Photocell - 4000K View Buy
XCWL23NWHFS 23W - Bulkhead High Output Wall Pack - IP65 - Microwave Sensor - 4000K View
XCWL23NWM3 23W - Bulkhead High Output Wall Pack - IP65 - 3hrs Maintained Emergency - 4000K View
XCWL23NW 23W - Bulkhead High Output Wall Pack - IP65 - 4000K View Buy
XCWL23NWHFSPC 23W - Bulkhead High Output Wall Pack - IP65 - Microwave Sensor - Photocell - 4000K View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet Buy Now
XCWL23NWHFSM3 23W - Bulkhead High Output Wall Pack - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K 23 1600 70 View
XCWL23NWPCM3 23W - Bulkhead High Output Wall Pack - IP65 - Photocell - 3hrs Maintained Emergency - 4000K 23 1600 70 View
XCWL23NWHFSPCM3 23W - Bulkhead High Output Wall Pack - IP65 - Microwave Sensor - Photocell - 3hrs Maintained Emergency - 4000K 23 1600 70 View
XCWL23NWPC 23W - Bulkhead High Output Wall Pack - IP65 - Photocell - 4000K 23 1600 70 View Buy
XCWL23NWHFS 23W - Bulkhead High Output Wall Pack - IP65 - Microwave Sensor - 4000K 23 1600 70 View
XCWL23NWM3 23W - Bulkhead High Output Wall Pack - IP65 - 3hrs Maintained Emergency - 4000K 23 1600 70 View
XCWL23NW 23W - Bulkhead High Output Wall Pack - IP65 - 4000K 23 1600 70 View Buy
XCWL23NWHFSPC 23W - Bulkhead High Output Wall Pack - IP65 - Microwave Sensor - Photocell - 4000K 23 1600 70 View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description A
(mm)		 B
(mm)		 C
(mm)		 Data sheet Buy Now
XCWL23NWHFSM3 23W - Bulkhead High Output Wall Pack - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K 307 257 105 View
XCWL23NWPCM3 23W - Bulkhead High Output Wall Pack - IP65 - Photocell - 3hrs Maintained Emergency - 4000K 307 257 105 View
XCWL23NWHFSPCM3 23W - Bulkhead High Output Wall Pack - IP65 - Microwave Sensor - Photocell - 3hrs Maintained Emergency - 4000K 307 257 105 View
XCWL23NWPC 23W - Bulkhead High Output Wall Pack - IP65 - Photocell - 4000K 307 257 105 View Buy
XCWL23NWHFS 23W - Bulkhead High Output Wall Pack - IP65 - Microwave Sensor - 4000K 307 257 105 View
XCWL23NWM3 23W - Bulkhead High Output Wall Pack - IP65 - 3hrs Maintained Emergency - 4000K 307 257 105 View
XCWL23NW 23W - Bulkhead High Output Wall Pack - IP65 - 4000K 307 257 105 View Buy
XCWL23NWHFSPC 23W - Bulkhead High Output Wall Pack - IP65 - Microwave Sensor - Photocell - 4000K 307 257 105 View

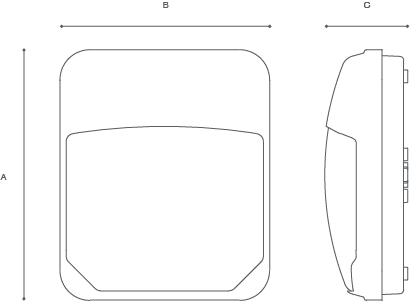

WALLPACK Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCWL23NWHFSM3 23W - Bulkhead High Output Wall Pack - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K Energy Class D View Visit
XCWL23NWPCM3 23W - Bulkhead High Output Wall Pack - IP65 - Photocell - 3hrs Maintained Emergency - 4000K Energy Class D View Visit
XCWL23NWHFSPCM3 23W - Bulkhead High Output Wall Pack - IP65 - Microwave Sensor - Photocell - 3hrs Maintained Emergency - 4000K Energy Class D View Visit
XCWL23NWPC 23W - Bulkhead High Output Wall Pack - IP65 - Photocell - 4000K Energy Class D View Visit
XCWL23NWHFS 23W - Bulkhead High Output Wall Pack - IP65 - Microwave Sensor - 4000K Energy Class D View Visit
XCWL23NWM3 23W - Bulkhead High Output Wall Pack - IP65 - 3hrs Maintained Emergency - 4000K Energy Class D View Visit
XCWL23NW 23W - Bulkhead High Output Wall Pack - IP65 - 4000K Energy Class D View Visit
XCWL23NWHFSPC 23W - Bulkhead High Output Wall Pack - IP65 - Microwave Sensor - Photocell - 4000K Energy Class D View Visit

WALLPACK Line Drawing
