X1 BULKHEAD

Colour and Wattage Selectable Wall or Ceiling-Mounted Luminaire for Domestic and Commercial Applications

Where to Buy

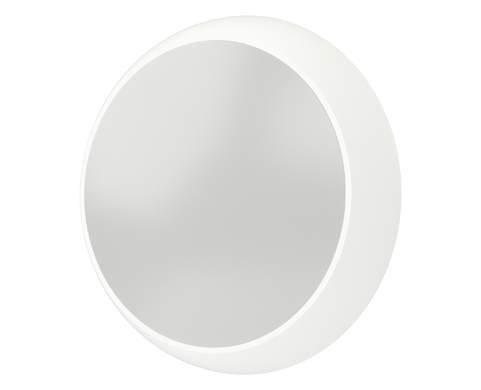

  • bulkhead x1 main

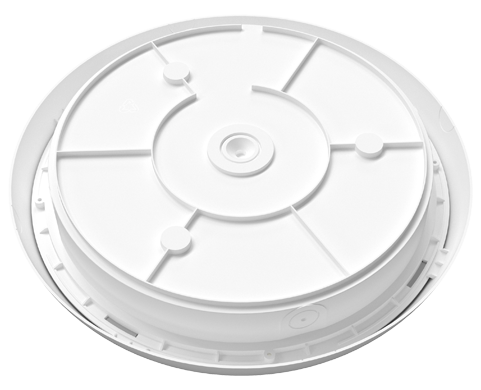

  • bulkhead x1 rear
  • bulkhead x1 tiltedgeartray2
  • knockout and mounting point
  • screw lock
  • 3cct wattage modularsensor empack
  • bulkhead x1 main
  • bulkhead x1 rear
  • bulkhead x1 tiltedgeartray2
  • knockout and mounting point
  • screw lock
  • 3cct wattage modularsensor empack
  • Suitable for most domestic and commercial applications
  • CCT [3000K/4000K/6000K] adjustable via 3-way selector switch
  • Manufactured from durable thermoplastic materials
  • Wattage [8W,12W,16W] adjustable via 3-way selector switch

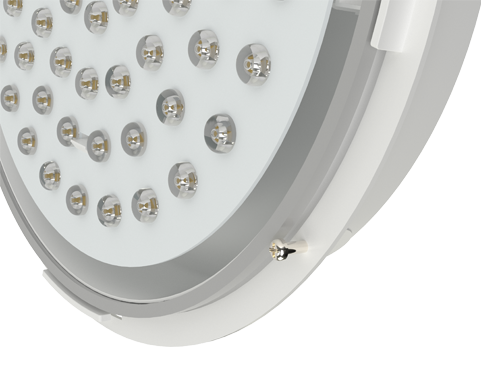

  • Twist On/Off diffuser with screwlock suitable for public spaces

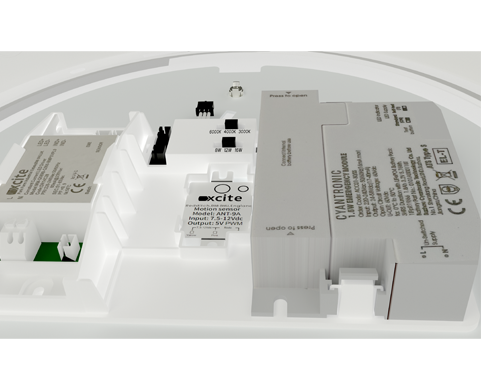

  • Modular emergency and microwave sensor's available for quick and easy conversion of a standard fitting

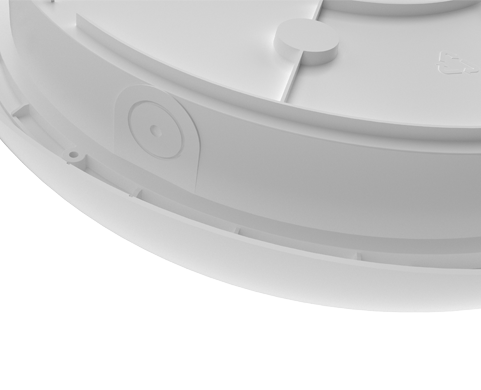

  • Conduit side entry points for surface mount cable entry
  • Pre-assembled emergency and sensor luminaires available

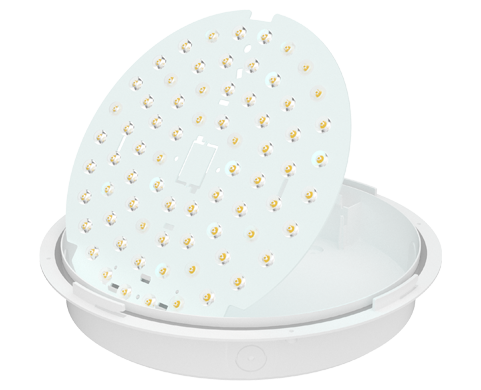

  • Hinged gear tray for quick and easy installation
  • Loop in/out push-fit terminal block for quick installation
Tri-Colour [3000K, 4000K, 6000K]5 Years Warranty1 Year On-Site Warranty (T&C`s Apply)IP65IK08Maintained emergency 3hr (Option)Microwave sensorWattage SwitchableColour Switchable
X1 BULKHEAD Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet Light Planner Buy Now
XCBHX1 CCT [3000K/4000K/6000K] + Wattage Selectable View View Buy
XCBHX1M3 [3000K/4000K/6000K] + Wattage Selectable - Emergency View Buy
XCBHX1MS [3000K/4000K/6000K] + Wattage Selectable - Microwave sensor View Buy
XCBHX1M3MS [3000K/4000K/6000K] + Wattage Selectable - Emergency - Microwave sensor View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet Light Planner Buy Now
XCBHX1 CCT [3000K/4000K/6000K] + Wattage Selectable 8W/12W/16W 1000 - 1900 130 View View Buy
XCBHX1M3 [3000K/4000K/6000K] + Wattage Selectable - Emergency 8W/12W/16W 1000 - 1900 130 View Buy
XCBHX1MS [3000K/4000K/6000K] + Wattage Selectable - Microwave sensor 8W/12W/16W 1000 - 1900 130 View Buy
XCBHX1M3MS [3000K/4000K/6000K] + Wattage Selectable - Emergency - Microwave sensor 8W/12W/16W 1000 - 1900 130 View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description C
(mm)		 Dia.
(mm)		 Data sheet Light Planner Buy Now
XCBHX1 CCT [3000K/4000K/6000K] + Wattage Selectable 85 320 View View Buy
XCBHX1M3 [3000K/4000K/6000K] + Wattage Selectable - Emergency 85 320 View Buy
XCBHX1MS [3000K/4000K/6000K] + Wattage Selectable - Microwave sensor 85 320 View Buy
XCBHX1M3MS [3000K/4000K/6000K] + Wattage Selectable - Emergency - Microwave sensor 85 320 View Buy

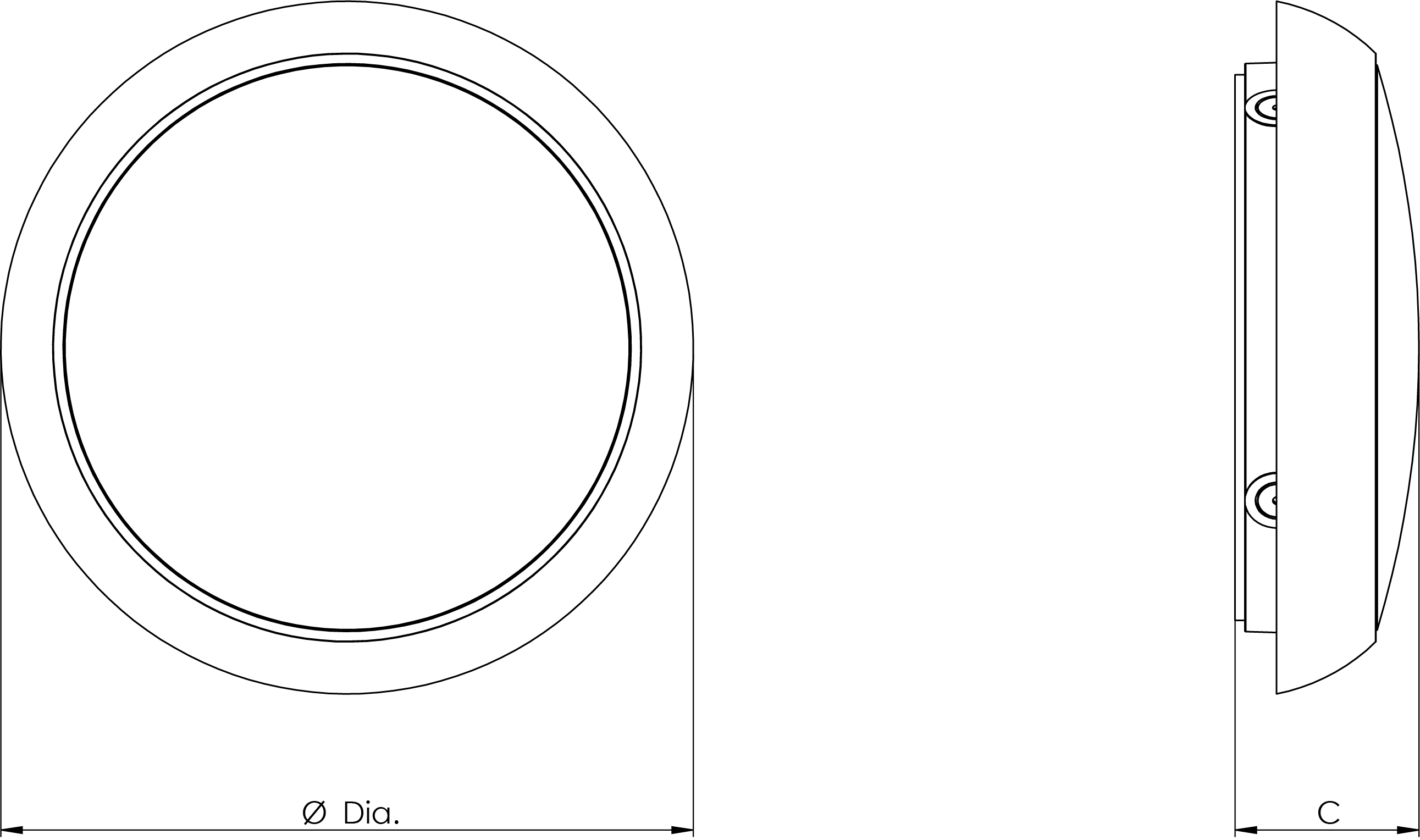

X1 BULKHEAD Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCBHX1 CCT [3000K/4000K/6000K] + Wattage Selectable Energy Class B View Visit
XCBHX1M3 [3000K/4000K/6000K] + Wattage Selectable - Emergency Energy Class B View Visit
XCBHX1MS [3000K/4000K/6000K] + Wattage Selectable - Microwave sensor Energy Class B View Visit
XCBHX1M3MS [3000K/4000K/6000K] + Wattage Selectable - Emergency - Microwave sensor Energy Class B View Visit

X1 BULKHEAD Line Drawing
