X1 WP BULKHEAD S

Colour and Wattage Selectable Square Bulkhead with a Choice of Opal or Prismatic Diffuser and Black or White Body

Where to Buy

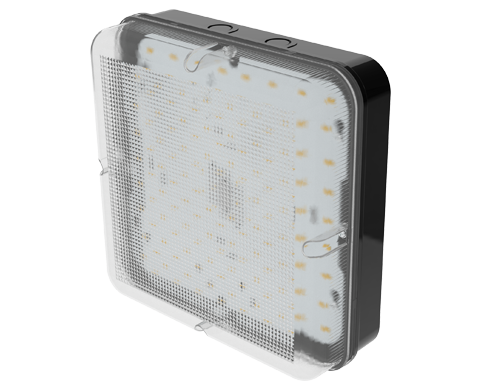

  • wp bulkhead sx1 main prismatic black

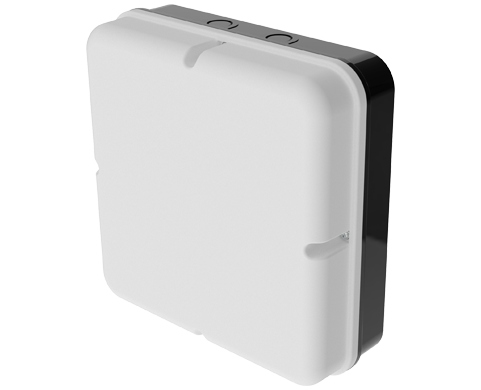

  • wp bulkhead sx1 main opal black

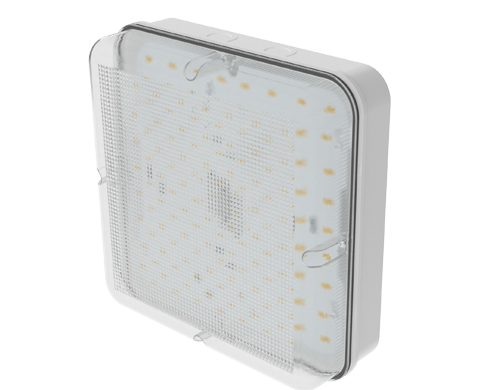

  • wp bulkhead sx1 main prismatic white

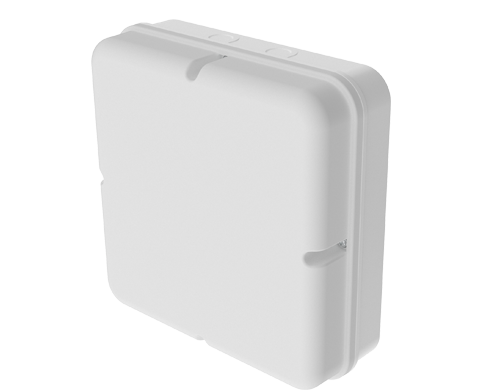

  • wp bulkhead sx1 main opal white

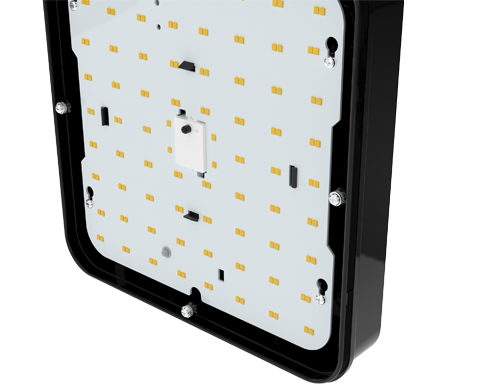

  • wp bulkhead sx1 sensor
  • wp bulkhead sx1 main prismatic black
  • wp bulkhead sx1 main opal black
  • wp bulkhead sx1 main prismatic white
  • wp bulkhead sx1 main opal white
  • wp bulkhead sx1 sensor
  • Suitable for exterior commercial and industrial applications
  • Wattage [8W,10W,12W] adjustable via 3-way selector switch
  • CCT [3000K/4000K/6000K] adjustable via 3-way selector switch
  • Opal or prismatic diffuser available
  • Polycarbonate body finished in black (RAL 9005) or white (RAL 9016)
  • Modular emergency and microwave sensor's available for quick and easy conversion of a standard fitting
  • 4-point screw fixing
  • Conduit side entry points for surface mount cable entry
  • Loop-in, loop-out push-fit terminal block for quick tool-free instalation
Tri-Colour [3000K, 4000K, 6000K]5 Years Warranty1 Year On-Site Warranty (T&C`s Apply)IP65IK08Maintained emergency 3hr (Option)Microwave sensorWattage SwitchableColour Switchable
X1 WP BULKHEAD S Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet Light Planner Buy Now
XCBHSWOX1 Opal diffuser - 3000K-6000K + Wattage Switchable - White View View Buy
XCBHSWOX1MS Opal diffuser - 3000K-6000K + Wattage Switchable - White - Microwave sensor View
XCBHSWOX1M3MS Opal diffuser - 3000K-6000K + Wattage Switchable - White - Emergency - Microwave sensor View
XCBHSWOX1M3 Opal diffuser - 3000K-6000K + Wattage Switchable - White - Emergency View Buy
XCBHSBOX1MS Opal diffuser - 3000K-6000K + Wattage Switchable - Black - Microwave sensor View
XCBHSBOX1M3 Opal diffuser - 3000K-6000K + Wattage Switchable - Black - Emergency View Buy
XCBHSBOX1M3MS Opal diffuser - 3000K-6000K + Wattage Switchable - Black - Emergency - Microwave sensor View
XCBHSBOX1 Opal diffuser - 3000K-6000K + Wattage Switchable - Black View View Buy
XCBHSBPX1M3MS Prismatic diffuser - 3000K-6000K + Wattage Switchable - Black - Emergency - Microwave sensor View
XCBHSWPX1MS Prismatic diffuser - 3000K-6000K + Wattage Switchable - White - Microwave sensor View
XCBHSWPX1 Prismatic diffuser - 3000K-6000K + Wattage Switchable - White View View Buy
XCBHSWPX1M3 Prismatic diffuser - 3000K-6000K + Wattage Switchable - White - Emergency View Buy
XCBHSBPX1M3 Prismatic diffuser - 3000K-6000K + Wattage Switchable - Black - Emergency View Buy
XCBHSBPX1MS Prismatic diffuser - 3000K-6000K + Wattage Switchable - Black - Microwave sensor View
XCBHSBPX1 Prismatic diffuser - 3000K-6000K + Wattage Switchable - Black View View Buy
XCBHSWPX1M3MS Prismatic diffuser - 3000K-6000K + Wattage Switchable - White - Emergency - Microwave sensor View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet Light Planner Buy Now
XCBHSWOX1 Opal diffuser - 3000K-6000K + Wattage Switchable - White 8W/12W/16W 1100-2000 141 View View Buy
XCBHSWOX1MS Opal diffuser - 3000K-6000K + Wattage Switchable - White - Microwave sensor 8W/12W/16W 1100-2000 141 View
XCBHSWOX1M3MS Opal diffuser - 3000K-6000K + Wattage Switchable - White - Emergency - Microwave sensor 8W/12W/16W 1100-2000 141 View
XCBHSWOX1M3 Opal diffuser - 3000K-6000K + Wattage Switchable - White - Emergency 8W/12W/16W 1100-2000 141 View Buy
XCBHSBOX1MS Opal diffuser - 3000K-6000K + Wattage Switchable - Black - Microwave sensor 8W/12W/16W 1100-2000 141 View
XCBHSBOX1M3 Opal diffuser - 3000K-6000K + Wattage Switchable - Black - Emergency 8W/12W/16W 1100-2000 141 View Buy
XCBHSBOX1M3MS Opal diffuser - 3000K-6000K + Wattage Switchable - Black - Emergency - Microwave sensor 8W/12W/16W 1100-2000 141 View
XCBHSBOX1 Opal diffuser - 3000K-6000K + Wattage Switchable - Black 8W/12W/16W 1100-2000 141 View View Buy
XCBHSBPX1M3MS Prismatic diffuser - 3000K-6000K + Wattage Switchable - Black - Emergency - Microwave sensor 8W/12W/16W 1200-2000 153 View
XCBHSWPX1MS Prismatic diffuser - 3000K-6000K + Wattage Switchable - White - Microwave sensor 8W/12W/16W 1200-2000 153 View
XCBHSWPX1 Prismatic diffuser - 3000K-6000K + Wattage Switchable - White 8W/12W/16W 1200-2000 153 View View Buy
XCBHSWPX1M3 Prismatic diffuser - 3000K-6000K + Wattage Switchable - White - Emergency 8W/12W/16W 1200-2000 153 View Buy
XCBHSBPX1M3 Prismatic diffuser - 3000K-6000K + Wattage Switchable - Black - Emergency 8W/12W/16W 1200-2000 153 View Buy
XCBHSBPX1MS Prismatic diffuser - 3000K-6000K + Wattage Switchable - Black - Microwave sensor 8W/12W/16W 1200-2000 153 View
XCBHSBPX1 Prismatic diffuser - 3000K-6000K + Wattage Switchable - Black 8W/12W/16W 1200-2000 153 View View Buy
XCBHSWPX1M3MS Prismatic diffuser - 3000K-6000K + Wattage Switchable - White - Emergency - Microwave sensor 8W/12W/16W 1200-2000 153 View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description A
(mm)		 B
(mm)		 C
(mm)		 Data sheet Light Planner Buy Now
XCBHSWOX1 Opal diffuser - 3000K-6000K + Wattage Switchable - White 252 252 92 View View Buy
XCBHSWOX1MS Opal diffuser - 3000K-6000K + Wattage Switchable - White - Microwave sensor 252 252 92 View
XCBHSWOX1M3MS Opal diffuser - 3000K-6000K + Wattage Switchable - White - Emergency - Microwave sensor 252 252 92 View
XCBHSWOX1M3 Opal diffuser - 3000K-6000K + Wattage Switchable - White - Emergency 252 252 92 View Buy
XCBHSBOX1MS Opal diffuser - 3000K-6000K + Wattage Switchable - Black - Microwave sensor 252 252 92 View
XCBHSBOX1M3 Opal diffuser - 3000K-6000K + Wattage Switchable - Black - Emergency 252 252 92 View Buy
XCBHSBOX1M3MS Opal diffuser - 3000K-6000K + Wattage Switchable - Black - Emergency - Microwave sensor 252 252 92 View
XCBHSBOX1 Opal diffuser - 3000K-6000K + Wattage Switchable - Black 252 252 92 View View Buy
XCBHSBPX1M3MS Prismatic diffuser - 3000K-6000K + Wattage Switchable - Black - Emergency - Microwave sensor 252 252 92 View
XCBHSWPX1MS Prismatic diffuser - 3000K-6000K + Wattage Switchable - White - Microwave sensor 252 252 92 View
XCBHSWPX1 Prismatic diffuser - 3000K-6000K + Wattage Switchable - White 252 252 92 View View Buy
XCBHSWPX1M3 Prismatic diffuser - 3000K-6000K + Wattage Switchable - White - Emergency 252 252 92 View Buy
XCBHSBPX1M3 Prismatic diffuser - 3000K-6000K + Wattage Switchable - Black - Emergency 252 252 92 View Buy
XCBHSBPX1MS Prismatic diffuser - 3000K-6000K + Wattage Switchable - Black - Microwave sensor 252 252 92 View
XCBHSBPX1 Prismatic diffuser - 3000K-6000K + Wattage Switchable - Black 252 252 92 View View Buy
XCBHSWPX1M3MS Prismatic diffuser - 3000K-6000K + Wattage Switchable - White - Emergency - Microwave sensor 252 252 92 View

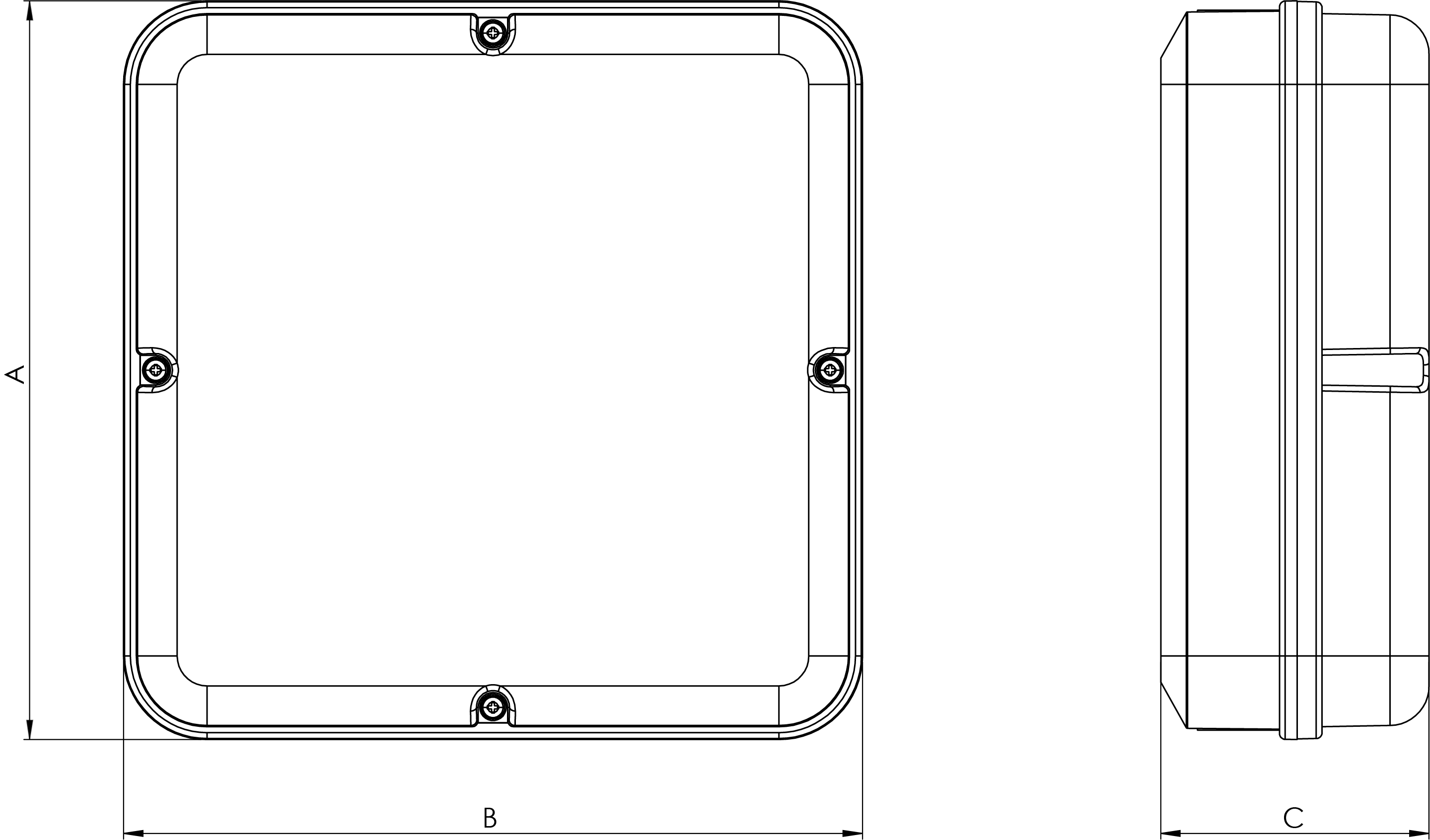

X1 WP BULKHEAD S Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCBHSWOX1 Opal diffuser - 3000K-6000K + Wattage Switchable - White Energy Class C View Visit
XCBHSWOX1MS Opal diffuser - 3000K-6000K + Wattage Switchable - White - Microwave sensor Energy Class C View Visit
XCBHSWOX1M3MS Opal diffuser - 3000K-6000K + Wattage Switchable - White - Emergency - Microwave sensor Energy Class C View Visit
XCBHSWOX1M3 Opal diffuser - 3000K-6000K + Wattage Switchable - White - Emergency Energy Class C View Visit
XCBHSBOX1MS Opal diffuser - 3000K-6000K + Wattage Switchable - Black - Microwave sensor Energy Class C View Visit
XCBHSBOX1M3 Opal diffuser - 3000K-6000K + Wattage Switchable - Black - Emergency Energy Class C View Visit
XCBHSBOX1M3MS Opal diffuser - 3000K-6000K + Wattage Switchable - Black - Emergency - Microwave sensor Energy Class C View Visit
XCBHSBOX1 Opal diffuser - 3000K-6000K + Wattage Switchable - Black Energy Class C View Visit
XCBHSBPX1M3MS Prismatic diffuser - 3000K-6000K + Wattage Switchable - Black - Emergency - Microwave sensor Energy Class C View Visit
XCBHSWPX1MS Prismatic diffuser - 3000K-6000K + Wattage Switchable - White - Microwave sensor Energy Class C View Visit
XCBHSWPX1 Prismatic diffuser - 3000K-6000K + Wattage Switchable - White Energy Class C View Visit
XCBHSWPX1M3 Prismatic diffuser - 3000K-6000K + Wattage Switchable - White - Emergency Energy Class C View Visit
XCBHSBPX1M3 Prismatic diffuser - 3000K-6000K + Wattage Switchable - Black - Emergency Energy Class C View Visit
XCBHSBPX1MS Prismatic diffuser - 3000K-6000K + Wattage Switchable - Black - Microwave sensor Energy Class C View Visit
XCBHSBPX1 Prismatic diffuser - 3000K-6000K + Wattage Switchable - Black Energy Class C View Visit
XCBHSWPX1M3MS Prismatic diffuser - 3000K-6000K + Wattage Switchable - White - Emergency - Microwave sensor Energy Class C View Visit

X1 WP BULKHEAD S Line Drawing
