MINI FLOOD

Ultra Compact High Performance Mini Flood

Where to Buy
  • xcite miniflood black selection
  • xcite miniflood black and white

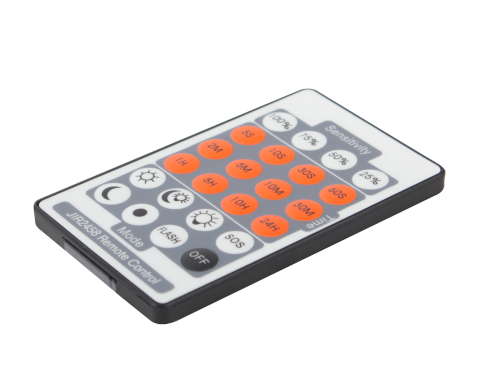

  • xcite miniflood remote control
  • xcite miniflood black and white sensor
  • xcite miniflood

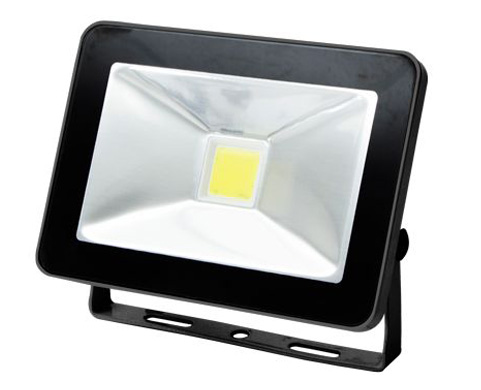

  • xcite miniflood 20w black

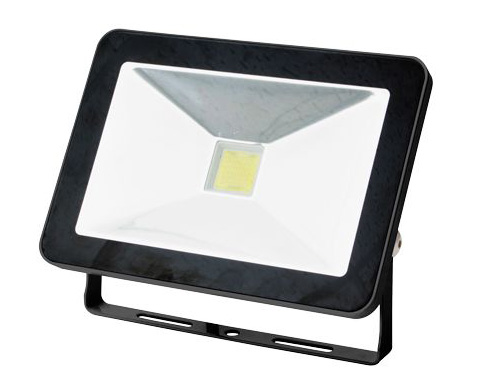

  • xcite miniflood 30w black
  • xcite miniflood black selection
  • xcite miniflood black and white
  • xcite miniflood remote control
  • xcite miniflood black and white sensor
  • xcite miniflood
  • xcite miniflood 20w black
  • xcite miniflood 30w black
  • Ideal for retrofit of existing halogen floodlights
  • Available in 3 sizes
  • Available in 3 different outputs
  • Available with microwave detector
  • Supplied with stirrup and 1m of flex for column, bracket or surface fix
  • High quality toughened safety glass
  • White or black body finish
  • Die-cast aluminium body
  • Low energy and maintenance free solution
  • Up to 75 lumens per watt efficacy
  • Available in warm white [3000K] or daylight [6000K]
3000K - WW6000K - DL30,000 Hours3 Years WarrantyIP65IK08Microwave sensor
MINI FLOOD Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":6000}
Order Code Description Data sheet Buy Now
XCMF10BDL 10W - Mini Flood Slimline - 6000K - Black View Buy
XCMF10WDL 10W - Mini Flood Slimline - 6000K - White View
XCMF20BDL 20W - Mini Flood Slimline - 6000K - Black View Buy
XCMF20WDL 20W - Mini Flood Slimline - 6000K - White View
XCMF30BDL 30W - Mini Flood Slimline - 6000K - Black View Buy
XCMF30WDL 30W - Mini Flood Slimline - 6000K - White View Buy
XCMF10BWW 10W - Mini Flood Slimline - 3000K - Black View
XCMF20BWW 20W - Mini Flood Slimline - 3000K - Black View
XCMF30BWW 30W - Mini Flood Slimline - 3000K - Black View
XCMF10BDLP 10W - Mini Flood Slimline - Microwave Sensor - 6000K - Black View
XCMF10WDLP 10W - Mini Flood Slimline - Microwave Sensor - 6000K - White View Buy
XCMF20BDLP 20W - Mini Flood Slimline - Microwave Sensor - 6000K - Black View
XCMF20WDLP 20W - Mini Flood Slimline - Microwave Sensor - 6000K - White View
XCMF30BDLP 30W - Mini Flood Slimline - Microwave Sensor - 6000K - Black View Buy
XCMF30WDLP 30W - Mini Flood Slimline - Microwave Sensor - 6000K - White View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":6000}
Order Code Description W lm lm/W Data sheet Buy Now
XCMF10BDL 10W - Mini Flood Slimline - 6000K - Black 10 600 60 View Buy
XCMF10WDL 10W - Mini Flood Slimline - 6000K - White 10 600 60 View
XCMF20BDL 20W - Mini Flood Slimline - 6000K - Black 20 1500 75 View Buy
XCMF20WDL 20W - Mini Flood Slimline - 6000K - White 20 1500 75 View
XCMF30BDL 30W - Mini Flood Slimline - 6000K - Black 30 2000 67 View Buy
XCMF30WDL 30W - Mini Flood Slimline - 6000K - White 30 2000 67 View Buy
XCMF10BWW 10W - Mini Flood Slimline - 3000K - Black 10 500 50 View
XCMF20BWW 20W - Mini Flood Slimline - 3000K - Black 20 1400 70 View
XCMF30BWW 30W - Mini Flood Slimline - 3000K - Black 30 1800 60 View
XCMF10BDLP 10W - Mini Flood Slimline - Microwave Sensor - 6000K - Black 10 600 60 View
XCMF10WDLP 10W - Mini Flood Slimline - Microwave Sensor - 6000K - White 10 600 60 View Buy
XCMF20BDLP 20W - Mini Flood Slimline - Microwave Sensor - 6000K - Black 20 1500 75 View
XCMF20WDLP 20W - Mini Flood Slimline - Microwave Sensor - 6000K - White 20 1500 75 View
XCMF30BDLP 30W - Mini Flood Slimline - Microwave Sensor - 6000K - Black 30 2000 67 View Buy
XCMF30WDLP 30W - Mini Flood Slimline - Microwave Sensor - 6000K - White 30 2000 67 View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":6000}
Order Code Description A
(mm)		 B
(mm)		 C
(mm)		 Data sheet Buy Now
XCMF10BDL 10W - Mini Flood Slimline - 6000K - Black 130 90 35 View Buy
XCMF10WDL 10W - Mini Flood Slimline - 6000K - White 130 90 35 View
XCMF20BDL 20W - Mini Flood Slimline - 6000K - Black 180 126 35 View Buy
XCMF20WDL 20W - Mini Flood Slimline - 6000K - White 180 126 35 View
XCMF30BDL 30W - Mini Flood Slimline - 6000K - Black 210 147 35 View Buy
XCMF30WDL 30W - Mini Flood Slimline - 6000K - White 210 147 35 View Buy
XCMF10BWW 10W - Mini Flood Slimline - 3000K - Black 130 90 35 View
XCMF20BWW 20W - Mini Flood Slimline - 3000K - Black 180 126 35 View
XCMF30BWW 30W - Mini Flood Slimline - 3000K - Black 210 147 35 View
XCMF10BDLP 10W - Mini Flood Slimline - Microwave Sensor - 6000K - Black 130 90 35 View
XCMF10WDLP 10W - Mini Flood Slimline - Microwave Sensor - 6000K - White 130 90 35 View Buy
XCMF20BDLP 20W - Mini Flood Slimline - Microwave Sensor - 6000K - Black 180 126 35 View
XCMF20WDLP 20W - Mini Flood Slimline - Microwave Sensor - 6000K - White 180 126 35 View
XCMF30BDLP 30W - Mini Flood Slimline - Microwave Sensor - 6000K - Black 210 147 35 View Buy
XCMF30WDLP 30W - Mini Flood Slimline - Microwave Sensor - 6000K - White 210 147 35 View
MINI FLOOD Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":6000}
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCMF10BDL 10W - Mini Flood Slimline - 6000K - Black Energy Class D View Visit
XCMF10WDL 10W - Mini Flood Slimline - 6000K - White Energy Class D View Visit
XCMF20BDL 20W - Mini Flood Slimline - 6000K - Black Energy Class E View Visit
XCMF20WDL 20W - Mini Flood Slimline - 6000K - White Energy Class E View Visit
XCMF30BDL 30W - Mini Flood Slimline - 6000K - Black Energy Class E View Visit
XCMF30WDL 30W - Mini Flood Slimline - 6000K - White Energy Class E View Visit
XCMF10BWW 10W - Mini Flood Slimline - 3000K - Black Energy Class E View Visit
XCMF20BWW 20W - Mini Flood Slimline - 3000K - Black Energy Class E View Visit
XCMF30BWW 30W - Mini Flood Slimline - 3000K - Black Energy Class D View Visit
XCMF10BDLP 10W - Mini Flood Slimline - Microwave Sensor - 6000K - Black Energy Class D View Visit
XCMF10WDLP 10W - Mini Flood Slimline - Microwave Sensor - 6000K - White Energy Class D View Visit
XCMF20BDLP 20W - Mini Flood Slimline - Microwave Sensor - 6000K - Black Energy Class E View Visit
XCMF20WDLP 20W - Mini Flood Slimline - Microwave Sensor - 6000K - White Energy Class E View Visit
XCMF30BDLP 30W - Mini Flood Slimline - Microwave Sensor - 6000K - Black Energy Class E View Visit
XCMF30WDLP 30W - Mini Flood Slimline - Microwave Sensor - 6000K - White Energy Class E View Visit

MINI FLOOD Line Drawing
